Shark HE Series User Manual

96-723, 97-715, 97-716, 97-717 • REV. 2/04
5
PRESSURE WASHER
OPERATOR’S MANUAL

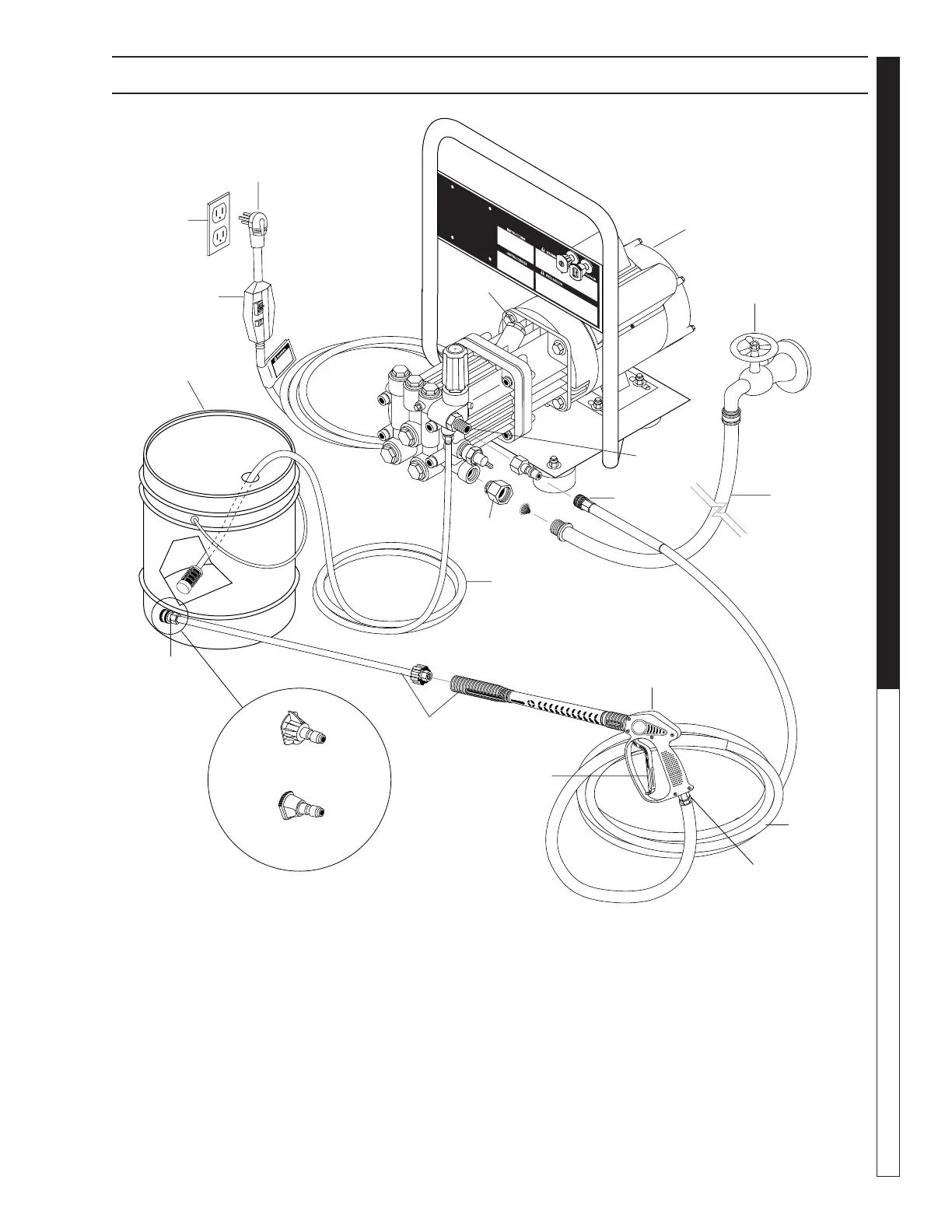

COMPONENT IDENTIFICATION
Plug
(120V)
Power
Supply
Pressure Nozzle
Brass Soap
Nozzle
Water
Faucet
Water Supply
Hose
(not included)
Trigger
High
Pressure
Hose
Detergent Bucket
(not included)
Detergent
Pick-up Tube
Oil Dip
Stick
Spray
Gun
Quick Coupler
Nozzle
Quick
Coupler
Inlet
Connector
Discharge
Nipple
GFCI
Electric
Motor
Wand
Detergent Injector - Allows you to siphon and mix de-
tergents.
High Pressure Hose - Connect one end to water pump
discharge nipple and the other end to spray gun.
Nozzle Quick Coupler -
Pump - Develops high pressure.
Spray Gun - Controls the application of water and de-
tergent onto cleaning surface with trigger device. In-
cludes safety latch.
Swivel Connector - Allows free range of movement to
avoid coiling hoses.
Wand - Must be connected to the spray gun.
Note: If trigger on spray gun is released for more
than 2 minutes, water will leak from valve. Warm
water will discharge from pump protector onto floor.
This system prevents internal pump damage.
Swivel
Connector
