13
27DV-S100
27DV-CS10

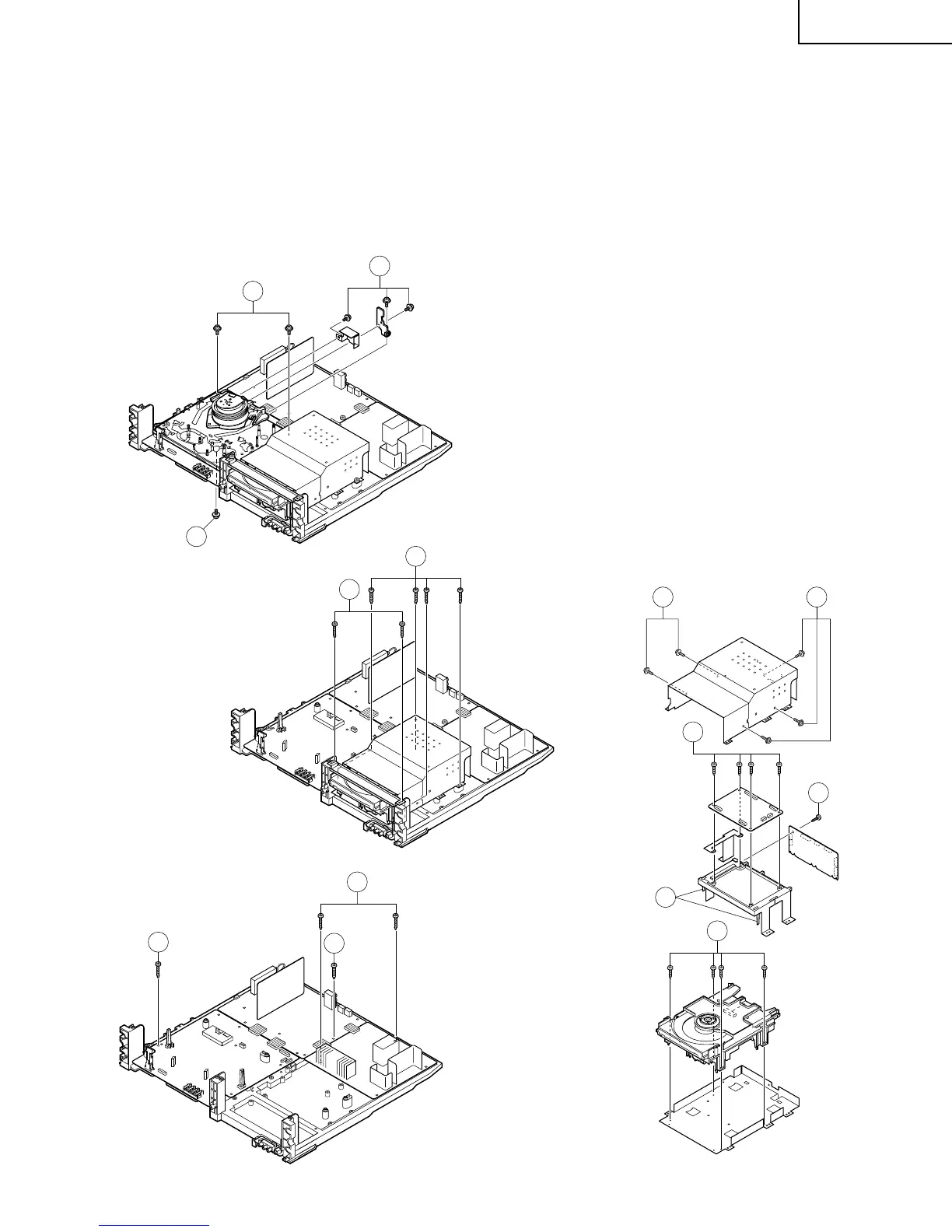

7. Remove the 2 mechanism chassis bracket fixing screws and the head amplifier shielding case fixing screw.
8. Remove the 3 mechanism chassis fixing screws and detach the mechanism chassis from the main PWB.
9. Remove the 2 DVD mechanism unit reinforcement fixing screws and detach this reinforcement.
10.Remove the 4 DVD mechanism unit fixing screws and detach the DVD mechanism unit.
11.Remove the 1 main PWB fixing screws and detach the main PWB.
12.Remove the 1 TV signal PWB fixing screw and detach the TV signal PWB.
13.Remove the 2 TV power PWB fixing screws and detach the TV power PWB.
» DVD section
14.Remove the 5 DVD shielding case fixing screws and
detach the DVD shielding case.
15.Undo the 4 hooks from the chassis for the DVD main
and sub PWBs, and detach this chassis.
16.Remove the 4 DVD main PWB fixing screws and
detach the DVD main PWB.
17.Remove the DVD sub PWB fixing screw, undo the hook
and detach the DVD sub PWB.
18.Finally remove the 4 DVD mechanism fixing screws
and detach the DVD mechanism.
14 14
16
17
18
15
8
8
7
10
9
13
12
11
To Next Page
