12
27DV-S100
27DV-CS10

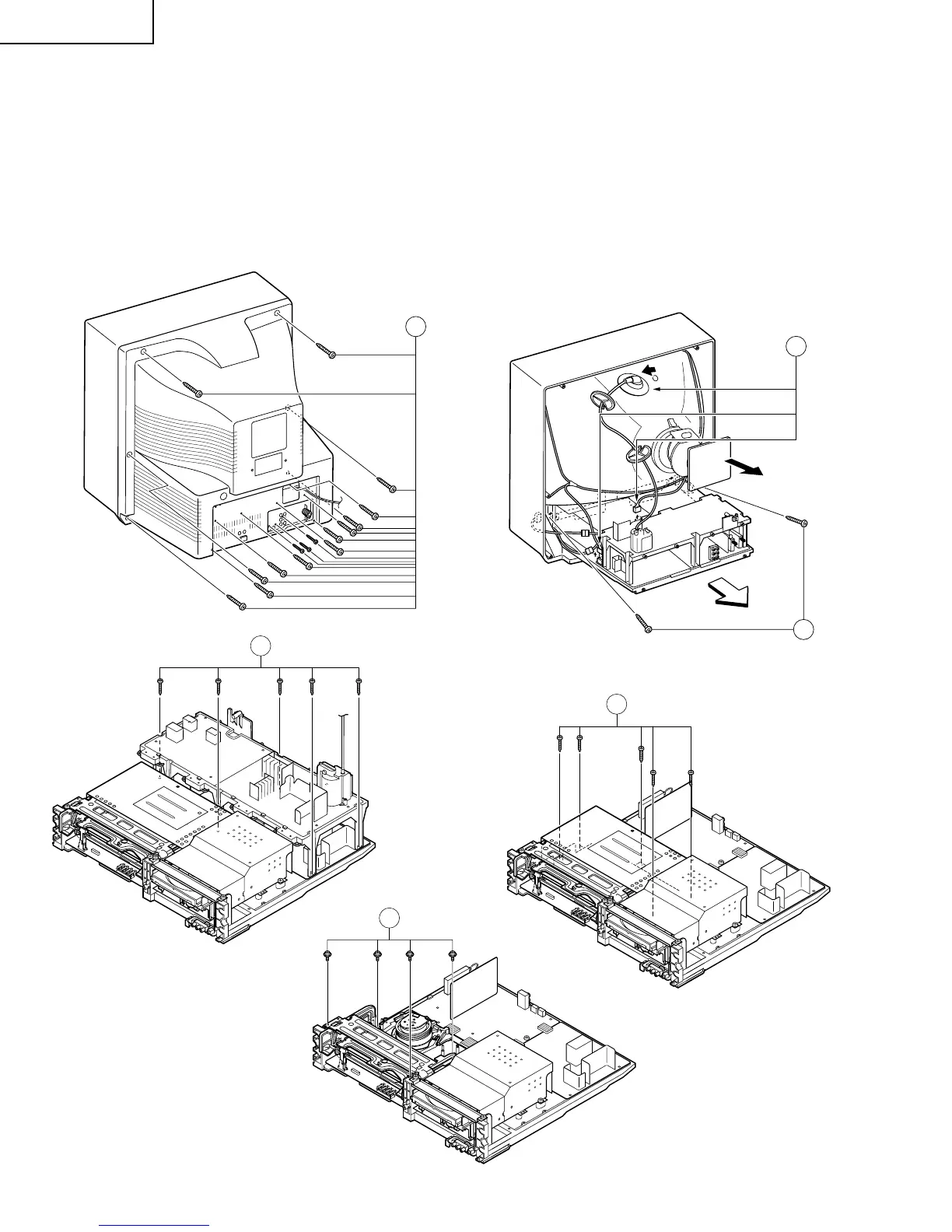

DISASSEMBLY AND REASSEMBLY
1. Remove the 16 rear cover fixing screws and detach the rear cover.
2. Take out the anode cap, CRT PWB, connectors OO, K and M, coating earth, speaker connectors SE, connector
DC and others.
3. Remove the 2 main chassis fixing screws and take out the main chassis.
4. Remove the 5 fixing screws from the sub-chassis for the VCR power/deflection PWB and detach this sub-chassis.
5. Remove the 5 VCR shielding case fixing screws and detach the shielding case.
6. Remove the 4 cassette housing fixing screws and detach the cassette housing.
1
M
2
3
K
M
DC
DC
SE
OO
OO
4
5
6
To Next Page
