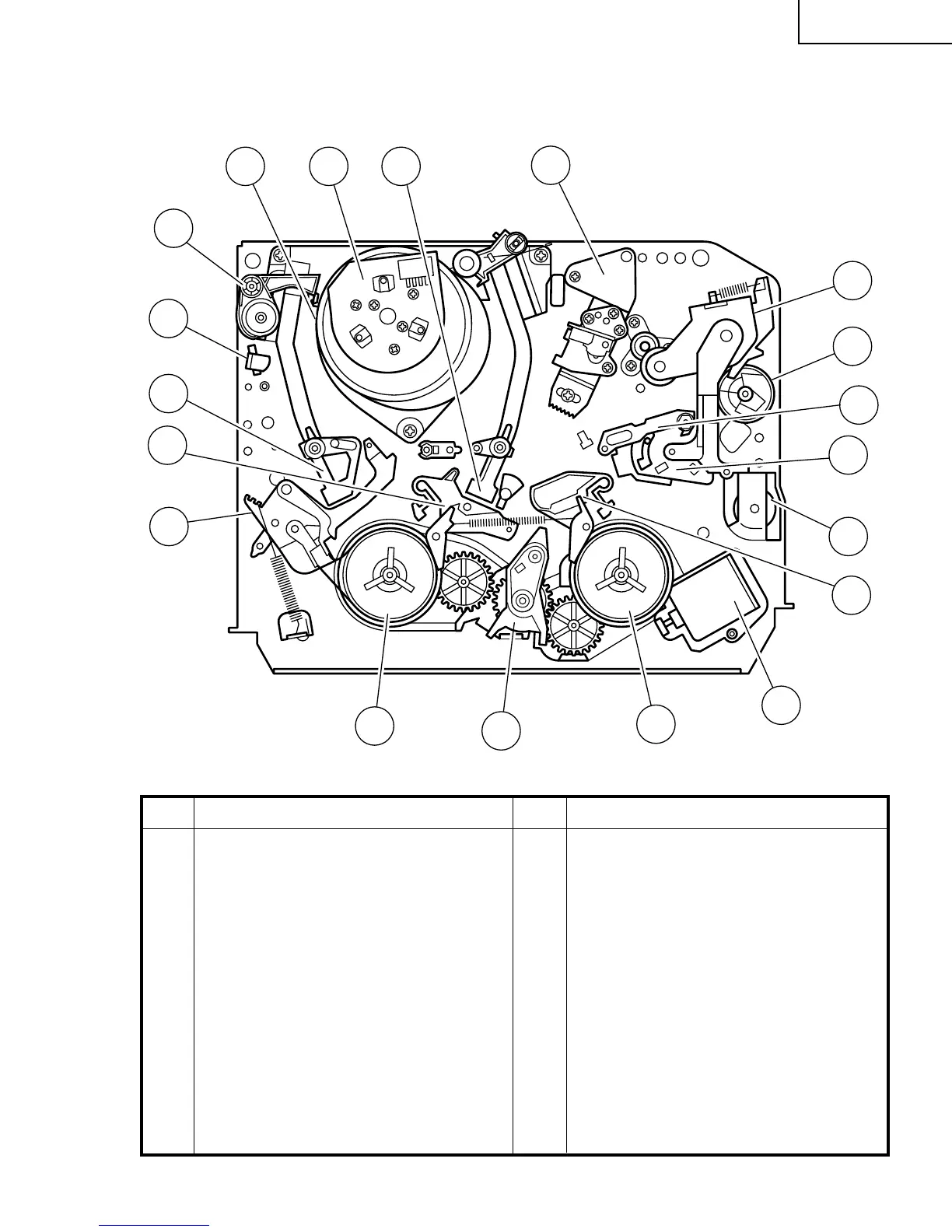

FUNCTION OF MAJOR MECHANICAL PARTS (TOP VIEW)
No. Function
No. Function
1 Full erase head
2 Supply pole base ass’y
3 Tension arm ass’y
4 Idler wheel ass’y
5 Pinch drive lever ass’y
6 Supply reel disk
7 Supply main brake ass’y
8 Take-up main brake ass’y
9 Pinch drive cam
10 A/C Head ass’y
11 Reverse guide lever ass’y
12 Casecon drive gear
13 Take-up reel disk
14 Pinch roller lever ass’y
15 Drum ass’y
16 Loading motor
17 Drum motor
18 Take-up pole base ass’y
19 Impedance roller ass’y
17
10
11
5
9
14
12
8
16
13
4
6
2
7
3
1
1815
19
