ADJUSTMENT, REPLACEMENT AND ASSEMBLY OF
MECHANICAL UNITS
The explanation given below relates to the on-site general service (field service) but it does not relates to the adjustment
and replacement which need high-grade equipment, jigs and skill. For example, the drum assembling, replacement
and adjustment service must be performed by the person who have finished the technical courses.

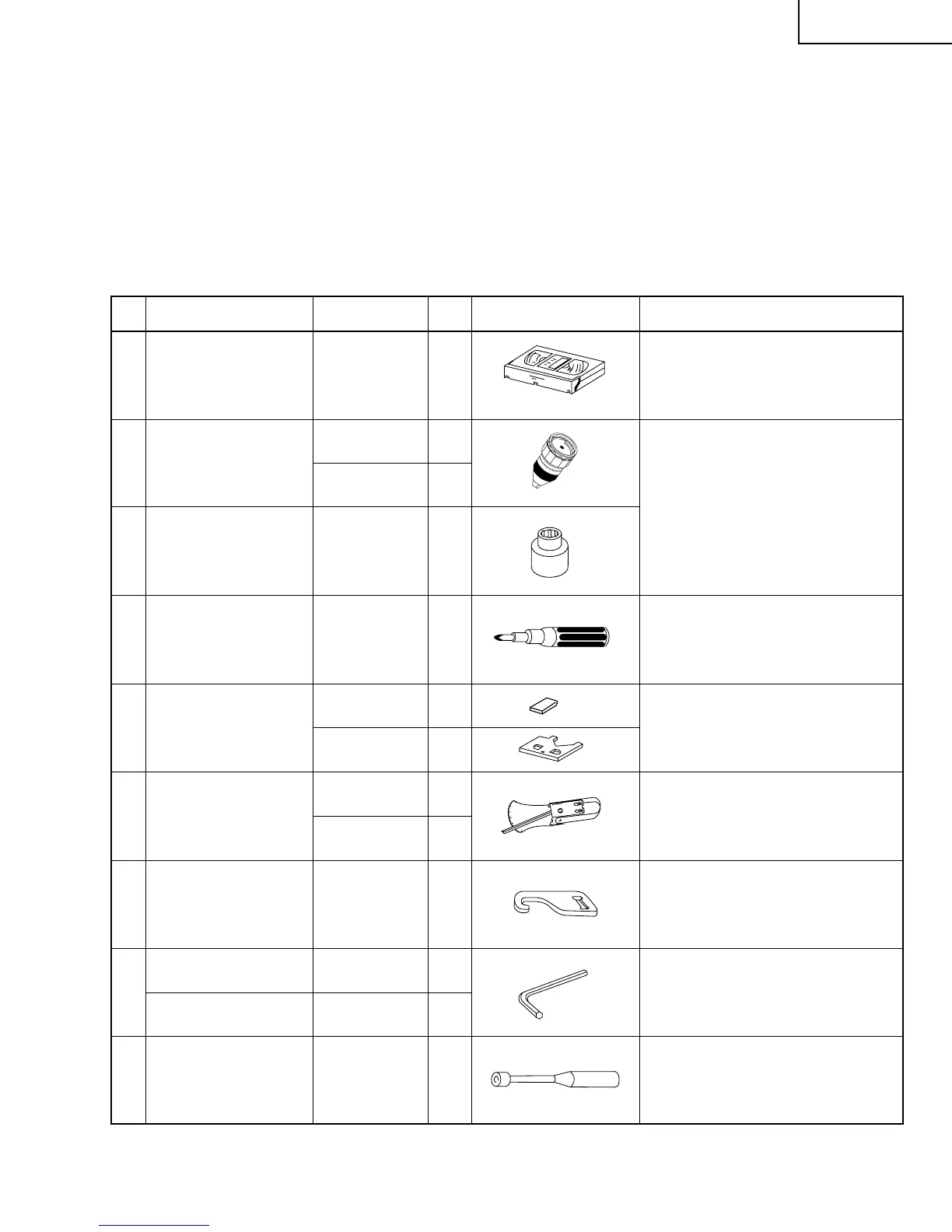

MECHANISM CONFIRMATION ADJUSTMENT JIG
So as to perform completely the mechanism adjustment prepare the following special jigs. So as to maintain the initial
performance of the machine the maintenance and check are necessary. Utmost care must be taken so that the tape is
not damaged. If adjustment needs any jig, be sure to sue the required jig.
1. Torque Cassette Meter JiGVHT-063 CZ
JiGTG0090 CM
2. Torque Gauge
JiGTG1200 CN
3. Torque Gauge Head JiGTH0006 AW
4. Torque Driver JiGTD1200 CB
Master Plane Jig and JiGRH0002 BR
5. Reel Disk Height
Adjusting Jig JiGMP0001 BY
JiGSG2000 BS
6. Tension Gauge
JiGSG0300 BF
7.
Pinch pressing force
JiGTDP003 BK
measuring jig
Hex Wrench (1.2mm) JiGHW0012 AE
8.
Hex Wrench (1.5mm) JiGHW015 AE
9.
Reverse guide height
JiGDRiVER11055
AR
adjusting box driver
This cassette torque meter is used
for checking and adjusting the
torque of take-up for measuring
tape back tension.
These Jigs are used for checking
and adjusting the torque of take-
up and supply reel disks.
When fixing an y part to the
threaded hole using resin with
screw, use the jig. (Specified torque
5 kg)
These Jigs are used for checking
and adjusting the reel disk height.
There are two gauges used for the
tension measurements, 300 g and
2.o kg.
This Jig is used with the tension
gauge. Rotary transformer clear-
ance adjusting jig.
This Jigs are used for loosening or
tightening special hexagon type
screws.
This Jig is used for height adjust-
ment of the reverse guide (for
reverse guide height adjustment).
To Next Page
