26
27DV-S100
27DV-CS10

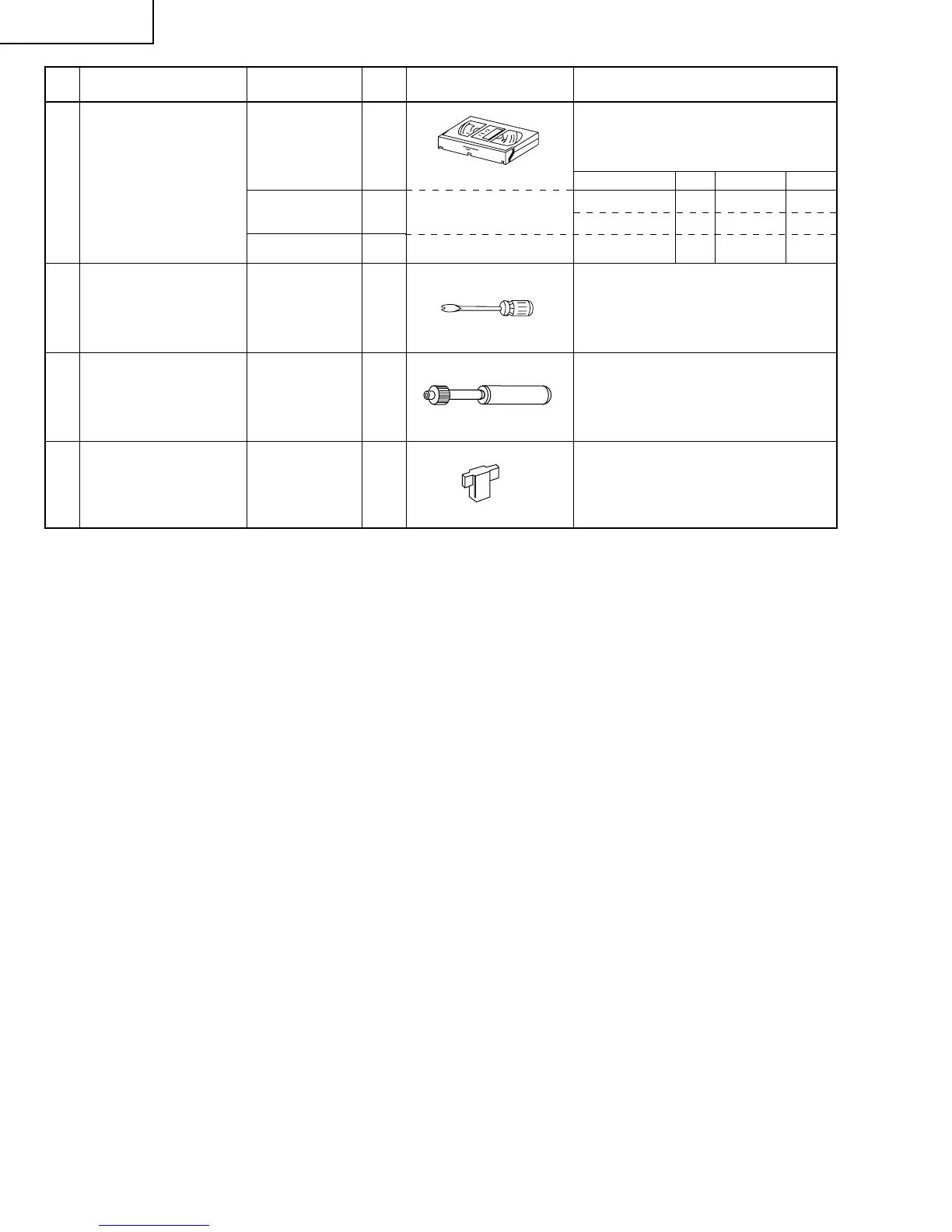

No. Jig Item Part No. Code Configuration Remarks
10. Alignment Tape
VROATSV CD
VROEBZCS
11.
Guide roller height
JiGDRiVERH-4 AP
adjustment drive
These tapes are especially used for
electrical fine adjustment.
For X value adjustment.
Video Audio Hi-Fi Audio Track
525 Monoscope 7k — 58µm
NTSC Color Bar 1k — 58µm
525 Monoscope 1k — 19µm
This screwdriver is used for adjust-
ing the guide roller height.
12.
X value adjustment
JiGDRiVER-6
BM
gear type screw driver
13.
Reverse Guide Height
JiGRVGH-F18
BU
Adjusting
This Jig is used for height
adjustment of the reverse guide.
To Next Page
