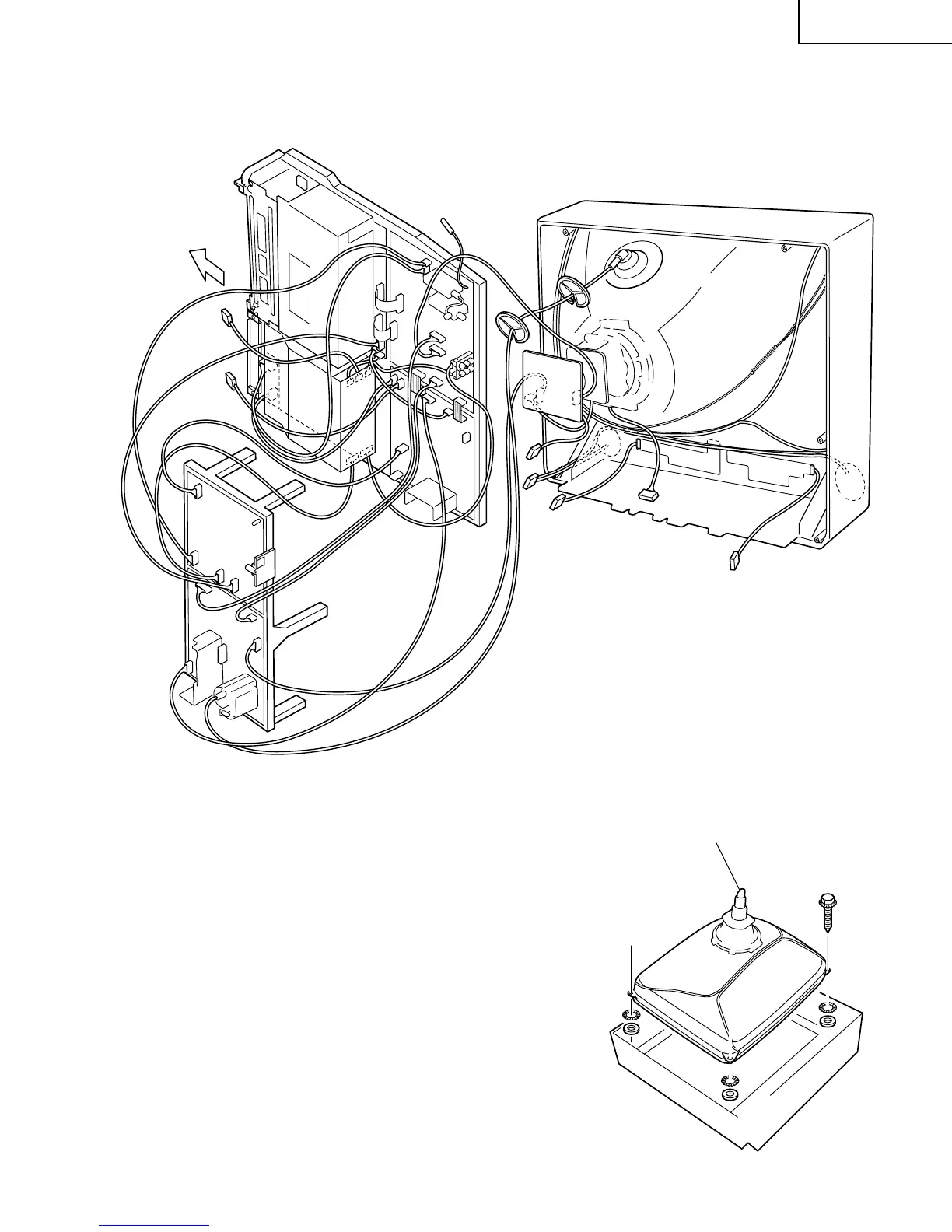

For servicing the TV’s component units, undo the lead dressing holders and place the main chassis upright as shown
below. Connect necessary leads for quick servicing.
~
~
~
~
Get the air vent tip cracked to let in air.
Remove the four screws from the cathode ray tube, and detach
the cathode ray tube (weighing 35 kg or so).
» The cathode ray tube has a high-tension static charge and a
high vacuum. Handle it with enough care on the following
occasions.
For disposal of the cathode ray tube
1) The high-voltage electrode, which is covered with the anode
cap atop the cathode ray tube, may have a high-tension static
charge. Before detaching the anode cap, be sure to get this
electrode fully discharged.
2) The cathode ray tube has a high vacuum inside. Crack the tip
of the air vent on the neck socket of the cathode ray tube in
order to get the tube out of vacuum.
