AL-2040CS EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 1

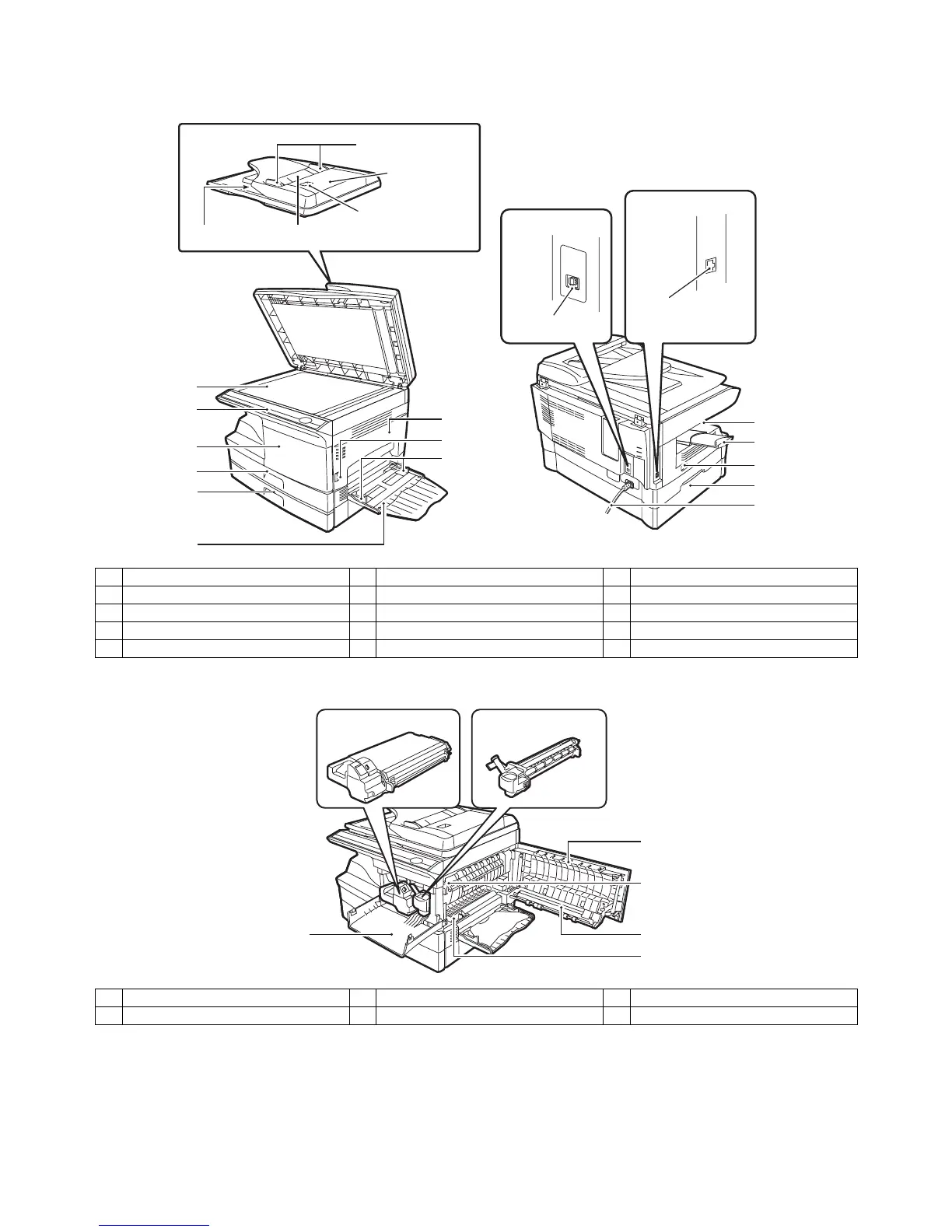

[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES
1. Appearance
2. Internal
1 Document glass 2 Operation panel 3 Front cover
4 Paper tray 1 5 Paper tray 2 (AL-2040CS only) 6 Multi-bypass tray
7 Side cover 8 Side cover open button 9 Bypass tray paper guides
10 Paper output tray 11 Paper output tray extension 12 Power switch
13 Handle 14 Power cord
1 Front cover 2 Side cover 3 Fusing unit release lever
4 Transfer charger 5 Charger cleaner
LAN connector
(AL-2040CS only)
Interface
USB connector
Interface
SPF
Exit area
2
3
4
5
1
7
9
8
10
11
Original guide
Document feeder tray
Peep hole
Document
feeder cover
12
13
14
6
TD cartridge Drum cartridge
3
4
5
2
1
