AL-2040CS DISASSEMBLY AND ASSEMBLY 8 - 15

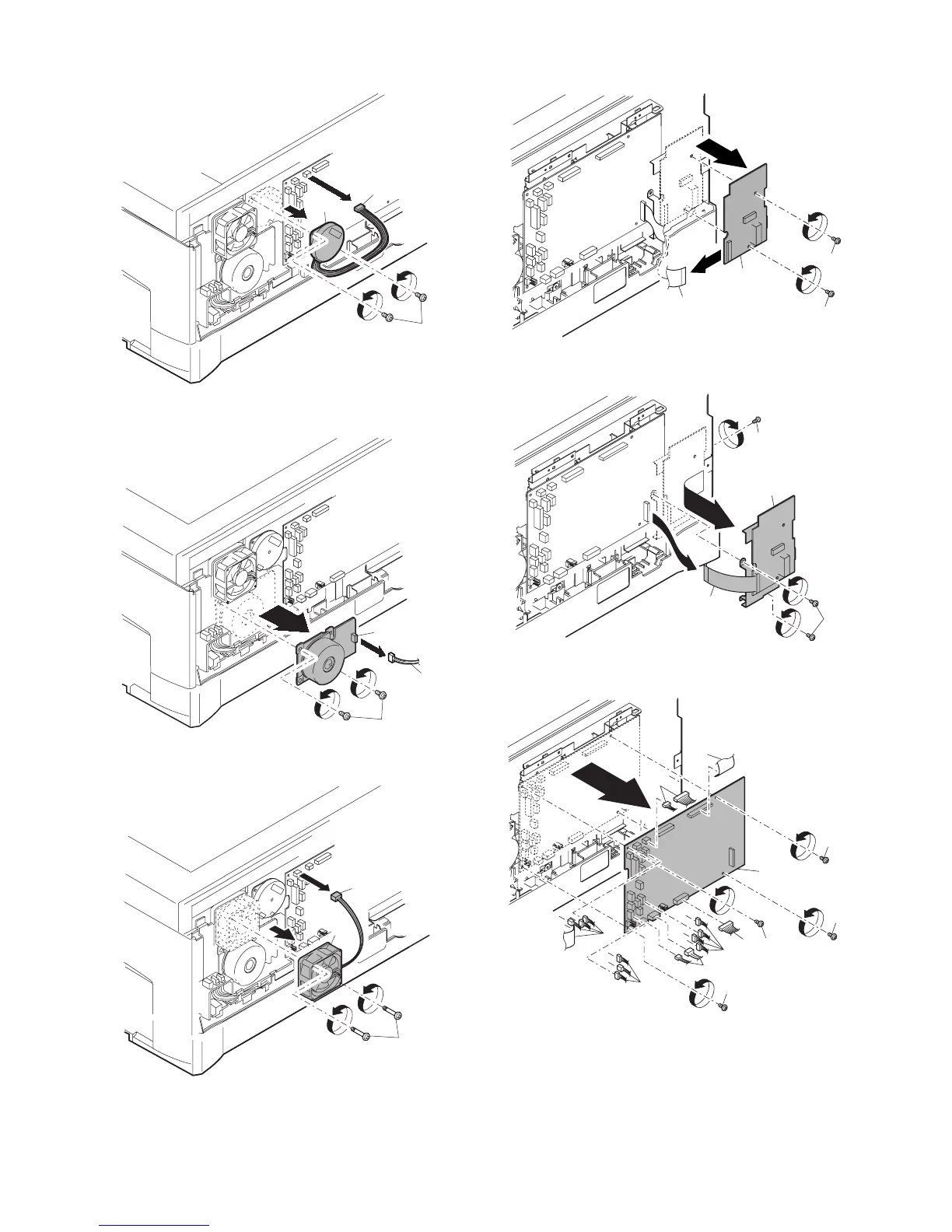

2) Disconnect the connector.
3) Remove two screws, and remove the scanner motor.
4) Remove two screws and one harness, and remove the main
motor.
5) Remove two screws and one connector, and remove the
exhaust fan motor.
6) Disconnect the connector.
7) Remove the two screws, and remove the NIC PWB.
8) Disconnect the connector.
9) Remove the three screws, and remove the NIC PWB unit.
10) Disconnect the connectors.
11) Remove the five screws, and remove the MCU PWB.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
1)
2)
3)
1)
2)
3)
1)
2)
3)
2)
2)
3)
1)
3)
3)
1)
2)
2)
2)
3)
2)
2)
2)
1)
1)
1)
1)
1)
1)
