Sharp AL-2040CS

AL-2040CS DISASSEMBLY AND ASSEMBLY 8 - 12

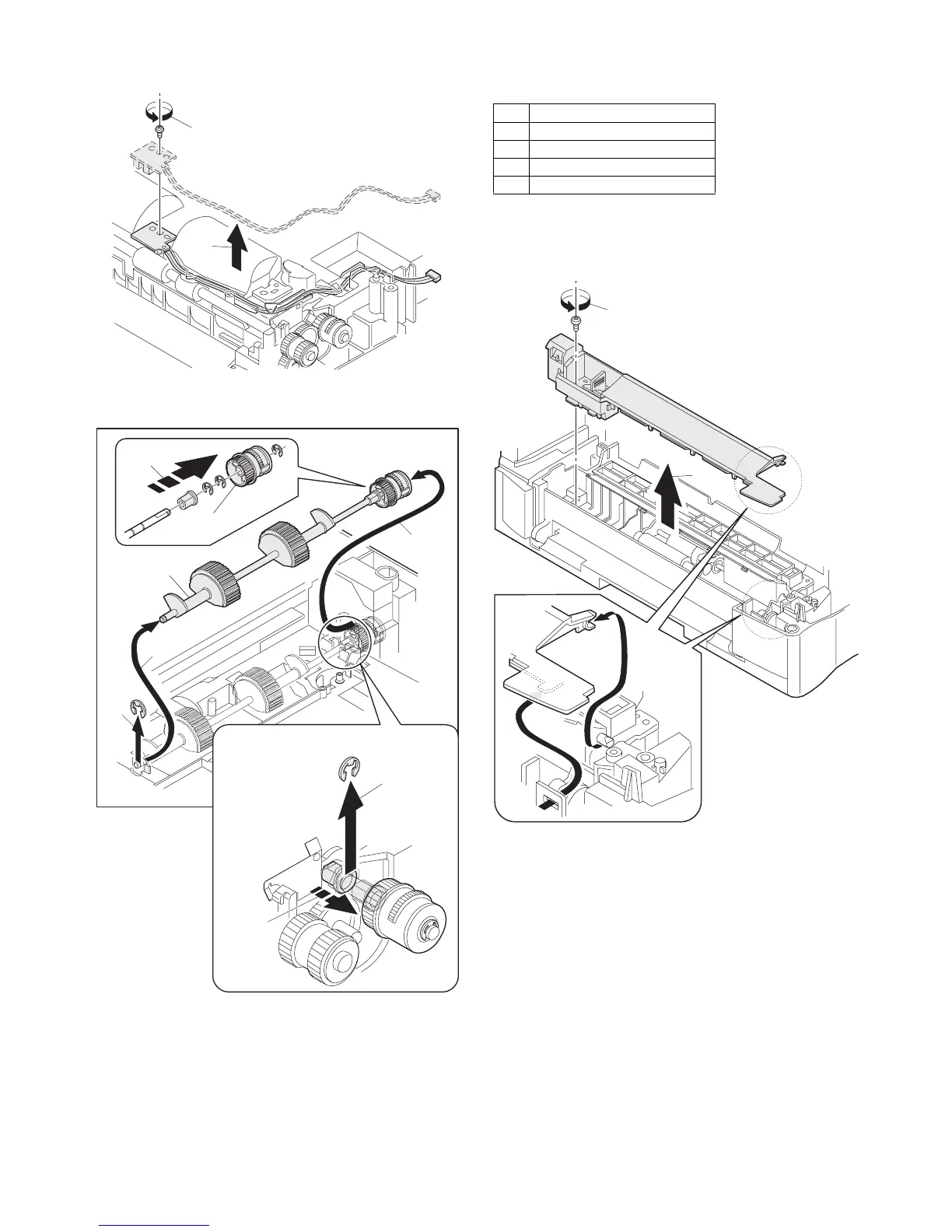

24) Remove the screw and the connector, and remove the PPD1
sensor PWB.
25) Remove two E-rings and remove the paper feed roller.
26) Remove three E-rings and remove the clutch unit.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
6. Manual paper feed section
A. List
B. Disassembly procedure
Multi unit
1) Remove the screw and remove the multi upper cover.
1)
2)
4)
5)
1)
2)
3)
4)
Back
Front
Clutch unit
Paper feed
roller
No. Part name Ref.
1 Manual transport roller
2 Cassette detection switch
3 PPD1 sensor PWB
4 Side door detection unit
2)
1)
