AL-2020/2035/2040/2050/2060 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 6
B. AL-2050/2060
11
12
8
1
4
2
5
10
9
3
6
7

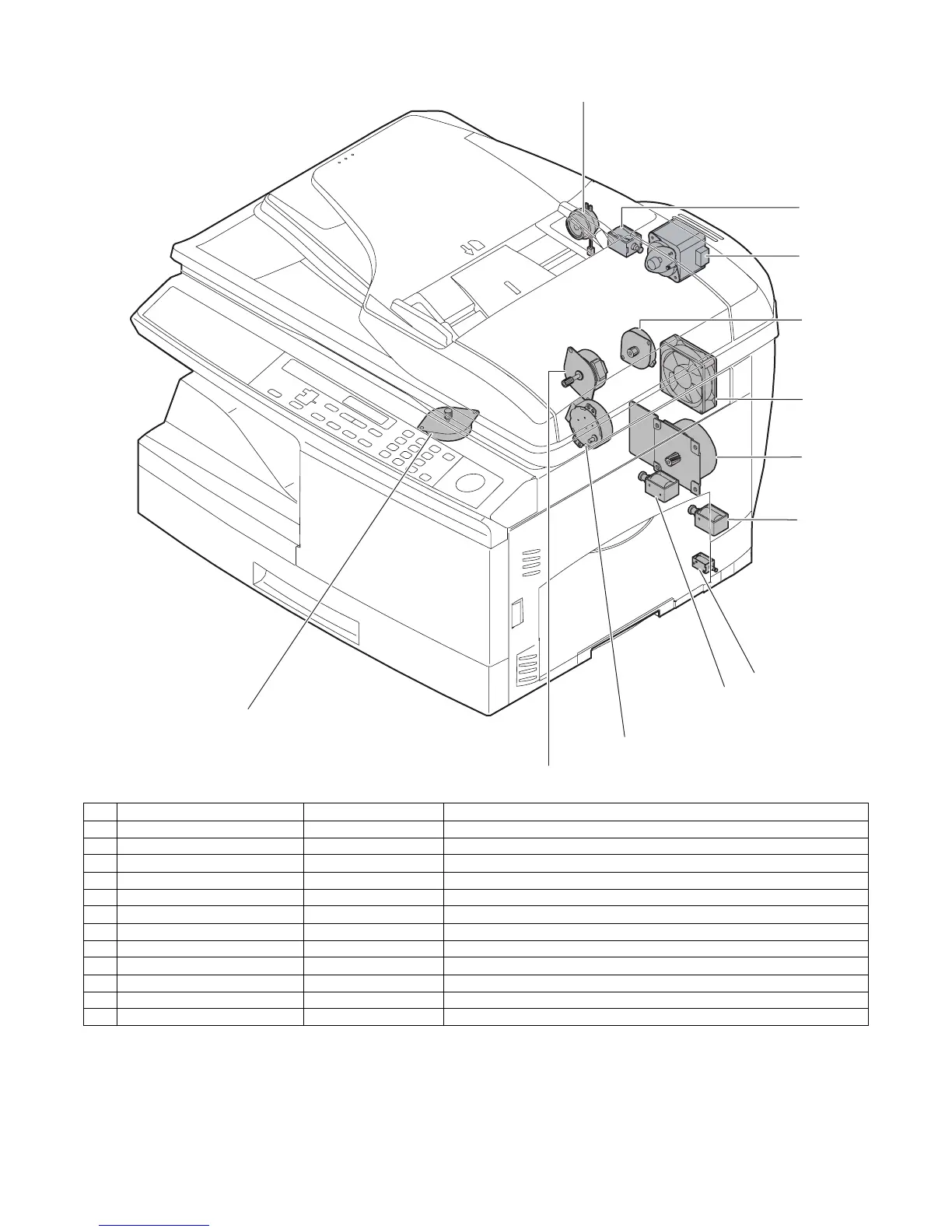

No. Name Control signal Function / Operation
1 Main motor MM Drives the copier.
2 Scanner motor MRMT Drives the optical mirror base (scanner unit).
3 Toner motor TM Supplies toner.
4 Cooling fan motor VFM Ventilate the fuser section.
5 Resist roller solenoid RRS Resist roller rotation control solenoid
6 Paper feed solenoid CPFS1 Cassette Paper feed solenoid 1
7 Multi paper feed solenoid MPFS Multi manual pages feed solenoid
8 Drive motor SPMT Drives the RSPF.
9 Duplex motor DMT Devices the duplex paper transport section
10 Shifter motor SFTM Drives the shifter.
11 Reverse clutch SRVC Reverses the rotating direction of the roller.
12 Paper feed solenoid (RSPF) SPUS Feeds paper.
