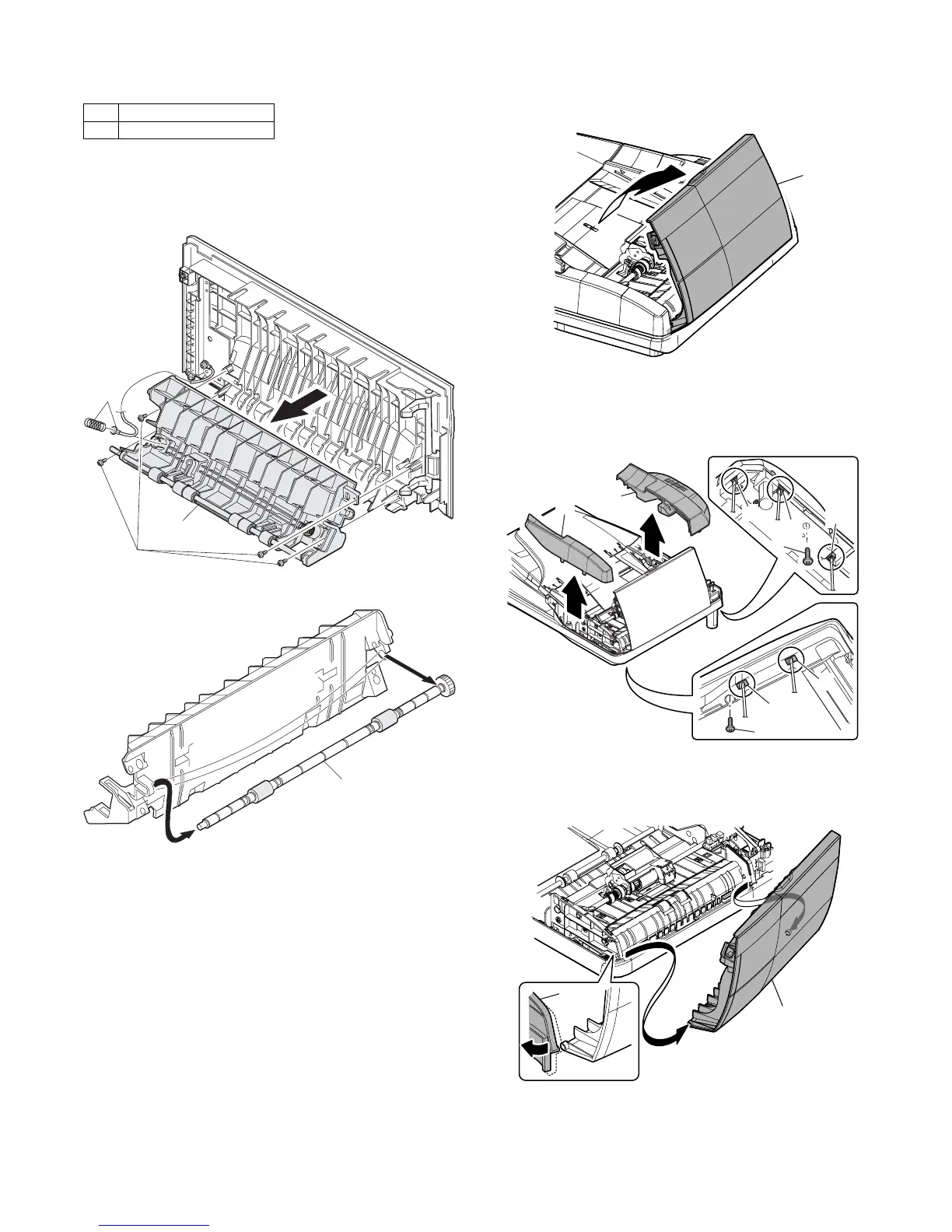

AL-2030/2040CS/2050CS DISASSEMBLY AND ASSEMBLY 8 - 19
10. Reverse roller section
A. List
B. Disassembly procedure
1) Remove four screws.
2) Remove the spring, and the earth wire.
3) Remove the reverse unit.
4) Bend the reverse roller and remove it.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
11. RSPF section (AL-2050/2060)
A. Front cabinet, rear cabinet
(1) Open the upper door unit.
(2) Front cabinet and rear cabinet removal
1) Remove two screws.
2) Disengage the five pawls.
3) Remove the front cabinet and the rear cabinet.
B. Upper door unit
1) Release the shaft on the front side.
2) Remove the upper door unit.
No. Part name Ref.
1 Reverse roller
1
2
3
1
1
1
2
2
2
2
2
1
3
3
1
2
