AL-2030/2040CS/2050CS DISASSEMBLY AND ASSEMBLY 8 - 6

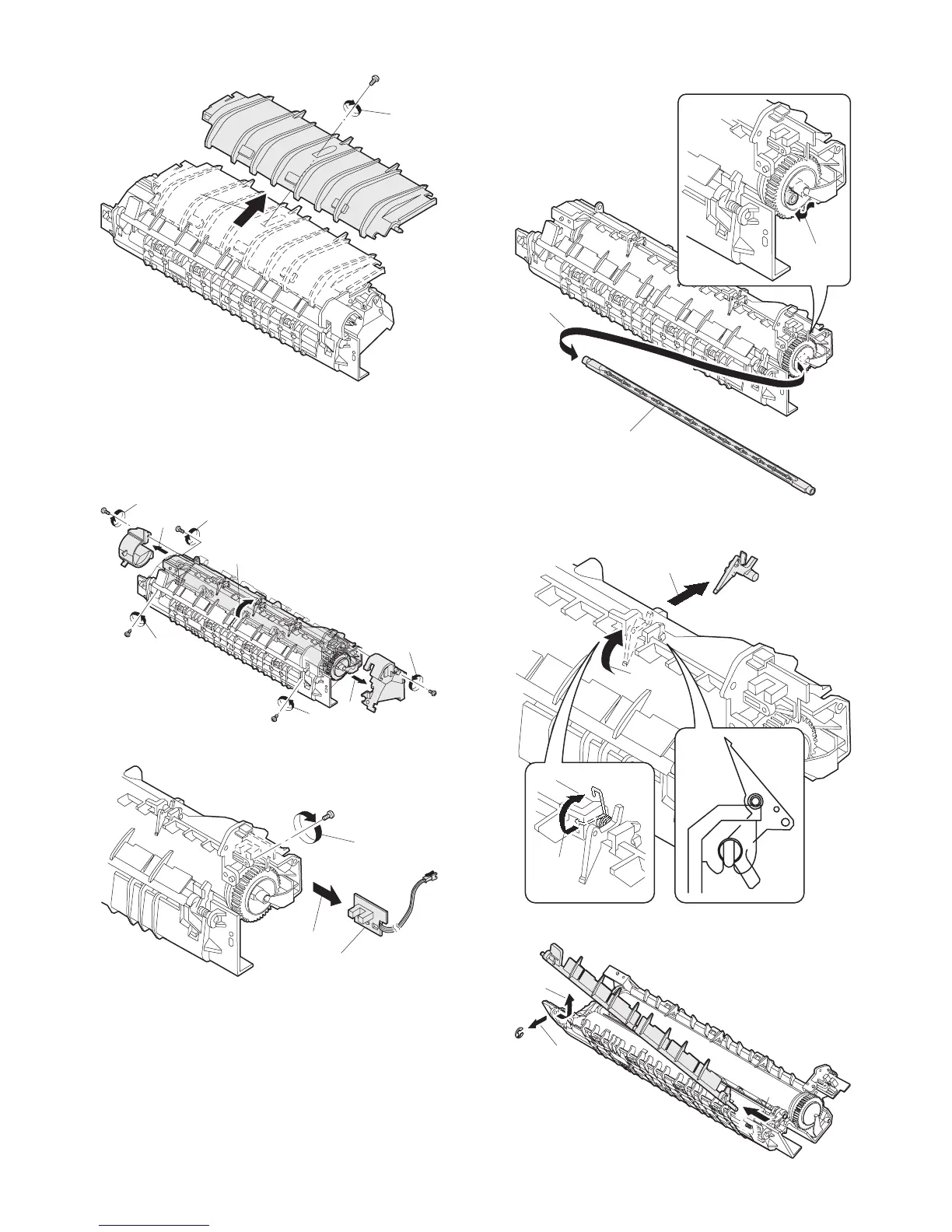

4) Remove the screw and remove the U-turn guide.
Pressure roller section disassembly
5) Remove the three screws, remove the fusing cover lower on the
right side, and open the heat roller section.
Note: When opening the unit after removing the screw 4), be care-
ful not to deform the earth spring.
6) Remove the screw and remove the PPD2 sensor.
7) Remove the plate spring on the right and remove the heater
lamp.
8) Remove the spring, and remove the upper separation pawls (3
pcs.).
9) Remove the E-ring and remove the reverse gate.
1)
2)
1)
5)
5)
6)
6)
4)
3)
2)
1)
2)
PPD2 sensor
1)
2)
Heater lamp
3)
1)
2)
2)
1)
3)
