AL-2030/2040CS/2050CS DISASSEMBLY AND ASSEMBLY 8 - 11

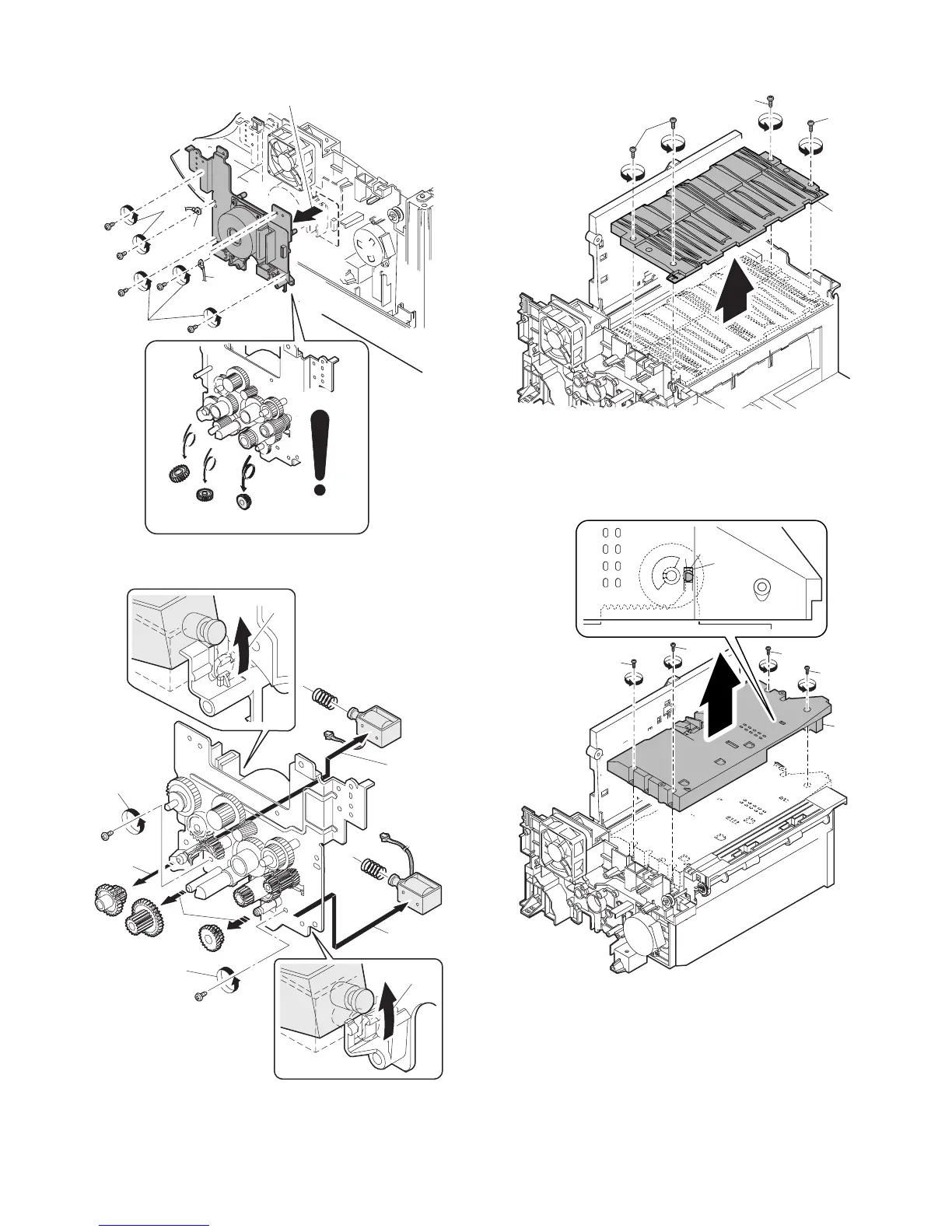

21) Remove five screws and the grounding wire, and remove the
main drive unit.
22) Remove the parts as shown below, and remove the pressure
release solenoid and the paper feed solenoid.
23) Remove four screws, and remove the paper guide unit.
(AL-2020/2035/2040)
24) Remove four screws, and remove the lower paper guide unit.
(AL-2050/2060)
[Note for installation]
Fit the lower paper guide hole (a) with the shifter gear hole (b)
so that the black resin (c) of the shifter unit can be checked.
1)
2)
1)
1)
1)
CAUTION:Attach the gears securely
3)
3)
1)
1)
2)
2)
4)
4)
2)
1)
1)
1)
1)
1)
1)
1)
2)
a
b
c
