GETTING STARTED
PART NAMES AND FUNCTIONS

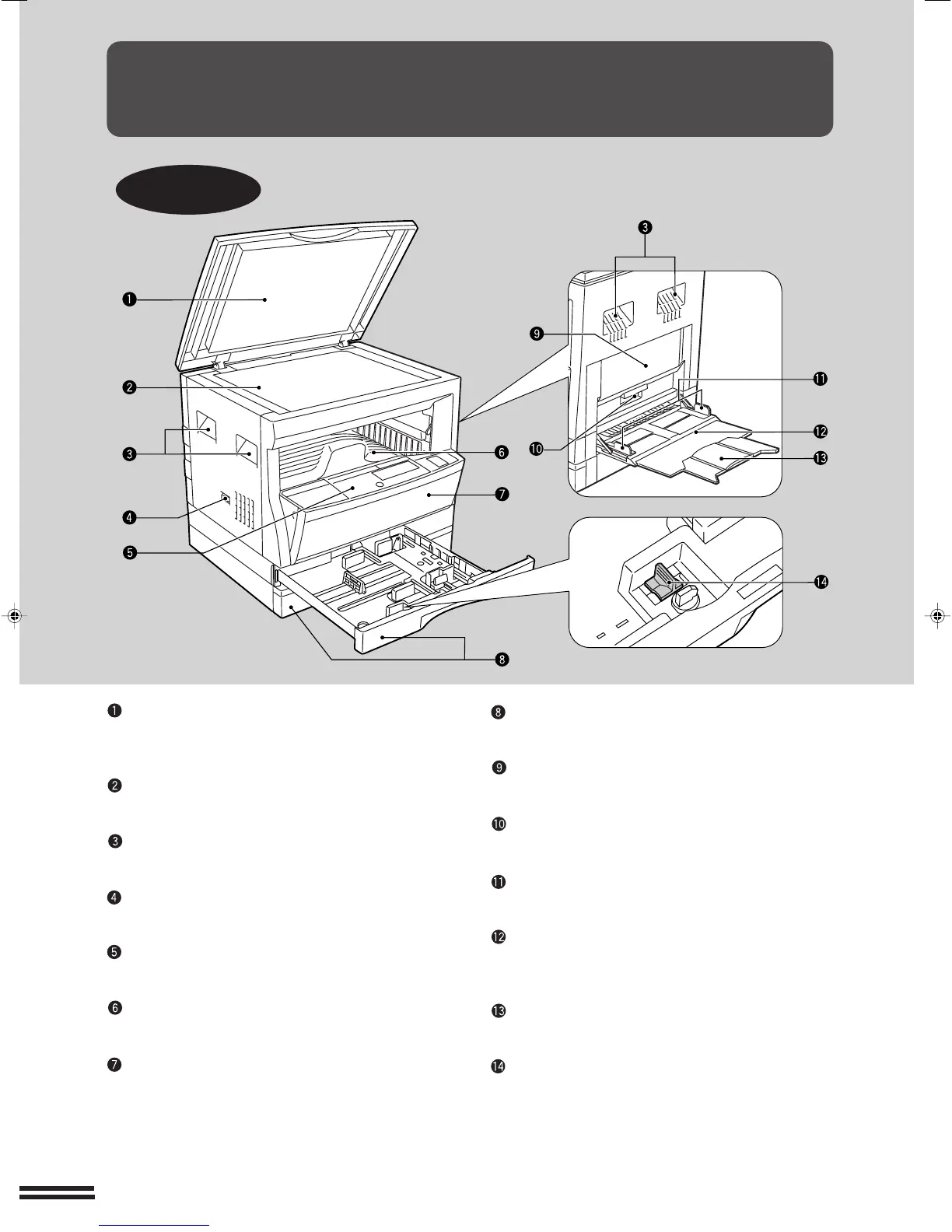

Overall layout
Platen cover (optional)
Place the original on the original table and close the
platen cover before copying starts.
Original table
Place the document to be copied here.
Handles
Use to move the copier.
Power switch
Press to turn copier power on and off.
Operation panel
All copier controls are located here for easy operation.
Paper output tray
Finished copies are deposited in the paper output tray.
Front cover
Open to remove misfeeds and for copier servicing.
Paper trays
Each tray holds 250 sheets of copy paper.
Side cover
Open to remove misfeeds and to service the copier.
Side cover handle
Lift and pull to open the side cover.
Bypass tray guides
Adjust to the width of the copy paper.
Bypass tray
Paper including special paper (such as transparency
film) can be fed from the bypass tray.
Bypass tray extension
Pull out when feeding large paper such as B4 and A3.
Charger cleaner
Use to clean the transfer charger.
