Misfeed in the RADF
When the RADF misfeeds an original sheet, the copier will stop and the
misfeed message will appear.
An original misfeed may occur at one of three locations:
(A) in the RADF feed section, (B) in the exit roller, or (C)
under the transport belt.

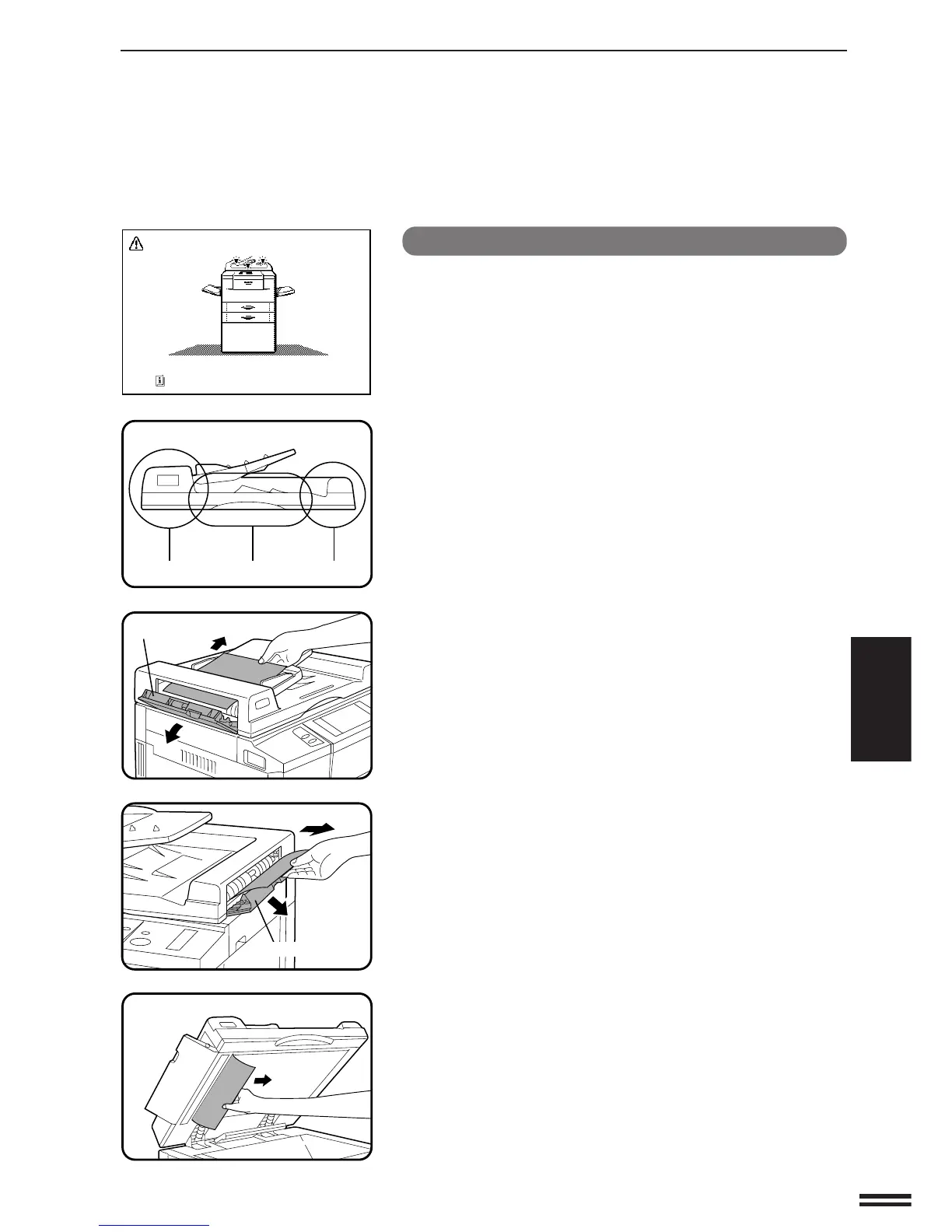

(A) Open the feeding roller cover and pull the original gently
to the right and out from the document feeder tray.
l
Be sure to open and close the document feeder cover to cancel
the misfeed display.
(B) Open the exit roller cover and gently pull the original
out.
l
Be sure to open and close the document feeder cover to cancel
the misfeed display.
(C) Open the feeding roller cover and the document feeder
cover, and remove the original.
NOTE:
After misfed originals are removed from locations A, B and/or C, a
message may appear indicating the number of originals which must
be returned to the document feeder tray. Return the originals and
press the START key to resume copying.
MISFEED REMOVAL
COPIER TROUBLE? Misfeed removal
A MISFEED HAS OCCURRED.
CLEAR INDICATED AREA.
PRESS FOR RECOVERY INSTRUCTIONS.
ABC
Feeding roller cover
Exit roller cover
