[ 4 ] EXTERNAL VIEWS AND INTERNAL STRUCTURES

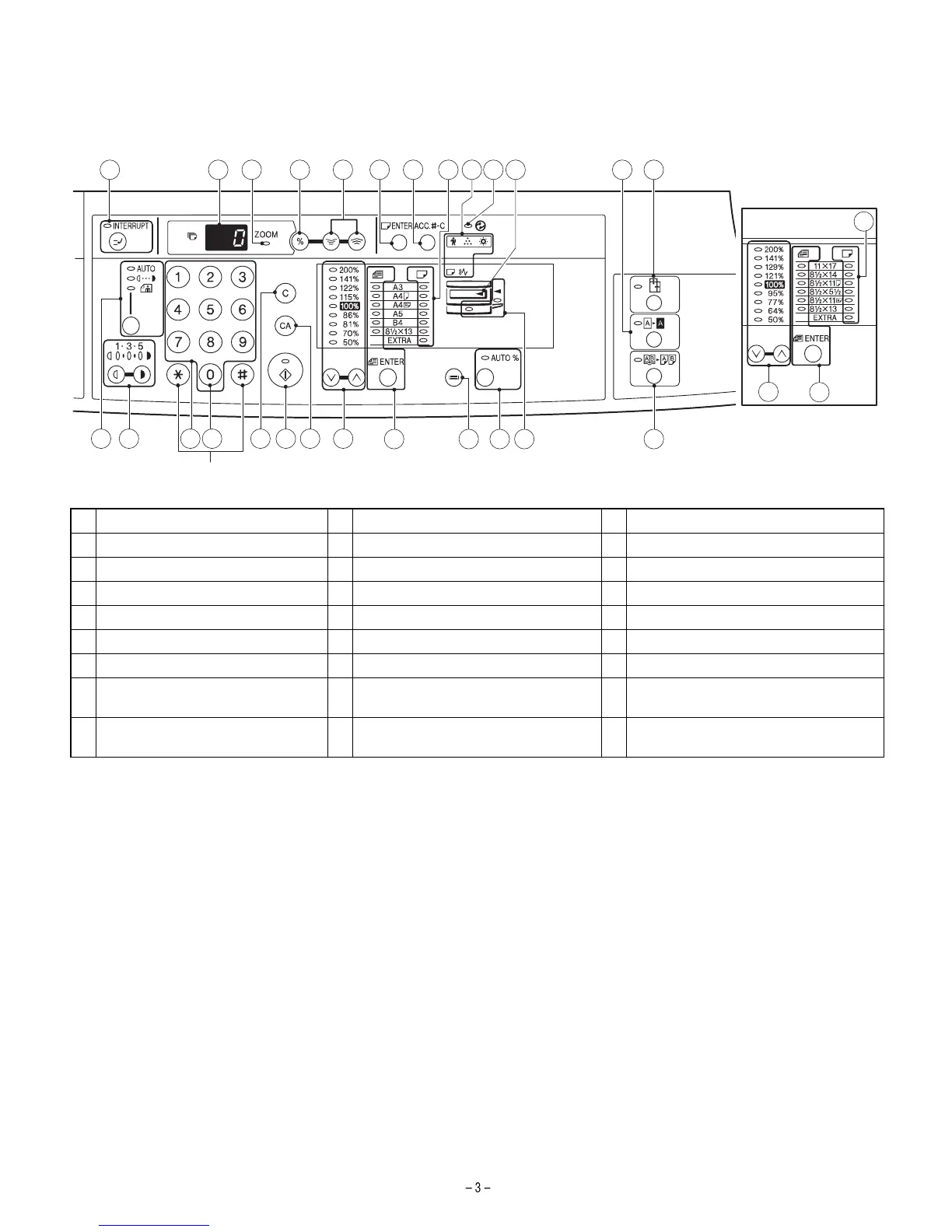

3. OPERATION SECTION
1 INTERRUPT key and indicator 2 Copy quantity display 3 ZOOM indicator
4 Copy ratio display key 5 Zoom keys 6 PAPER SIZE ENTER key
7 AUDIT CLEAR key 8 PAPER SIZE indicators 9 Alarm indicators
10 POWER SAVE indicator 11 Output tray full indicator 12 B/W REVERSE key and indicator
13 XY-ZOOM key and indicator 14 AUTO/MANUAL/PHOTO key and indicators 15 Light and dark keys and indicators
16 Numeric keys 17 Zero key 18 CLEAR key
19 START key and indicator 20 CLEAR ALL key 21 PRESET RATIO selector keys and indicators
22 ORIGINAL SIZE ENTER key and
indicators
23 TRAY SELECT key 24 AUTO IMAGE key and indicator
25 Paper feed location/misfeed location
indicators
26 DUAL PAGE COPY key and indicator
Inch system
1312
1110987654321
8
14 15 1716
Not used
18 19
242322
2120
25
22
21
26
