Sharp AR-5015 Service Manual

[13] ELECTRICAL SECTION

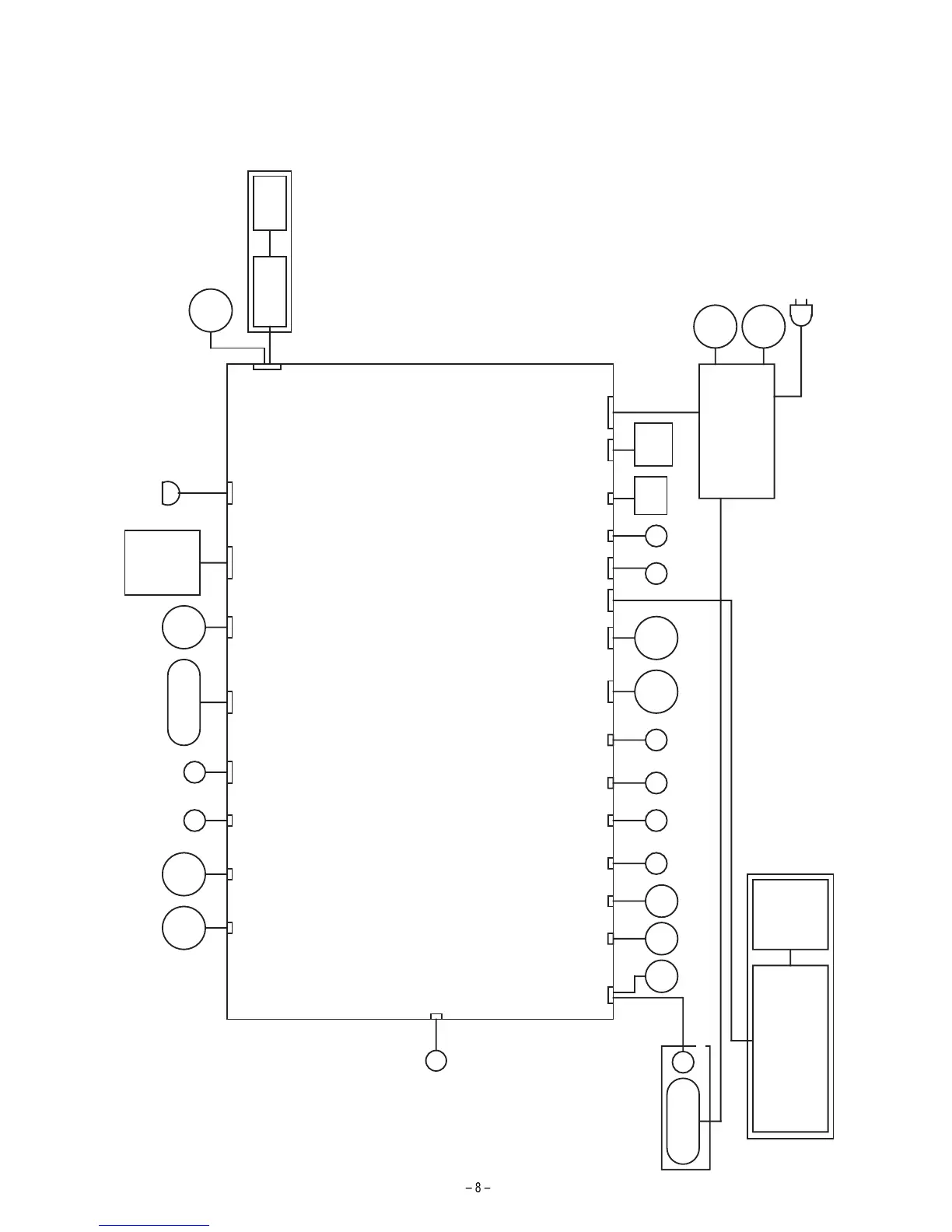

1. BLOCK DIAGRAM
MCU-PWB
CCD-PWB
APC-PWB
HVU
Power Supply
PS-FAN PS-SW
Polygon-Motor
Mirror-Motor
Fuser-Lamp
Copy-Lamp
Down-Load-CON
Toner-Motor MAIN-Motor
OPERATION PANEL
ERDH-OP-PWBCOPY-OP-PWB
HAND PICK UP SOL
CN15 CN19
PS ROLLER SOL CN18 CN36 CN13 CN12
BD-PWB
LSU-PWB
CN4
CN6 CN5
FUSER COOLING FAN
CN23 CN24
CN20 CN35 CN2 CN1
SIDE COVER
CASETTE
SWITCH
SWITCH
CN14 CN22
DEV SENSOR
CN27
CASETTE PICK UP SOL
HAND PAPER EMPTY SENSOR
CASETTE PAPER EMPTY SENSOR
CN32 CN33
PAPER IN SENSOR
CN28
SCANNER HP SENSOR
SCANNER COVER SWITCH
CN29 CN17
CN26
PAPER OUT SENSOR
CN38
CRUM UNIT
THERMISTER

Sharp AR-5015 Specifications

General

Brand	Sharp
Model	AR-5015
Category	Copier
Language	English
