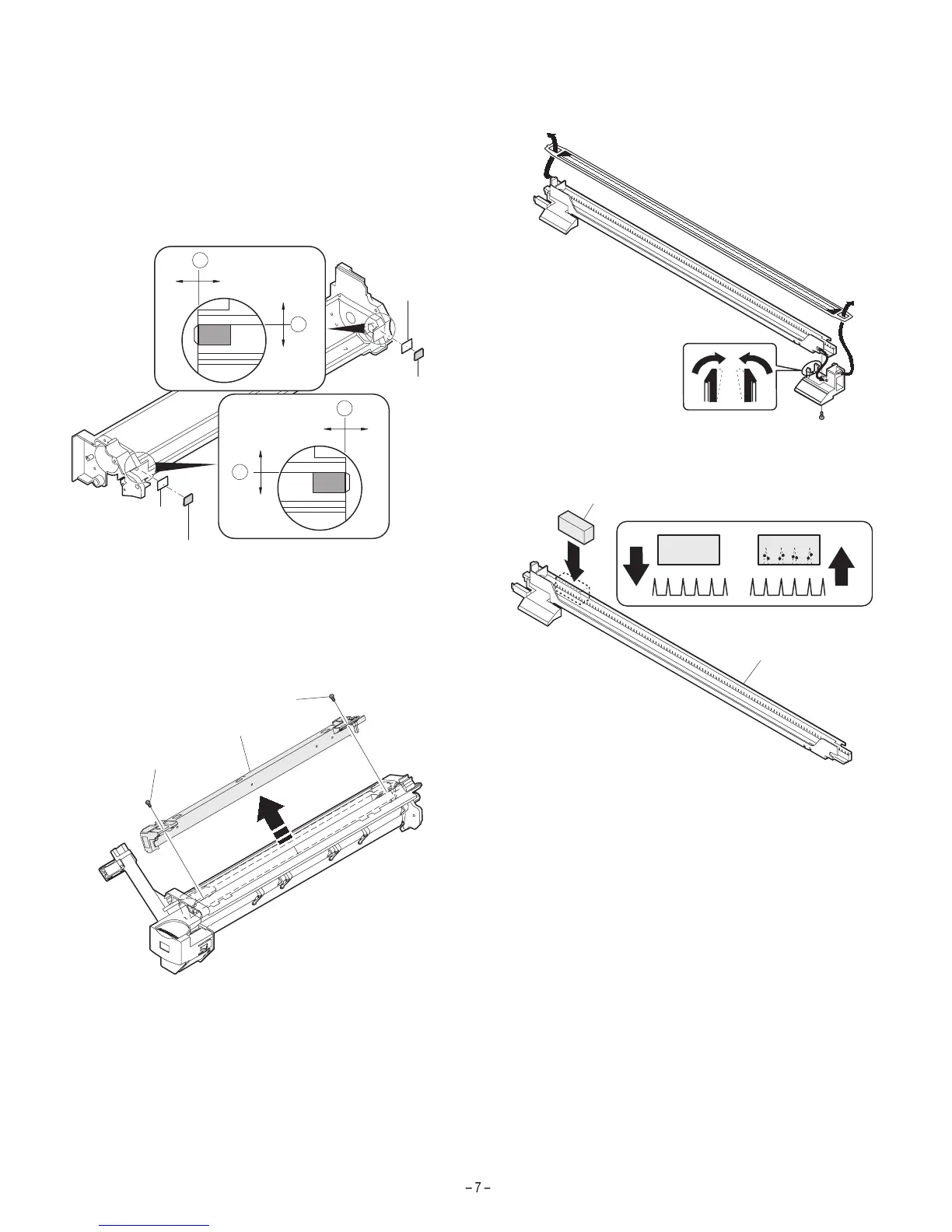

[11] DISASSEMBLY AND ASSEMBLY
11. DEVELOPING SECTION
A. Developing box
a) Side mylar attachment reference
The side mylar attachment reference is shonw in the figure below.
12. PROCESS SECTION
B. Charger cleaning
1. Remove the MC holder unit
2. Remove the Screen grid
3. Push the electrode cleaner onto the electrode tip so that the elec-
trode tip comes into the electrode cleaner to clean. (repeat two or
three times.)
Note: Do not move the electrode cleaner with the electrode tip in it.
When cleaning, clean all the electrodes evenly.
D. Moquette F/R of process frame unit
To improve reliability of the drum unit, the AR-5015 must use the
following parts.
• Process frame unit : CFRM-0021QS67
• Moquette F : PSEL-0129QSZZ
• Moquette R : PSEL-0130QSZZ
0
0.5
B
0
0.5
A
0
0.5
D
0
0.5
C
Side mylar
DV side sheet
DV side sheet
Side mylar
(2)
(1)
(1)
Electrode cleaner
Electrode section
