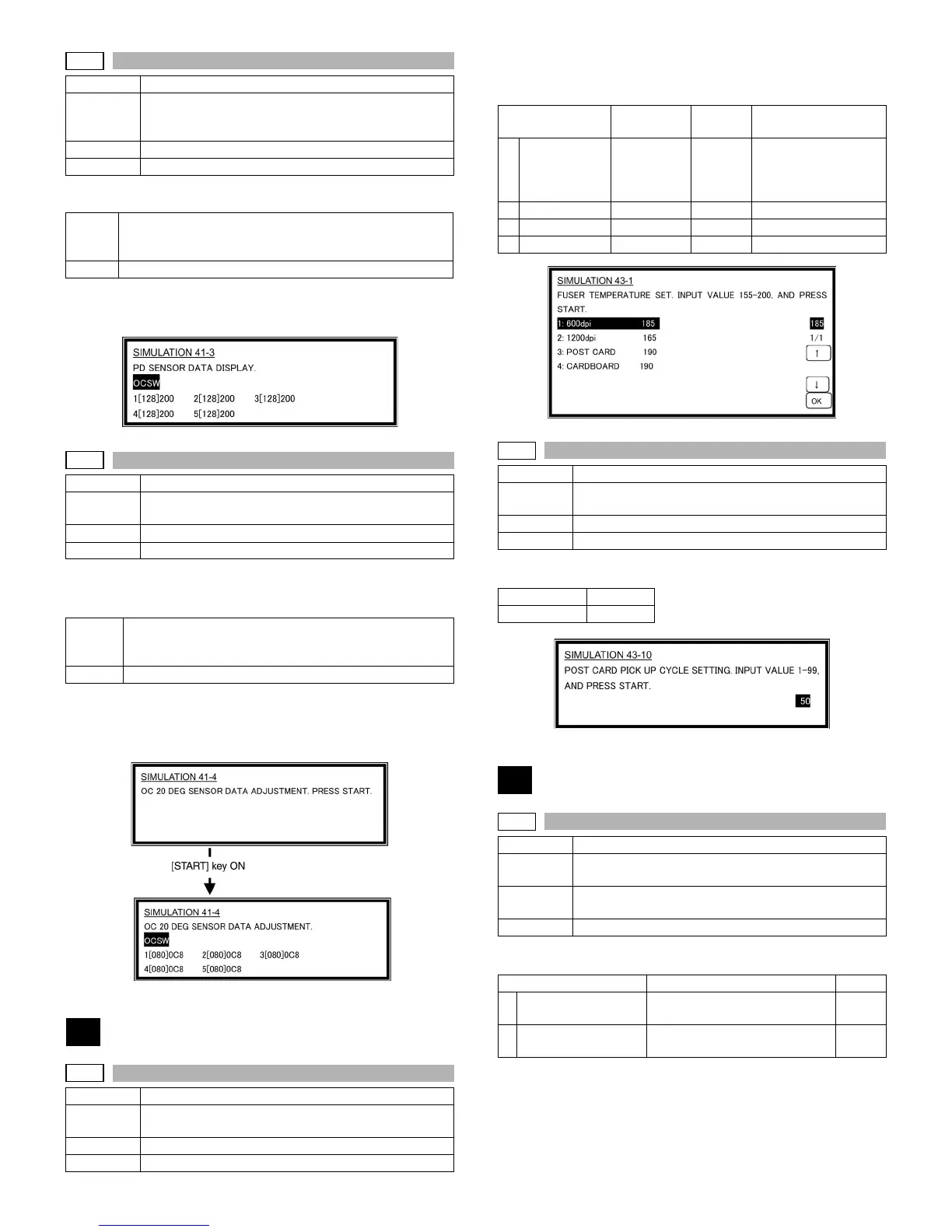

AR-M236/M276/M237/M277 SIMULATION 8 - 29
Operation/procedure
The detection output level of each sensor is displayed in real time.
The value in [ ] shows the threshold value of 20 degree detection
adjustment. (Hexadecimal display)
For AB series, 1 to 5 is displayed, for inch series, 1 to 4.
Operation/procedure
Set the OC cover at 20 degrees detection and press the [START] key.
The detection output level of each sensor is displayed in real time.
The value in [ ] shows the threshold value of 20 degree detection
adjustment. (Hexadecimal display)
For AB series, 1 to 5 is displayed, for inch series, 1 to 4.
During execution, [EXEC] is highlighted.
Operation/procedure
1. Touch the item to be set.
2. Enter the set value with the 10-key.
Operation/procedure
Input the set value with the 10-key and press the [START] key.
Operation/procedure
Enter the set value with the 10-key, and press the [START] key.
41-3
Purpose Operation test/check
Function
(Purpose)
Used to check the light reception level and the
detection level of the original size detection photo
sensor.
Section Others
Item Operation
OCSW Original cover state
Open: Highlighted display
Close: Normal display
1 to 5 PD sensor detection level (Hexadecimal display)
41-4
Purpose Adjustment
Function
(Purpose)
Used to adjust the detection level of OC 20 degrees.
Section Others
Item Operation
OCSW Original cover state
Open: Highlighted display
Close: Normal display
1 to 5 PD sensor detection level (Hexadecimal display)
43
43-1
Purpose Setting
Function
(Purpose)
Used to set the fusing temperature in 600dpi, 1200dpi,
or postcard print.
Section Fixing (Fusing)
Item Operation
Item Content
Setting
range
Default
1
600dpi
600dpi 155-200 190 (Europe)/
175 (Japan, SEC,
SECL)/
185 (Others)
2
1200dpi
1200dpi 140-200 165
3
POST CARD
Postcard 155-200 190
4
CARDBOARD
Thick paper 155-200 190
43-10
Purpose Setting
Function
(Purpose)
Used to set the paper feed cycle timing when printing
postcards.
Section Paper feed
Item Operation
Setting range 1-99
Default 50
44
44-1
Purpose Setting
Function
(Purpose)
Used to make various setups in each mode of process
control.
Section Image process (Photoconductor/Developing/Transfer/
Cleaning)
Item Operation
Item Content Default
1 ENVIRONMENT
ADJ.
Environmental correction Allow/
Inhibit (0: Inhibit, 1: Allow)
1
2 DUPLEX PRINT ADJ. Duplex print correction Allow/
Inhibit (0: Inhibit, 1: Allow)
0
