Sharp AR-M276 - B. Developing Section

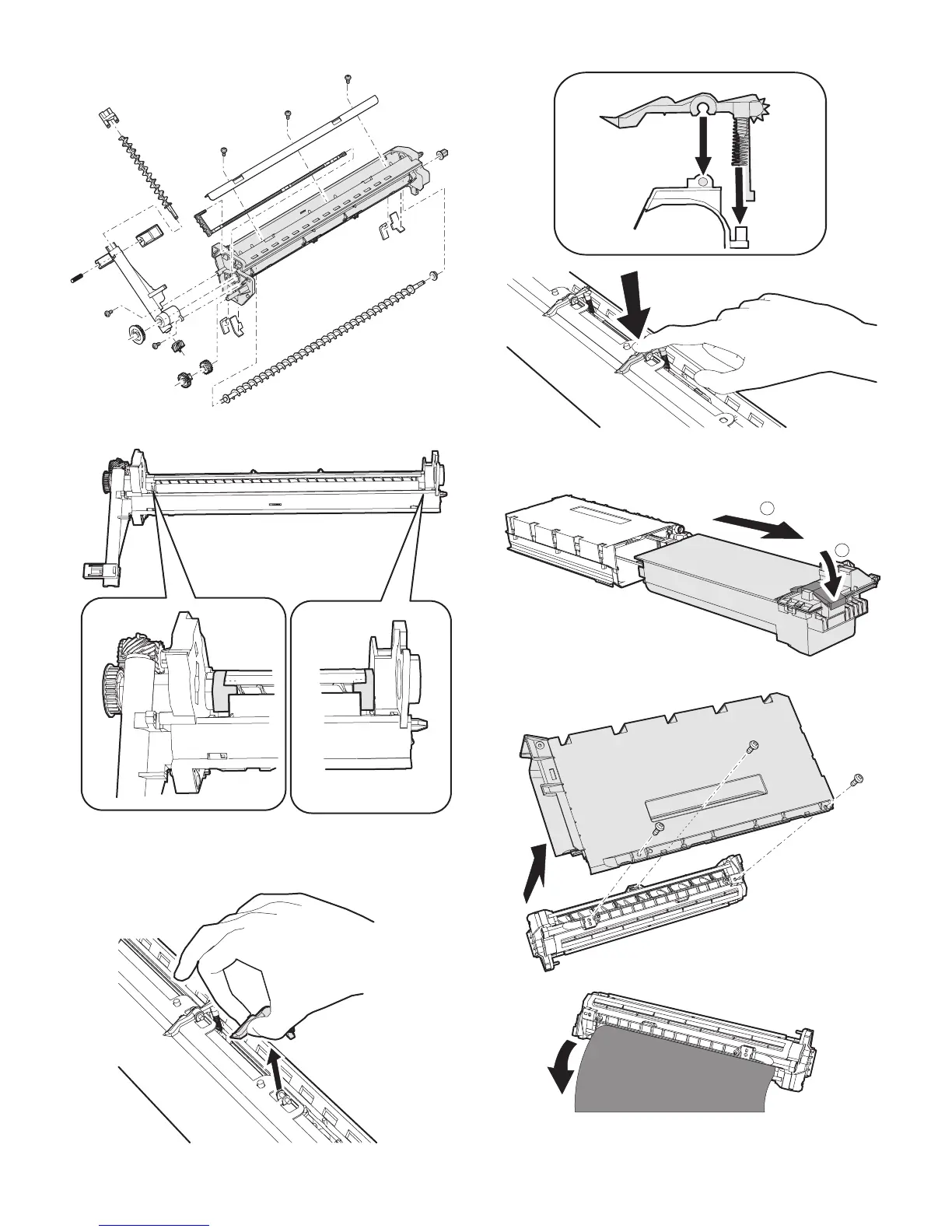

AR-M236/M276/M237/M277 DISASSEMBLY, ASSEMBLY AND MAINTENANCE 10 - 3
c. Drum frame unit
d. Moquette F/R
Note: If it disturbs the blade movement, replace it and attach new one.
e. Separation pawl
Disassembly* Hold the tip of the separation pawl and remove it.
Assembly* Press the center of the separation pawl and install it.
B. Developing section
(1) Developer
1
2
