Sharp AY-X36RU - Outdoor Unit

36
AY-X36RU
AE-X36RU
[2] OUTDOOR UNIT

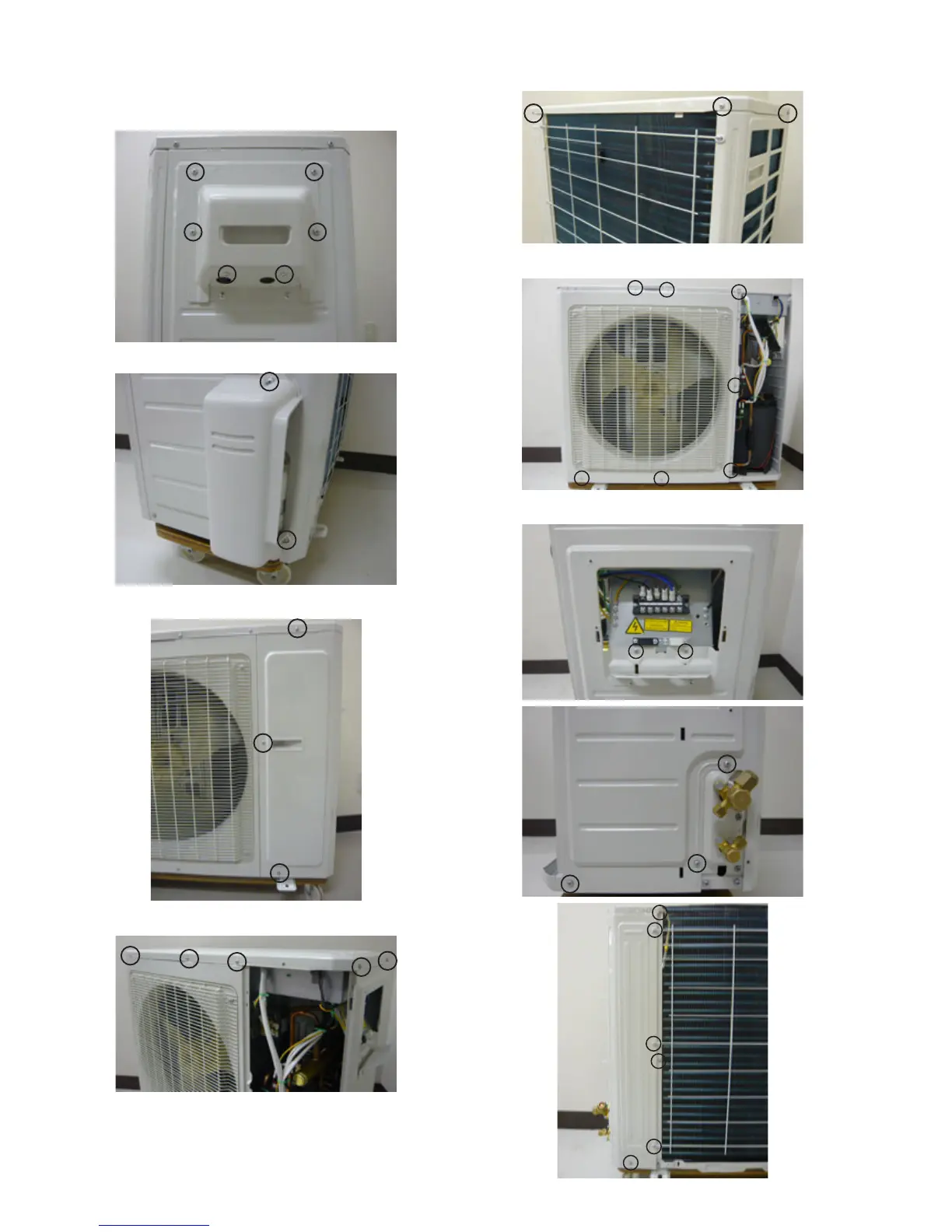

PROCEDURE
1. Remove the six (6) screws xing the terminal cover.
2. Remove the two (2) screws xing the pipe cover.
3. Remove the three (3) screws xing the Front Side Plate
4. Remove the eight (8) screws xing the top plate.
5. Remove the seven (7) screws xing the front panel.
6. Remove the eleven (11) screws xing the right side panel.
