CP-BP210
1 Front Panel 1. Net.......................... (A1) x1 12-1
2 Woofer 1. Screw ..................... (B1) x4 12-2
3 Subwoofer 1. Screw .................... (C1) x4 12-2
4 Tweeter 1. Screw .................... (D1) x2 12-2
5 Super Tweeter 1. Screw .................... (E1) x2 12-2
STEP REMOVAL
PROCEDURE
FIGURE
CP-BP2000A
1 Front Panel 1. Net.......................... (A1) x1 12-3
2. Rubber ................... (A2) x4
3. Screw ..................... (A3) x4
4. Tip .......................... (A4) x2 12-4
2 Woofer 1. Screw ..................... (B1) x4 12-4
3 Subwoofer 1. Screw .................... (C1) x4 12-4
4 Tweeter 1. Screw .................... (D1) x2 12-4
5 Super Tweeter 1. Screw .................... (E1) x2 12-4
STEP REMOVAL
PROCEDURE
FIGURE
(A1)x1
(A2)x4
(A3)x4
ø4x20mm
Screw
Driver
Driver should
be pried away
from Speaker
Box.
Front
Panel
Figure 12-3
Figure 12-4
(D1)x2
ø3x10mm
(B1)x4
ø4x16mm
(E1)x2
ø3x10mm
(C1)x4
ø4x16mm
(A4)x2
Super
Tweeter
Tweeter
Woofer
Subwoofer
Screw
Driver
Driver should
be pried away
from Speaker
Box.
(A1)x1
(C1)x4
Ø4x16mm
(E1)x2
Ø3x10mm
(B1)x4
Ø4x16mm
(D1)x2
Ø3x10mm
Super
Tweeter
Tweeter
Sub Woofer
Woofer

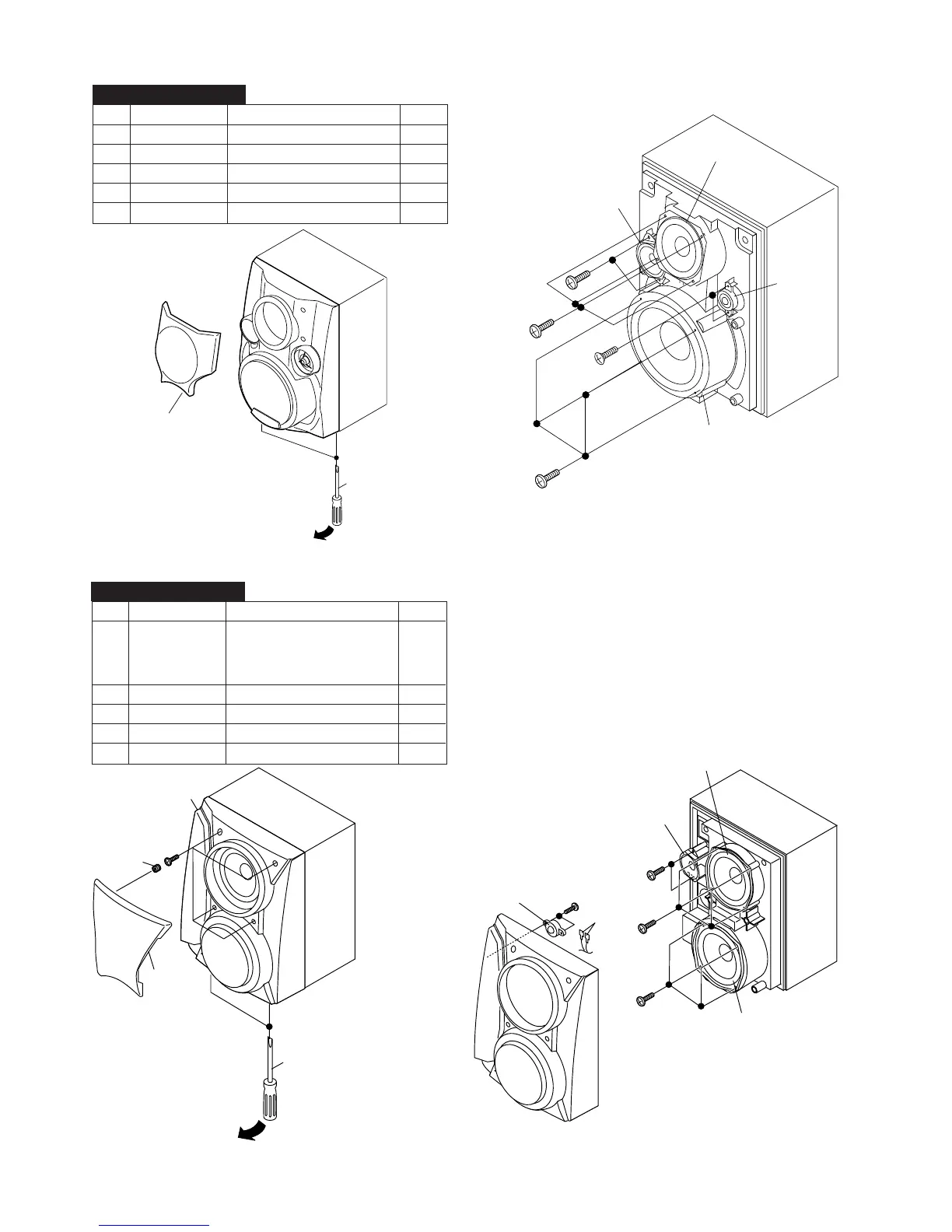

Figure 12-1
Figure 12-2
