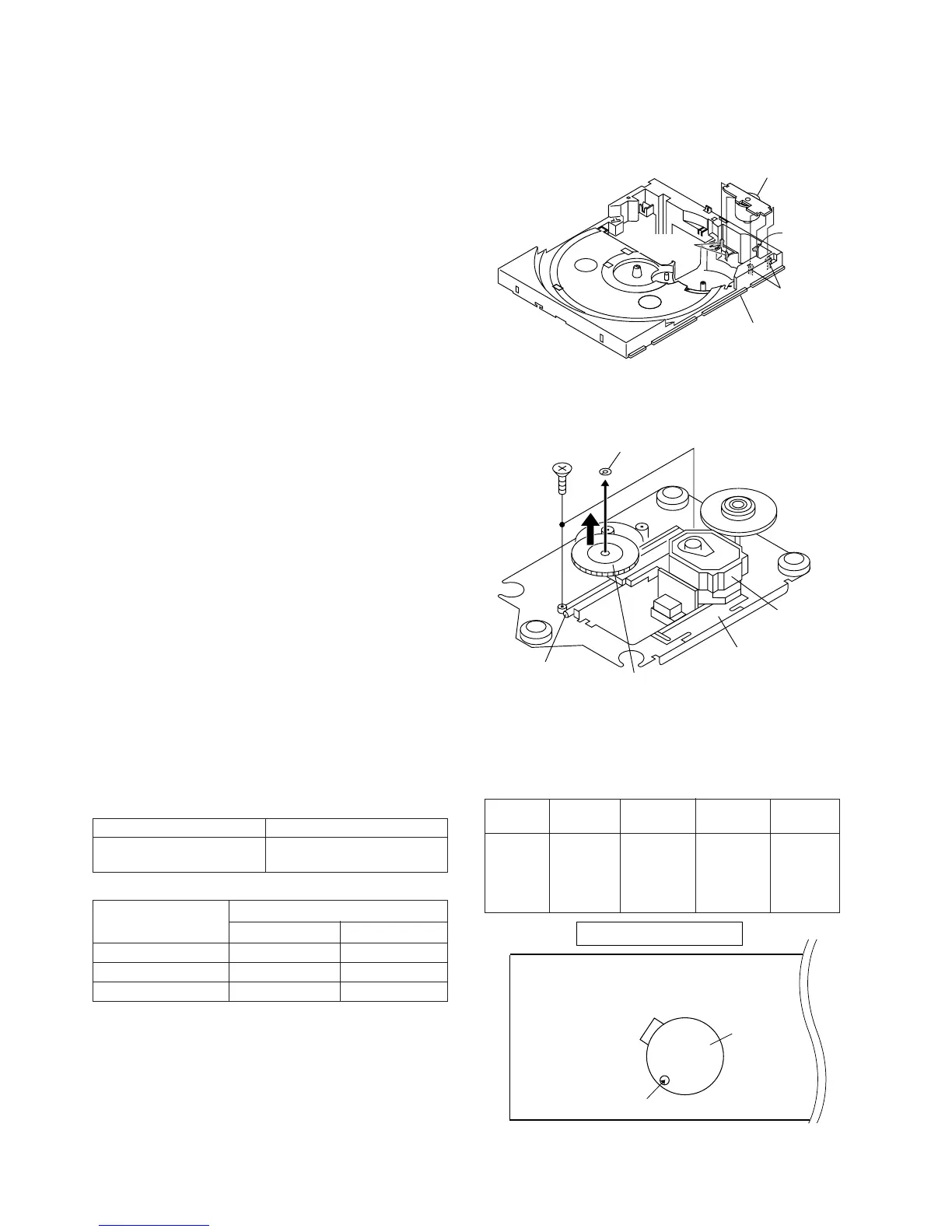

CD-BP2000W/210W/2000A/BK2000W/210W
– 14 –
How to remove the pickup (See Fig. 14-2)
1. Remove the stop washer (B1) x 1 pc., to remove the gear
(B2) x 1 pc.
2. Remove the screws (B3) x 2 pcs., to remove the shaft (B4)x
1 pc.
3. Remove the pickup.
Figure 14-2
CD MECHANISM SECTION
Perform steps 1, 2, 3, 12, 13, 14 and 15 of the disassembly
method to remove the CD mechanism.
How to remove the loading motor
(See Fig. 14-1)
1. Bend the hooks (A1) x 5 pcs., to remove the loading motor.
Figure 14-1
Note
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector remove to protect the optical pickup
from electrostatic damage.
(A1)x2
(A1)x1
Loading Motor
CD Base
(A1)x2
(B3) x2
ø2.6 x6mm
Shaft
(B4) x1
Stop Washer
(B1) x1
Gear
(B2) x1
CD Mechanism
Pickup
ADJUSTMENT
MECHANISM SECTION
Driving Force Check
Torque Meter
Specified Value
Play: TW-2111 Tape 1: Over 80 g
Tape 2: Over 80 g
Torque Check
Torque Meter
Tape 2
Play: TW-2111 30 to 80 g. cm 30 to 80 g.cm
Fast forward: TW-2231 70 to 180 g.cm
Rewind: TW-2231 70 to 180 g.cm
Specified Value
Tape 1
Specified
Value
Adjusting
Point
Instrument
Connection
Test Tape
Normal MTT-111 Variable 3,000 ± Speaker
speed Resistor in 30 Hz terminal
motor. (Load
(MM1) resistance:
6 ohms)
Tape Speed
Figure 14-3
TAPE MECHANISM
MM1
Motor
Variable Resistor in motor
