Sharp CV-P09FR - Turbo Cool Mode; One-Hour Off Timer Function

CVP09FR
3 – 6

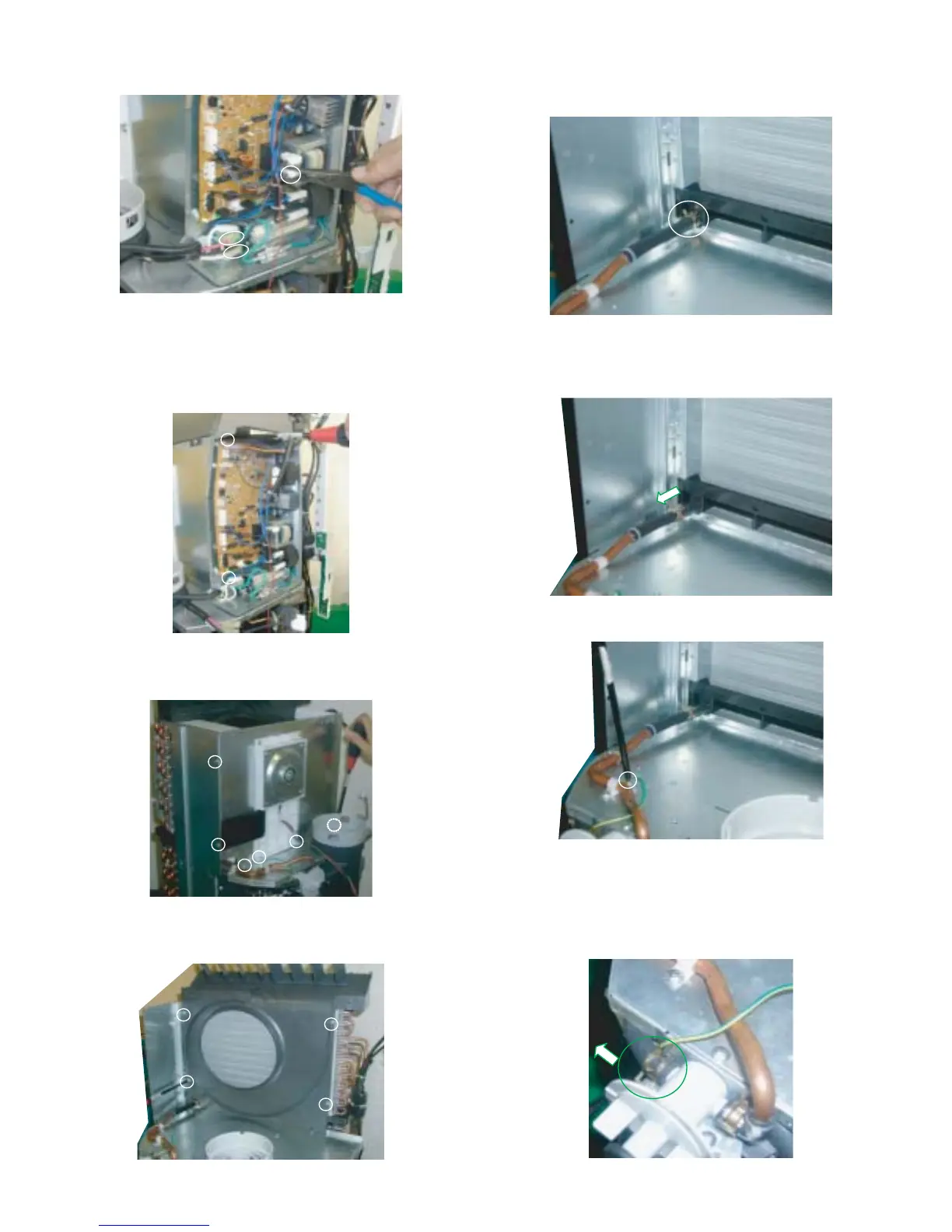

29.Remove wiring connectors of the compressor cord by using long-
nose pliers.(3 parts)
CAUTION: DISCHARGE THE FAN MOTOR CAPACITOR AND RUN-
NING CAPACITOR BEFORE TOUCHING THESE CAPAC-
ITORS OR OTHER COMPONENTS OR WIRING.
30.Unscrew 2 screws holding the control box.
Remove the control box from the unit.
31.Unscrew 6 screws holding the casing cover.
Remove the casing cover from the unit.
32.Unscrew 4 screws holding the orifice.
Remove the orifice from the unit.
Then turn the band to the direction, as shown in below figure.
CAUTION: RETURN THE BAND TO THE ORIGINAL DIRECTION
WHEN RE-ASSEMBLYING.
33.Move the band to the direction shown in below figure (approx.11/
16").
Then removed the drain hose B.
34.Unscrew the screw holding the lead wire.
35.Turn the band, as shown in below figure.
CAUTION: RETURN THE BAND TO THE ORIGINAL DIRECTION
WHEN RE-ASSEBLYING.
Move the band to the direction of the arrow(approx.11/16"), and
removed the drain hose A.
