Sharp CV-P09FR Service Manual

CVP09FR
3 – 5

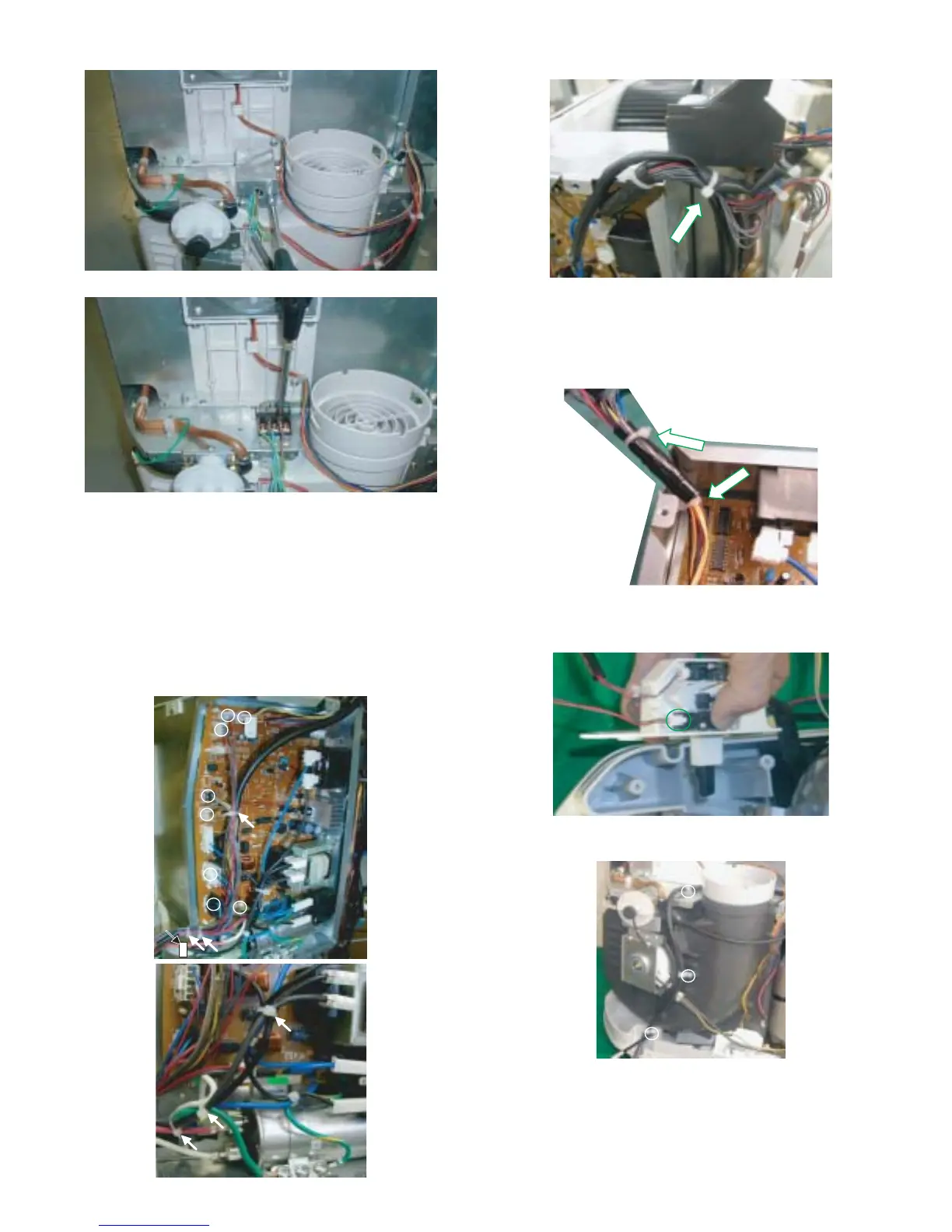

22.Unscrew 2 screws holding the cover.
23.Unscrew 1screw holding the terminal board.
24.Cut the fixing band holding the wires.(7 parts)
Disconnect 8 connectors.
CAUTION: CONNECT THE CONNECTORS OF FAN MOTOR ETC.
CORRECTLY WHEN RE-ASSEMBLYING.
CN6 : OUTDOOR FAN MOTOR(BLACK AND SMALL)
CN4 : INDOOR FAN MOTOR(WHITE AND SMALL)
CN3 : INDOOR FAN MOTOR(WHITE AND LARGE)
CN5 : OUTDOOR FAN MOTOR(BLACK AND LARGE)
CN13 : LEAD WIRE FOR FLOAT SWITCH ASS'Y(4P)
25.Cut the fixing band holding the wires.(1 part)
26.Cut the fixing band holding the wire and tape.
Then remove the tape.
CAUTION: KEEP THE TAPE IN CASE OF RE-ASSEMBLYING.
Then cut the fixing band holding the wires.
27.Disconnect the micro switch connector.
*Lower micro switch only.
28.Unscrew 3 screws holding the wire holders.

Sharp CV-P09FR Specifications

General

Cooling capacity (max)	- BTU/h
Dehumidifying capacity	1.167 l/h
Cooling capacity in watts (max)	2120 W

Weight and Dimensions

Weight	36000 g
