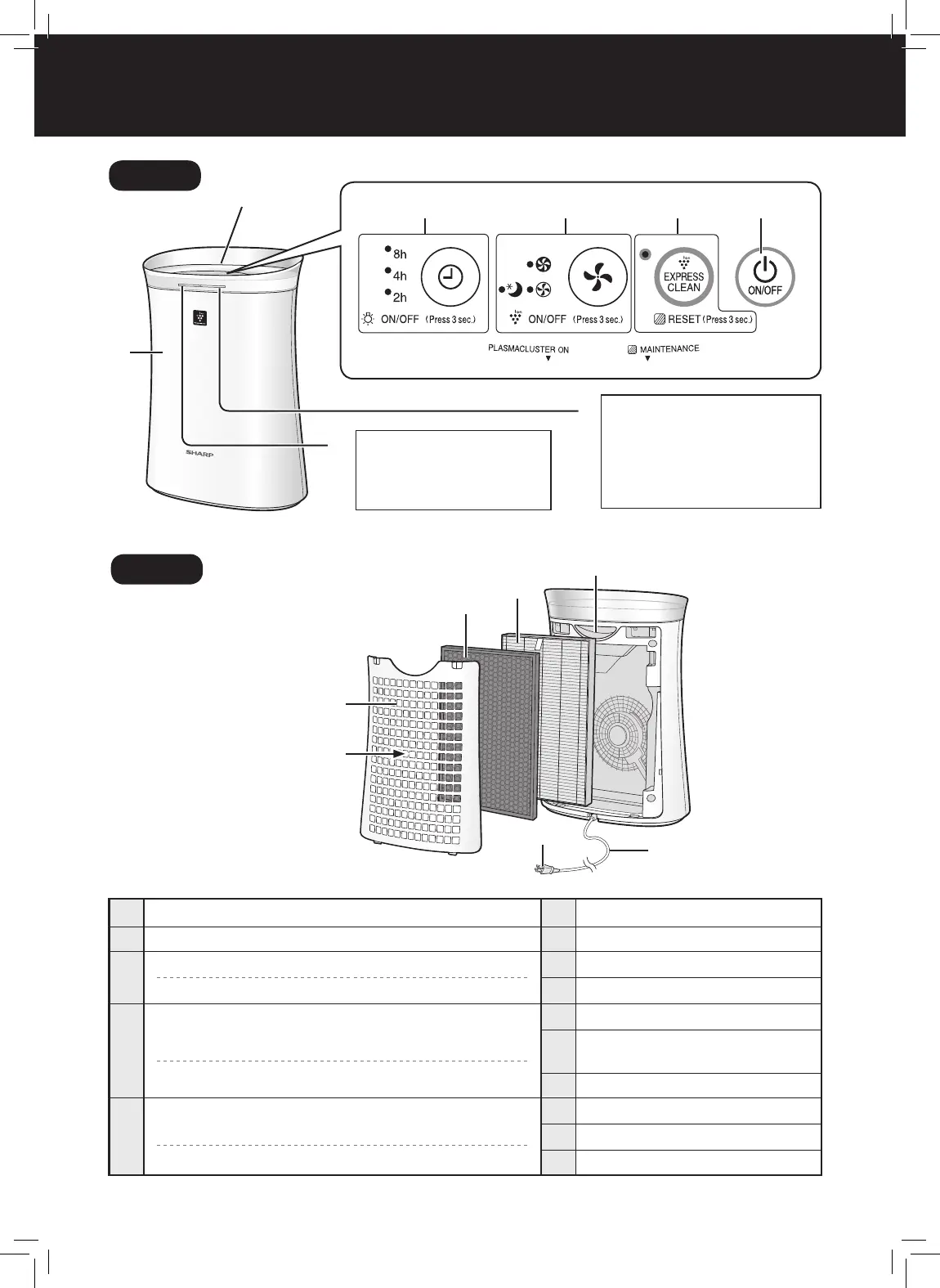

PART NAMES
2
1
Main Unit
6
POWER ON/OFF Button
2
Air Outlet
7
FILTER MAINTENANCE SIGN
3
OFF TIMER Button, Indicator Lights - green
(Press 3 sec.) LIGHT ON/OFF Button
8
PLASMACLUSTER SIGN
9
Handle
4
Fan Speed MODE Button,
Fan Speed Indicator Lights - green
(Press 3 sec.) Plasmacluster Ion ON/OFF Button
10
True HEPA Filter
11
Active Carbon Deodorizing
Filter
12
Back Panel (Pre-Filter)
5
PLASMACLUSTER EXPRESS CLEAN Button,
Indicator Light - green
(Press 3 sec.) FILTER RESET Button
13
Air Inlet
14
Power Cord
15
Power Plug
FRONT
BACK
9
14
12
13
10
11
15
1
3 54 6
PLASMACLUSTER SIGN
Blue : Plasmacluster ON
OFF : Plasmacluster OFF
FILTER MAINTENANCE SIGN
Green : It is not necessary to
maintain the lter.
Red : It is necessary to
maintain the lter.
8
7
