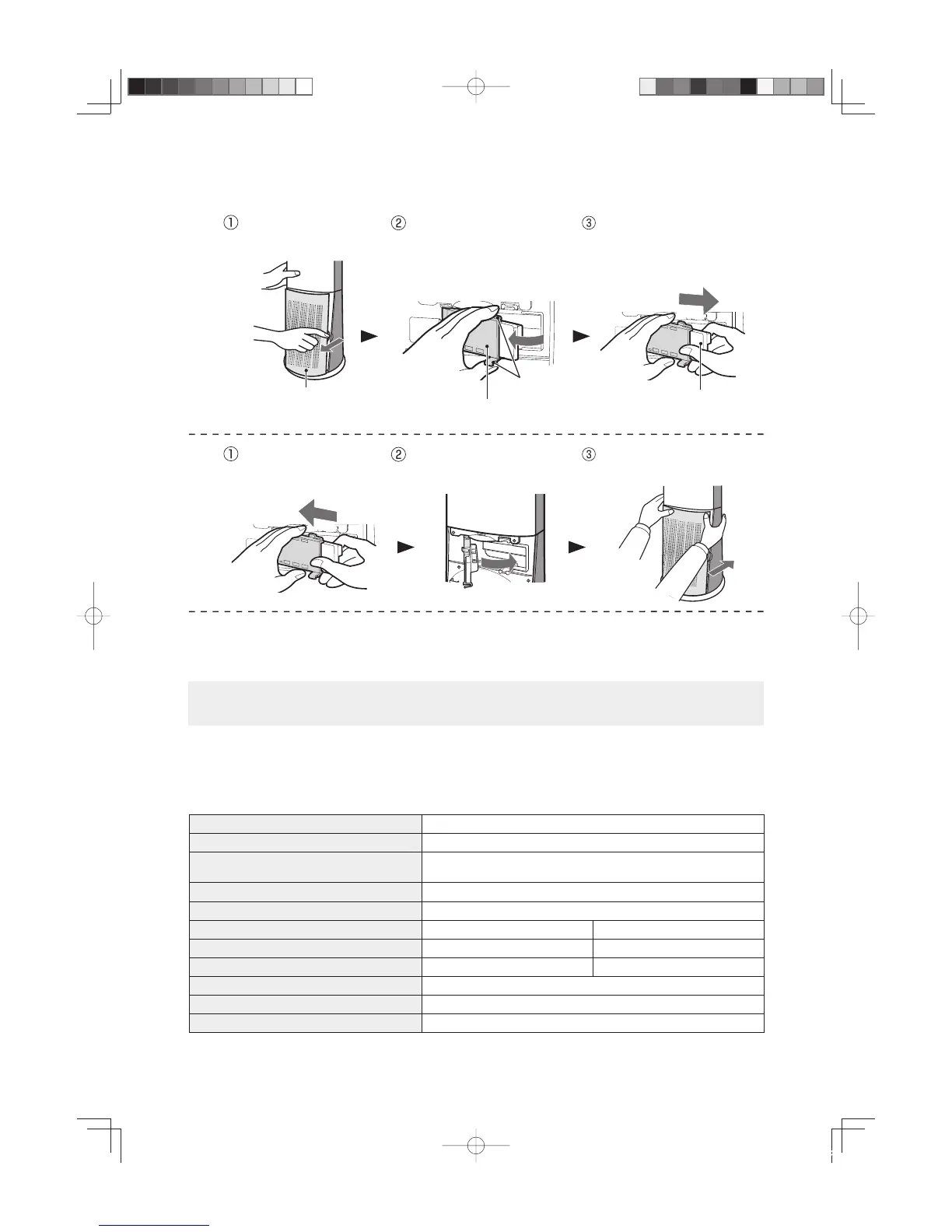

HOW TO REPLACE THE PLASMACLUSTER ION GENERATING UNIT
1
2
3
Remove the air suction
port cover.
Fully insert a new
Plasmacluster Ion
Generating Unit.
Insert the AC Adapter in an outlet and press the Operation Button.
Check the Unit Replacing Light is OFF.
Clip the upper and lower
hooks and open the unit
holder.
Close the unit holder.
Fix the unit holder with
a hand and pull out
the Plasmacluster Ion
Generating Unit.
Attach the air suction port
cover.
Air suction port cover
Unit holder
Plasmacluster Ion
Generating Unit
Hook
Note:
• The unit holder can be opened by 45 degrees only. If you open if forcibly, it may be damaged.
*
The target ß oor area where 25,000 ions/cm
3
blasted out in the room can be measured near the center
of room (1.2m in height from ß oor) by placing this product against a wall when the wind volume is the
maximum (without vertical or horizontal swing).
Model IG-ETC1A/IG-ETC1E
Power source system AC Adapter
Power input
IG-ETC1A: AC 220V, 0.9A, 50Hz
IG-ETC1E: AC 220-240V, 0.9A, 50/60Hz
Power output DC 12V, 2.5A
Applicable ß oor area
* (
m
2
)
19.83
Air volume Þ ne adjustment (level) 1 (Min.) 32 (Max.)
Power Consumption (W) 2.0 24.0
Operating noise level (
dBA) 17 45
Dimensions (mm) 240 (W) x 240 (D) x 870 (H)
Weight (kg) Approx. 4.0
Cord length (m) Approx. 1.8
SPECIFICATIONS
