LC-19D1E/S-BK/WH
5 – 5

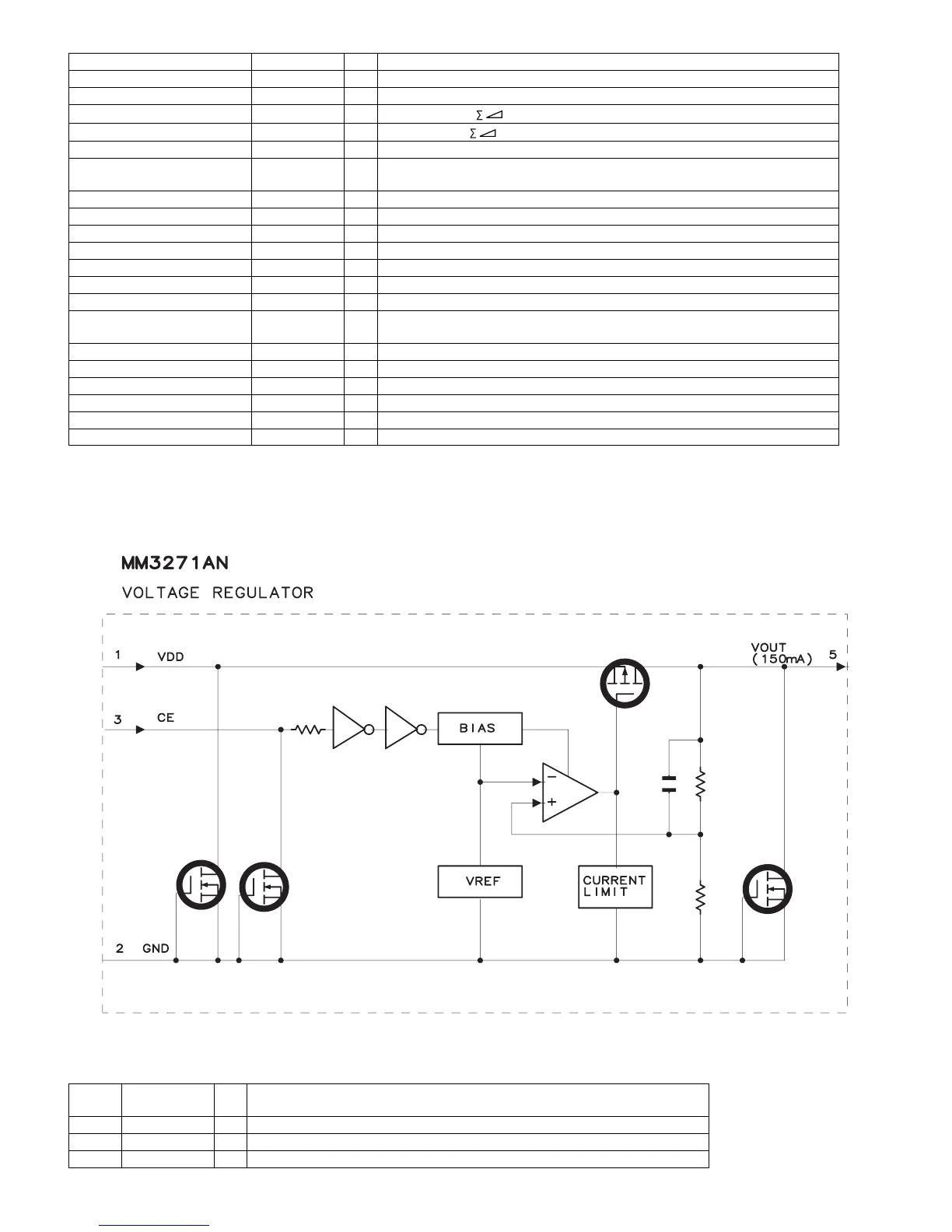

2.2. IC205 (VHiMM3271AN-1Y)
2.2.1 Block Diagram
2.2.2 Pin Connections and short description
Voltage Regulator: 1.0V-REG
47 D/NOT_P O MPEG data valid/parity
48 ERROR O MPEG packet error
18 AGC_RF I/O
RF AGC control (5V tolerant )
17 AGC_IF I/O
IF AGC control (5V tolerant )
64 TEST - Reserved test mode, must be grounded.
27 GPIO0 I/O General-purpose input/output port 0.
Reserved test mode,must be ground.
49 GPIO1 I/O General-purpose input/output port 1.
60 GPIO2 I/O General-purpose input/output port 2 or lock indicator.
59 GPIO3 I/O General-purpose input/output port 3 or lock indicator.
58 GPIO4 I/O General-purpose input/output port 4 .
57 GPIO5 I/O General-purpose input/output port 5.
54 GPIO6 I/O General-purpose input/output port 6.
53 GPIO7 I/O General-purpose input/output port 7.
52 GPIO8 I/O General-purpose input/output port 8.
Resen must be ground.
61 GPIO9 I/O General-purpose input/output port 9.
23 AUX_CLK I/O Auxiliary clock.
25 CS0 I Chip select LSB.
2, 6, 13, 16 VDDA_2V5 - Analog power supply (2.5V)
19, 24, 31, 38, 45 ,51, 55, 62 VDD_1V0 - Digital core supply (1.0V)
22, 28, 34, 41, 50, 56, 63 VDD_3V3 - Digital I/O supply (3.3V)
Pin
No.
Pin Name I/O Pin Function
1 VDD I Voltage supply pin
2 GND - Ground.
3 CE I Output voltage ON/OFF control terminal (When "CE" is "H", Vout is "ON".)
Pin No Pin Name I/O Pin Function
