2.7. IC506, IC4605 (VHiNJM4565V-1Y)

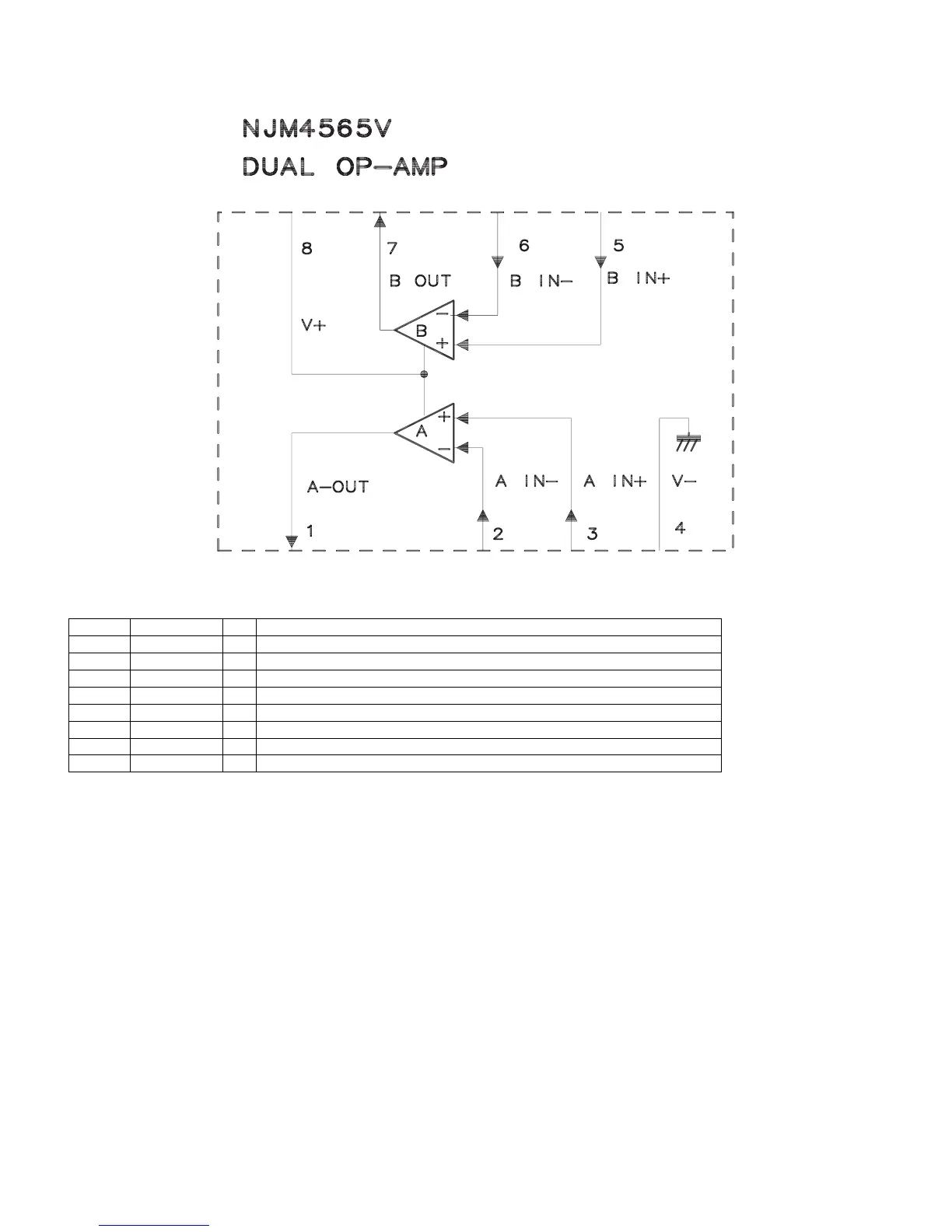

2.7.1 Block Diagram
2.7.2 Pin Connections and short description
DUAL OP-AMP
Pin No. Pin Name I/O Pin Function
1 A OUTPUT O A output
2 A +INPUT I A + input
3 A -INPUT I A - input
4V- -Ground
5 B +INPUT I/O B + input
6 B -INPUT I B - input
7 B OUTPUT I B output
8 V+ - Power supply
