LC-19D1E/S-BK/WH
5 – 13

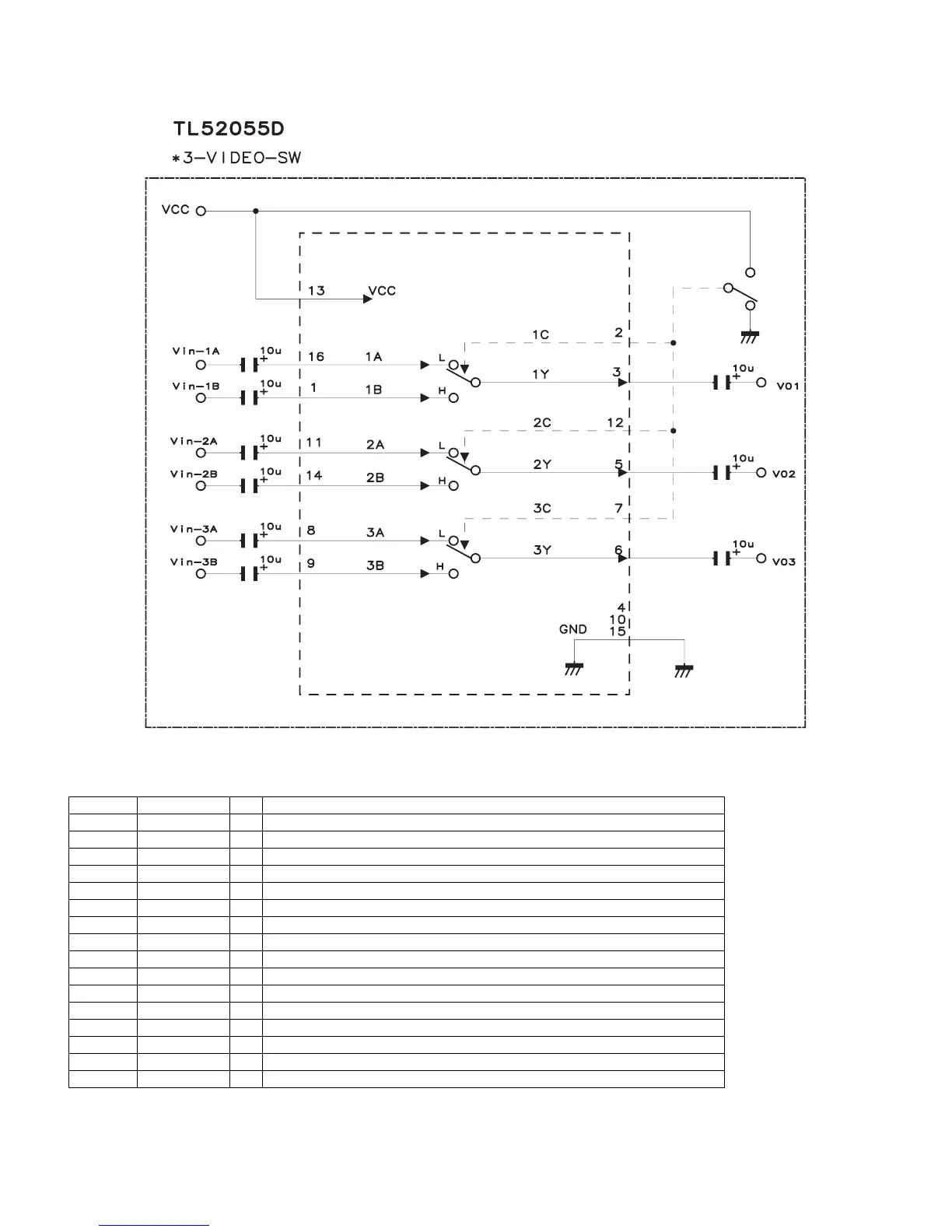

2.8. IC507 (VHiTL52055D-1Y)
2.8.1 Block Diagram
2.8.2 Pin Connections and short description
3-Video-SW
Pin No. Pin Name I/O Pin Function
1 1B I 1ch Input B.
2 1C I 1ch Control Signal.
3 1Y O 1ch Output.
4 GND2 I 2ch Ground
5 2Y O 2ch Output.
6 3Y O 3ch Output.
7 3C I 3ch Contrl Signal.
8 3A I 3ch Input A.
9 3B I 3ch Input B.
10 GND3 - 3ch Ground.
11 2A I 2ch Input A.
12 2C I 2ch Contrl Signal.
13 VCC - Power supply .
14 2B I 2ch Input B.
15 GND1 - 1ch Ground.
16 1A I 1ch Input A.
