LC-19D1E/S-BK/WH
5 – 14
2.9. IC508 (VHiMM1507XN-1)

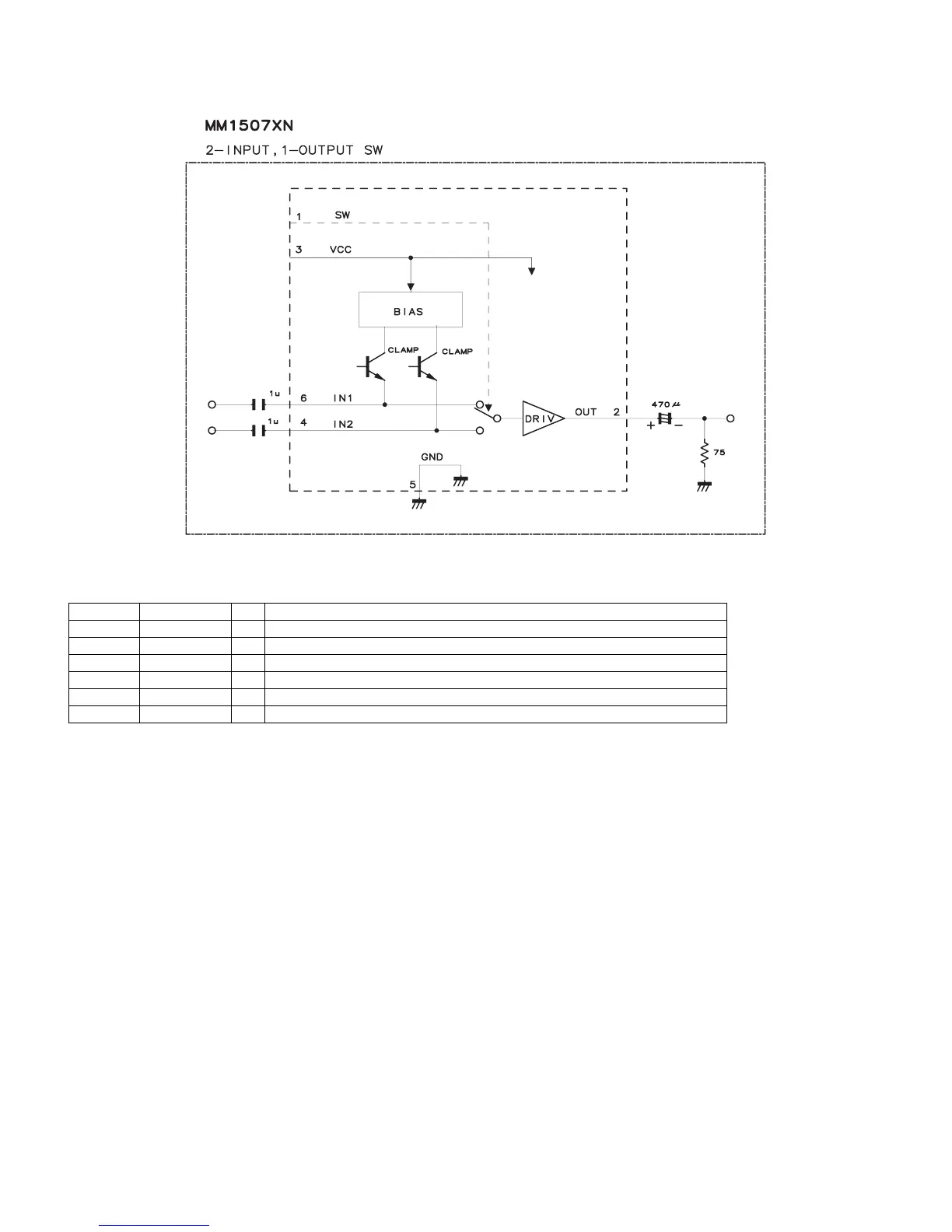

2.9.1 Block Diagram
2.9.2 Pin Connections and short description
2-INPUT,1-OUTPUT SW
Pin No. Pin Name I/O Pin Function
1 SW I control signal
2 OUT O Video out
3 VCC - Power Supply
4 IN2 I Input video signal 2
5 GND - Ground.
6 IN1 I Input video signal 1
