LC-19D1E/S-BK/WH
5 – 26
2.16. IC4405 (VHiLCX126FT-1Y)

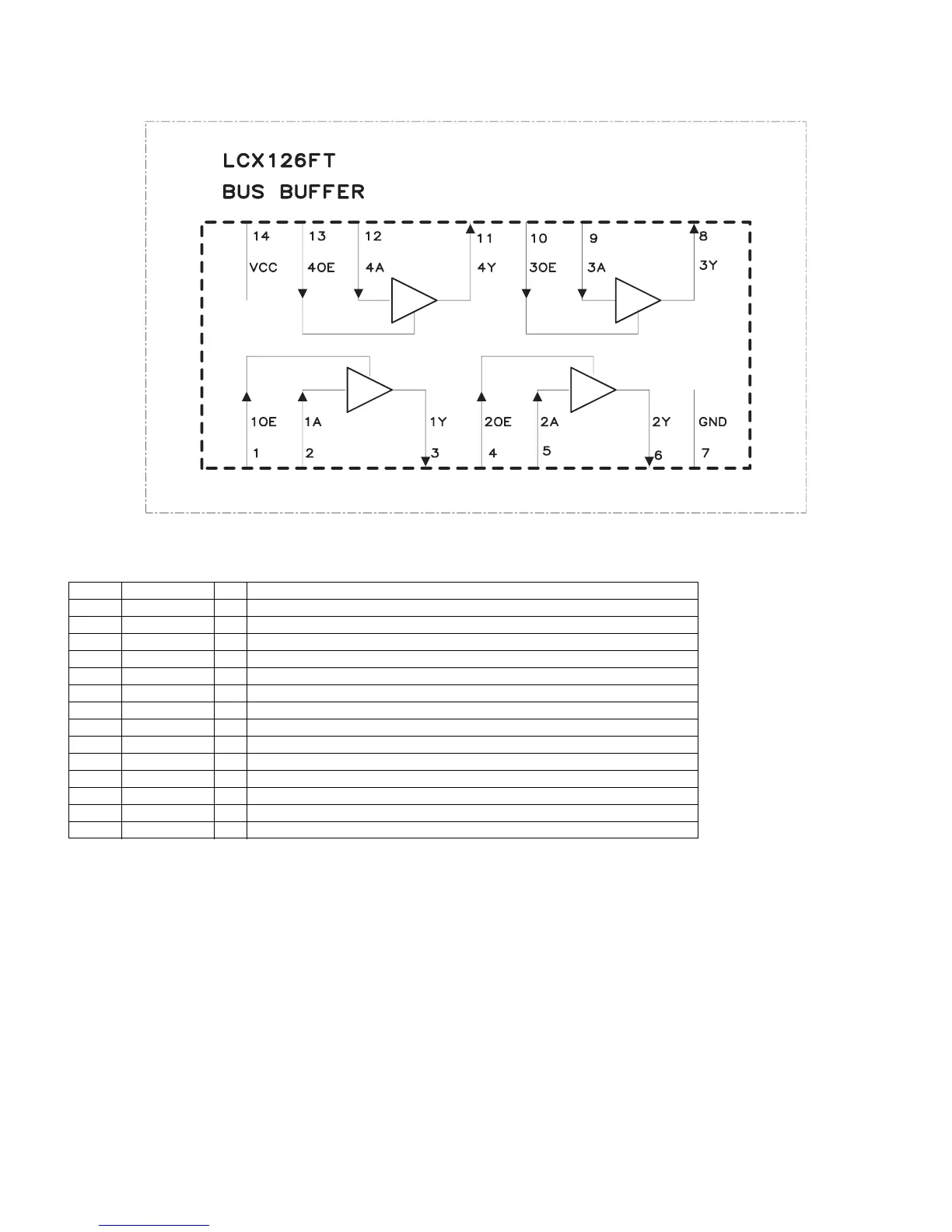

2.16.1 Block Diagram
2.16.2 Pin Connections and short description
Quad Bus Buffer
Pin No. Pin Name I/O Pin Function
1 1OE I Enable terminal 1
2 1A I Input terminal 1A
3 1Y O Output terminal 1Y
4 2OE I Enable terminal 2
5 2A I Input terminal 2A
6 2Y O Output terminal 2Y
7 GND - Ground
8 3Y O Output terminal 3Y
9 3A I Input terminal 3A
10 3OE I Enable terminal 3
11 4Y O Output terminal 4Y
12 4A I Input terminal 4A
13 4OE I Enable terminal 4
14 VCC - Power supply
