2.17. IC4603 (VHiTHS7314D-1Y)

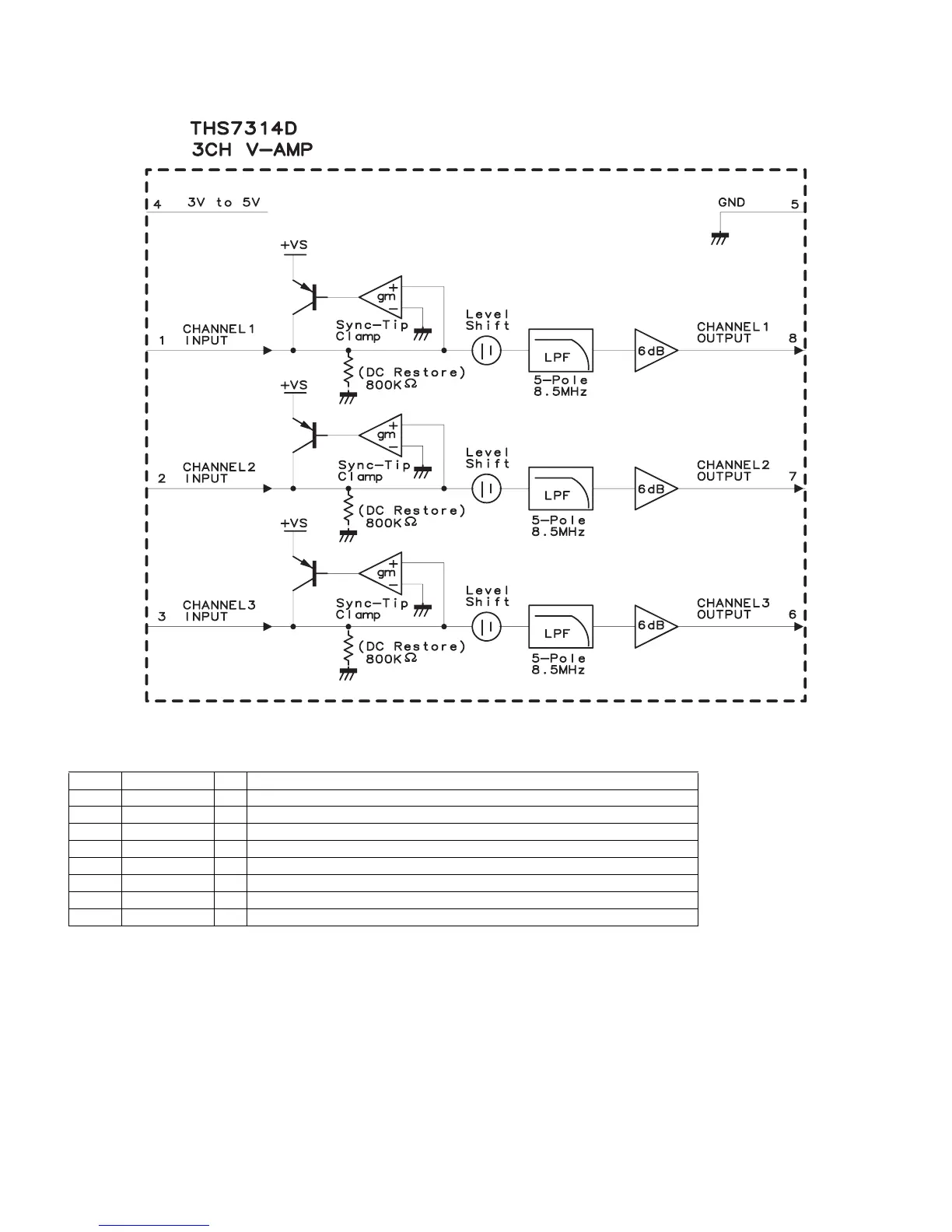

2.17.1 Block Diagram
2.17.2 Pin Connections and short description
3CH V-AMP
Pin No. Pin Name I/O Pin Function
1 CH.1 IN I Video input - channel 1
2 CH.2 IN I Video input - channel 2
3 CH.3 IN I Video input - channel 3
4 VS+ - Positive power supply pin - connected to 3V to 5V
5 GND - Ground pin for all internal circuitry
6 CH.3 OUT O Video output - Channel 3
7 CH.2 OUT O Video output - Channel 2
8 CH1 OUT O Video output - Channel 1
