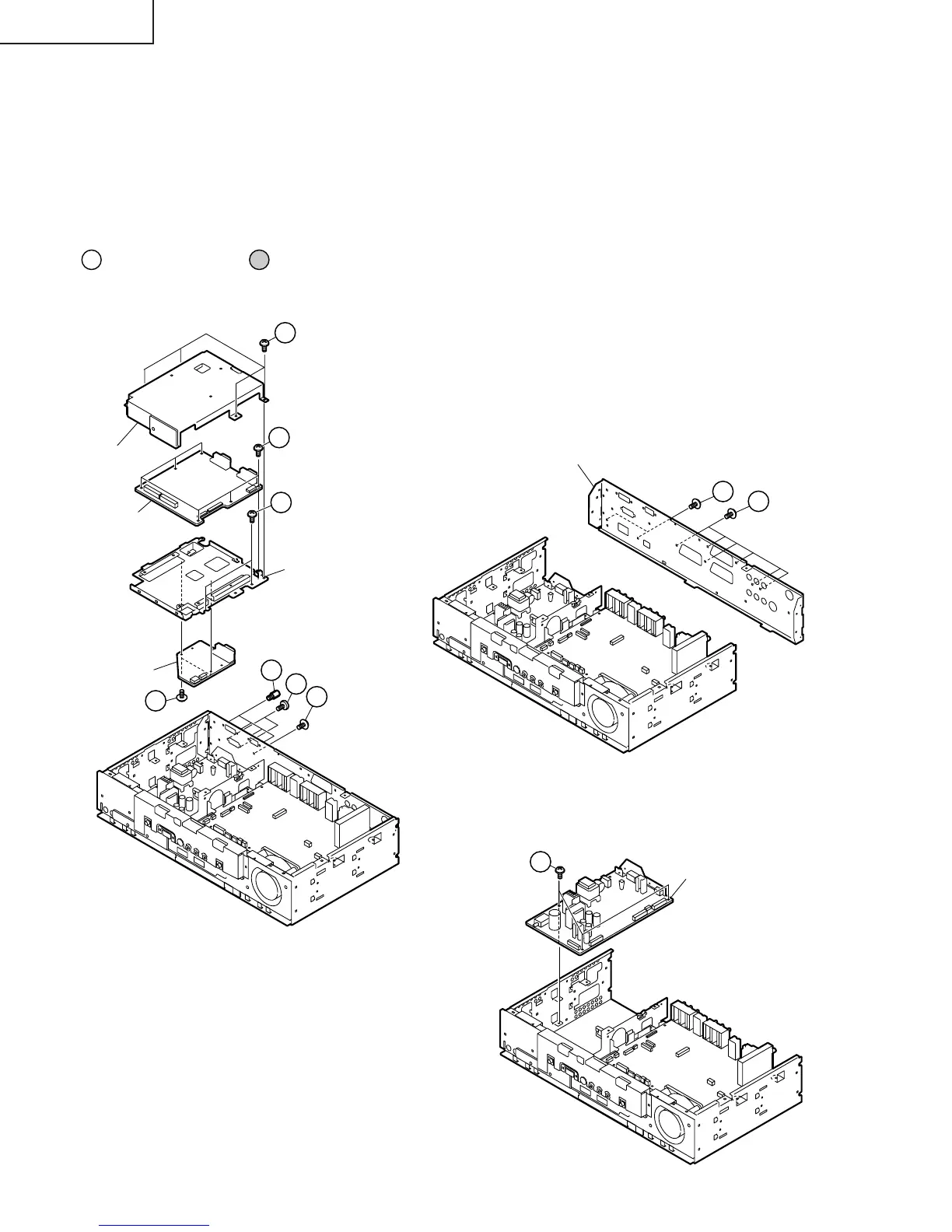

7. Remove the system/control terminal retaining:
7-1. Remove the four hex head screws securing the terminals of the system and control cables (white).
7-2. Remove the two screws securing the terminal of the system cable (gray).
7-3. Remove the two rear chassis retaining screws.
8. Remove the PC I/F and SR units:
8-1. Remove the four PC I/F top shield retaining screws and remove the shield.
8-2. Remove the six PC I/F unit retaining screws and remove the unit.
8-3. Remove the two PC I/F bottom shield retaining screws and remove the angle.
8-4. Remove the two SR unit retaining screws and remove the SR unit.
9. Remove the 8 rear cabinet retaining screws and remove the rear chassis.
(
9
: XBPSN30P06000,
9
: XEBSF30P08000)
10. Remove the three power supply board retaining screws and remove the power supply board.
8-1
8-2
8-3
8-4
7-1
7-3
7-2
PC I/F unit shield
PC I/F unit
PC I/F unit angle
SR unit
Rear chassis
9-2
9-1
10
Power unit
