LC-30HV4E

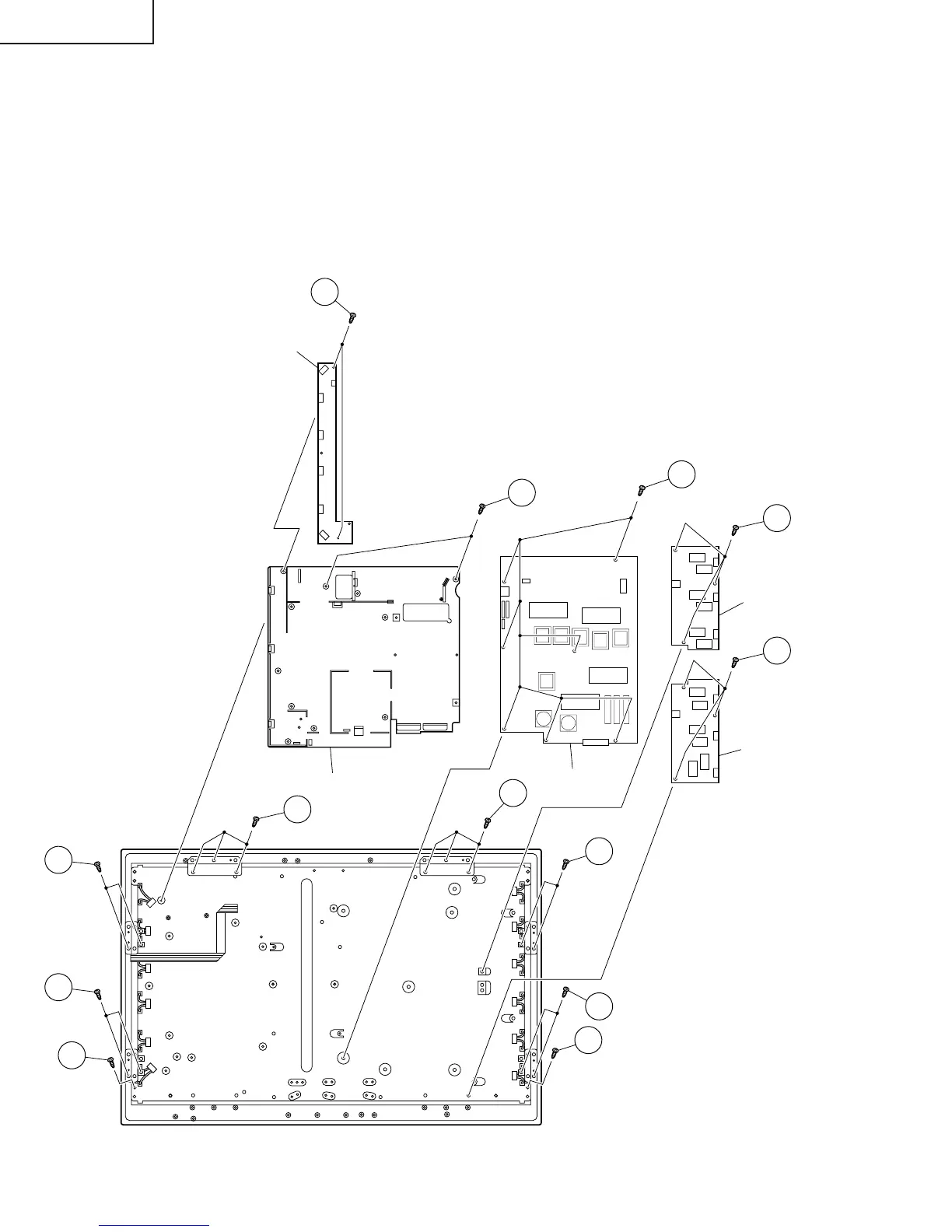

15.Take off the inverter GND PWB by removing 2 screws.
16.Take off the power PWB by removing 7 screws. Remove insulation sheet.
17.Take off the inverter-1 PWB by removing 3 screws.
18.Take off the inverter-2 PWB by removing 3 screws
19.Take off the 4 reinforcement angles by removing 2 screws from each angle.
20.Take off the 2 reinforcement angles by removing 3 screws from each angle.
21.Take off the chassis frame by removing 2 screws.
22.Take off the LCD panel assembly by removing 2 screws.
19
19
20
20
19
19
18
17
16
15
Power Unit
Inverter GND
PWB
Inverter-1 PWB
Inverter-2 PWB
Chassis Frame
