19
LC-30HV4E

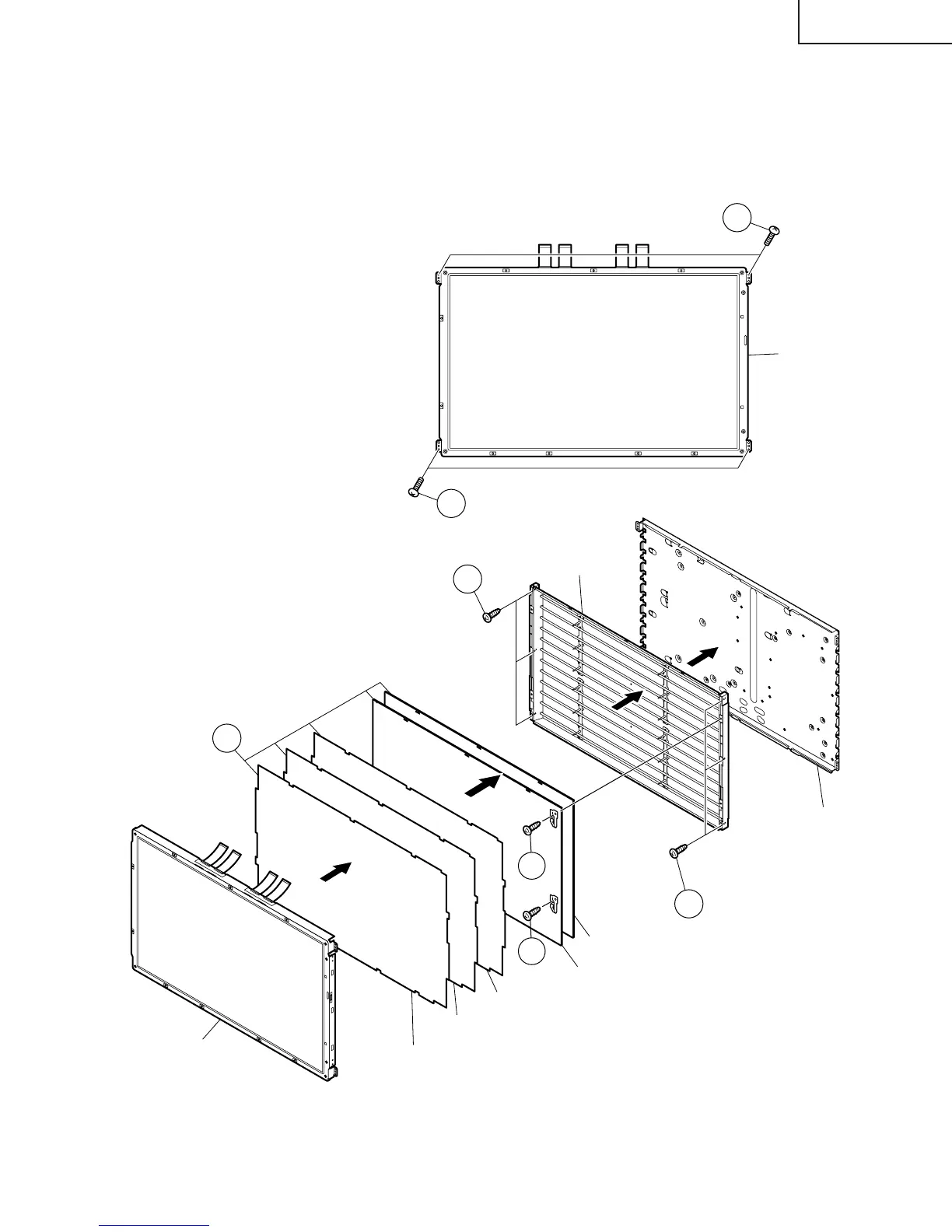

23.Take off the LCD panel with panel shield by removing 4 screws.
24.Take off D-BEF sheet, prism sheet and diffusion sheet. Take off ITO sheet and diffusion panel by removing 2
screws.
25.Take off the panel shield by removing 6 screws.
Lamp
LCD Panel
Prism Sheet
ITO Sheet
D-BEF Sheet
25
25
24
Diffusion Sheet
LCD Panel
23
23
Panel Shield
Diffusion Panel
24
24
