CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-32A33T)
1. REMOVING OF STAND ASS’Y AND REAR CABINET

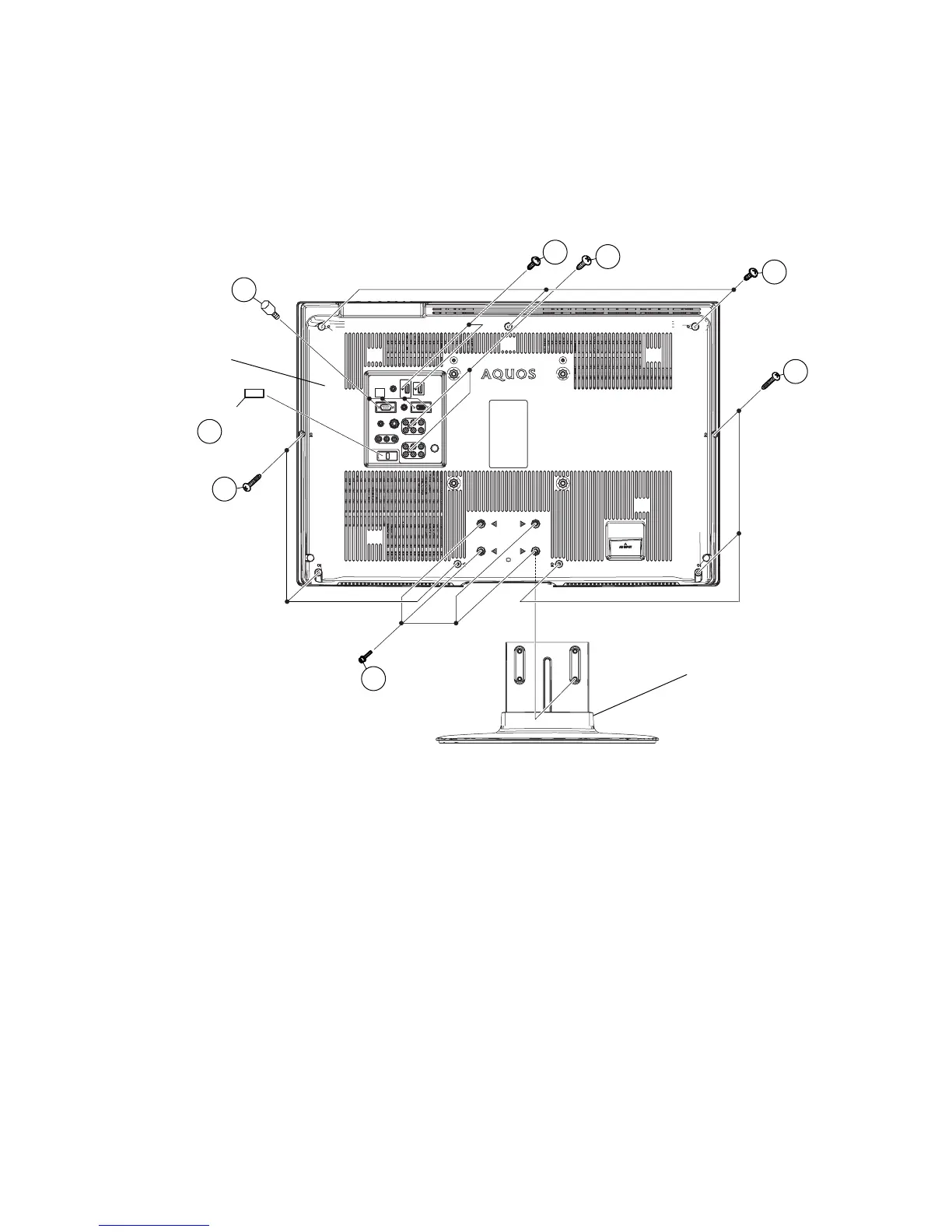

1. Remove the 4 screws [1] and detach the Stand Ass’y.
2. Detach the Bass Cover [2].
3. Remove the 2 screws [3], 2 screws [4], 4 shafts [5], 3 screws [6], 6 screws [7] and detach the Rear Cabinet.
Stand Ass'y
Rear Cabinet
Bass Cover
1
3
4
5
6
7
7
2
