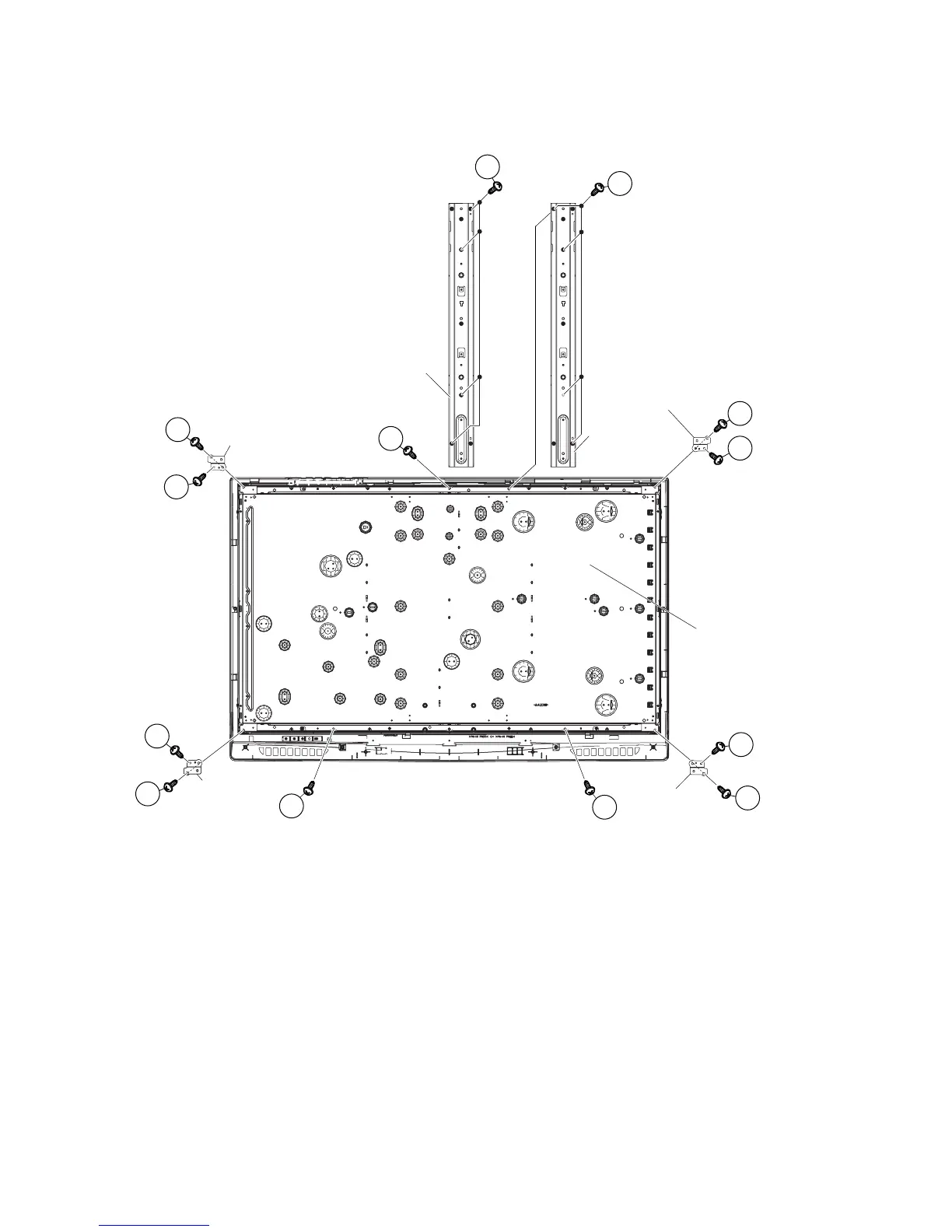

5. REMOVING OF CENTER ANGLE AND LCD ANGLE-A/B
1. Remove the 8 screws [1] and detach the Center Angle.
2. Remove the 7 screws [2], 4 screws [3] and detach the LCD Angle-A/B.
3. Detach the LCD Panel Module.
LCD Angle-B
3
3
1
3
2
2
2
3
2
2
2
1
Center Angle
LCD Angle-A
LCD Angle-A
LCD Angle-B
Center Angle
2
LCD Panel Module
