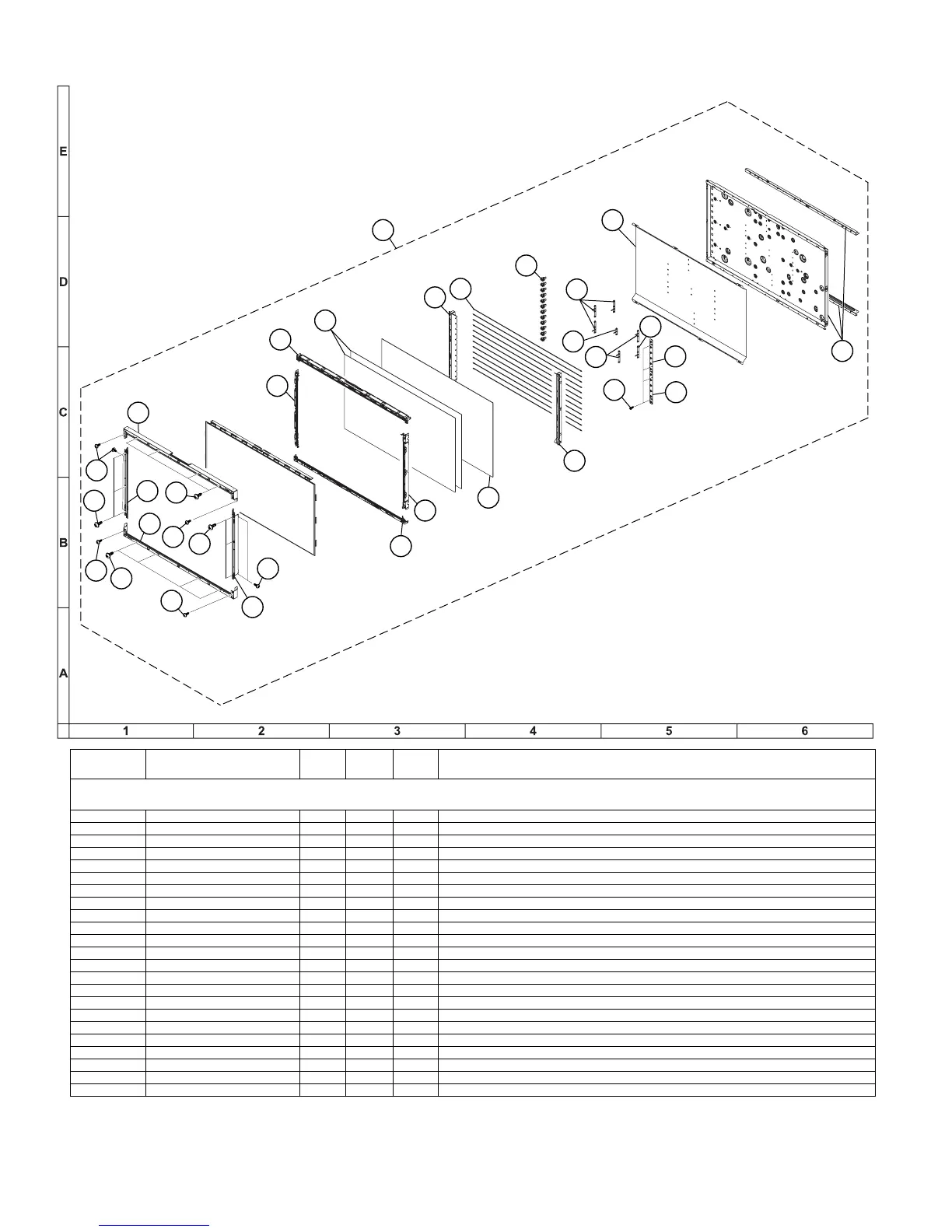

[7] LCD PANEL UNIT (LC-37A33T)
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[7] LCD PANEL UNIT (LC-37A33T)
3 R1LK370T3GW20W DR J 37"LCD Panel Module Unit
3-1 CANGKB426WJ02 BA J Bezel Ass'y Top
3-2 CANGKB426WJ01 AZ J Bezel Ass'y Bottom
3-3 CANGK4052TP01 AL J Bezel Ass'y L/R, x2
3-4 CHLDZA926WJ01 AP J P Chassis Ass'y Top
3-5 CHLDZA927WJ01 AP J P Chassis Ass'y Bottom
3-6 CHLDZA980WJ01 AL J P Chassis Ass'y L
3-7 CHLDZA981WJ01 AL J P Chassis Ass'y R
3-8 PSHEPA585WJZZ AT J Diffusion Sheet, x2
3-9 PSLDK3004TPZZ AY J Diffusion Plate
3-10 LHLDZA921WJKZ AL J Lamp Holder L
3-11 LHLDZA920WJKZ AN J Lamp Holder R
3-12 RLMP-0664TPZZ AQ J Lamp Unit, x12
3-13 QSOCFA003WJZZ AD J Lamp Socket, x12
3-14 RUNTK3925TPZZ AP J GND Unit (Top)
3-15 RUNTK3926TPZZ AP J GND Unit (Bottom)
3-16 LHLDZA925WJKZ AC J Lamp Clip A, x6
3-17 LHLDZA924WJKZ AB J Lamp Clip B
3-18 PMIR-A143WJZZ AW J Mirror Sheet
3-19 CCHSMA423WJ02 BE J BL Chassis Ass'y
3-20 XHPS730P06KS0 AB J Screw (GND Unit), x4
3-21 LX-HZA039WJF7 AB J Screw (Bezel/BL Chassis Fix), x12
3-22 LX-EZA028WJF9 AB J Screw (Bezel/P Chassis Fix), x6
3
3-1
3-4
3-6
3-7
3-8
3-10
3-11
3-12
3-13
3-15
3-20
3-16
3-16
3-16
3-21
3-22
3-22
3-22
3-22
3-22
3-21
3-21
3-21
3-17
3-14
3-3
3-3
3-2
3-5
3-9
3-18
3-19
