LC-32LE240M/340M(1stEdition)
3 – 2

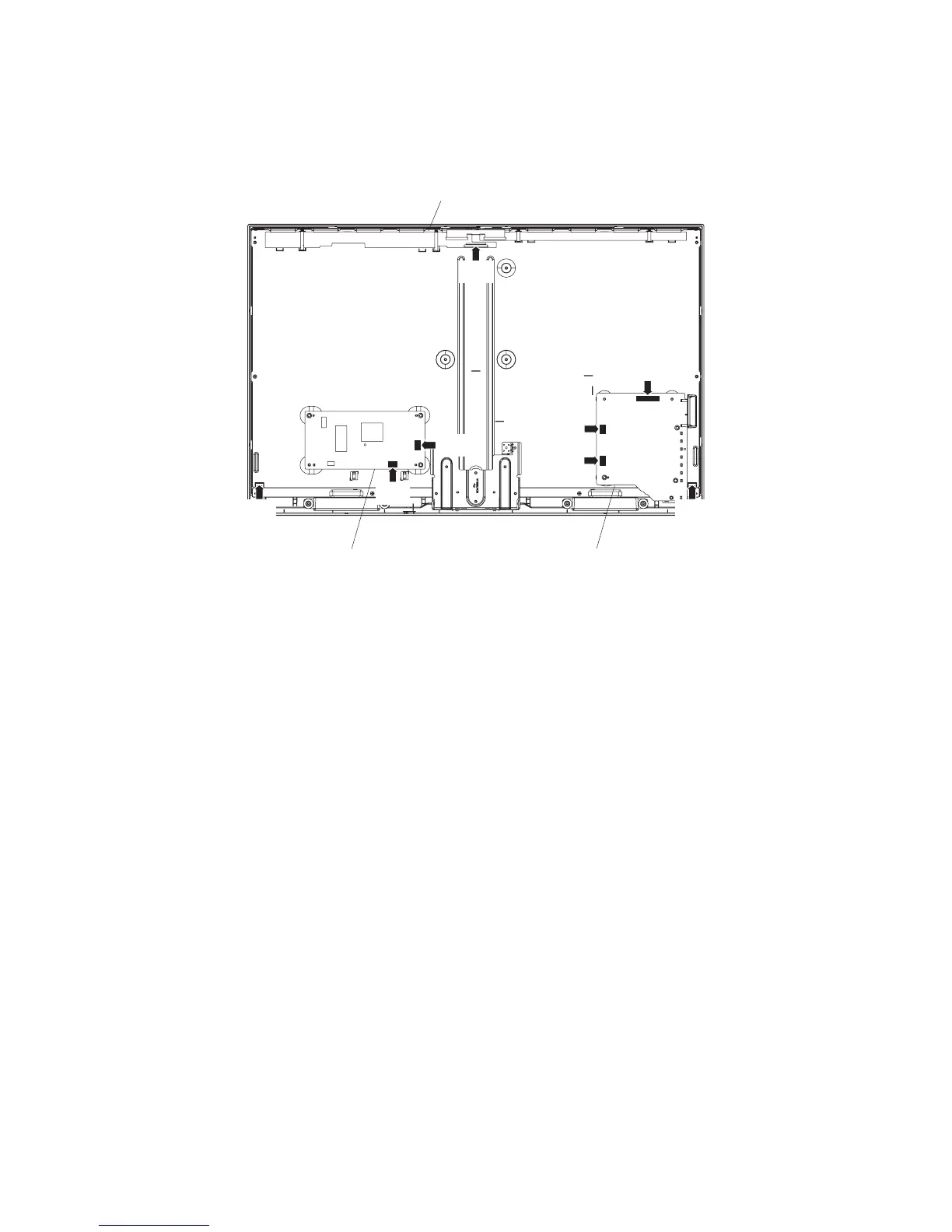

2. Removing of Connect
ors
1.
Disconnect the following connectors from MAIN Unit. (SP
, PD, L
W)
2.
Disconnect the following connecto
rs from POWER U
nit. (PD, LA)
3.
Disconnect the following connectors from Panel Ass’y
. (L
W
, LA1, LA2)
POWER
Unit
MAIN
Unit
Panel
Ass'y
[L
W]
[LA1]
[LA]
[LA2]
[PD]
[L
W]
[SP]
[PD]
9
11
Table of Contents
Default Chapter
1
Table of Contents
1
Service Manual
1
Important Service Safety Pre
2
Safety Precaution
2
Precautions for Using Lead-Free Solder
3
Outline
4
Major Service Parts
4
CHAPTER 1 Specifications
5
Chapter 2. Operation Manual
6
Operation Manual
6
Part Names
6
TV (Front)
6
TV (Rear)
6
Remote Control Unit
7
Attaching the Stand
8
Chapter 3. Removing of Major Parts
9
Rear Cabinet Ass'y
9
Removing of Major Parts
9
Stand Base
9
Removing of Connectors
10
Removing of the Bottom Bracket, MAIN Unit, POWER Unit and Speaker-L/R
11
Removing of the Chassis Ass’y and LCD Panel Unit
12
Removing LCD Panel Unit
13
Adjustment Procedure
14
Entering and Cancel the Adjustment Process Mode
14
Remote Controller Key Operation and Description of Display in Adjustment Process Mode
14
Software Upgrading
14
Analog PC Edid
15
Edid Data Input
15
HDMI Edid
15
Adjustment Mode
16
Adjustment Procedure
16
Chapter 4 . Adjustment
16
Component 15K 50Hz Signal Adjustment (COMP-SD)
16
Picture Adjustment
16
Signal Adjustment
16
PC (ANALOG RGB) Signal Adjustment (PC-RGB)
17
White Balance Adjustment
18
Factory Setting
19
Description
20
How It Works
20
USB Clone (Smart Loader)
20
How to Exit Public Mode
21
How to Start Public Mode
21
Public Mode Setting Procedure
21
Public Mode Setting Values
21
Maximum Volume
22
On Setting Items
22
Power on Fixed
22
Public Mode Menu
22
Panel Button
23
R/C Button
23
Volume Fixed
23
Volume Fixed Level
23
Blue Screen
24
Input Mode Fixed
24
Input Mode Start
24
On Screen Display
24
RC Path through
25
Chapter 5. Troubleshooting Table Troubleshooting Table
26
Chapter 6. Overall Wiring/Block Diagram
35
Overall Wiring Diagram
35
System Block Diagram
36
Chapter 7. Printed Wiring Board Assemblies
37
Main Unit
37
Chapter 8. Schematic Diagram
41
Description of Schematic Diagram
41
MAIN Unit
42
Main 7 (Flash)
48
Main 8 (Panel)
50
Main 10 (Power)
52
Main 11 (Key/Rc)
53
Lcd Color Television
55
Parts Guide
55
Cabinet and Mechanical Parts
63
LCD Panel
65
Supplied Accessories
67
Packing Parts (Not Replacement Item)
68
