Sharp LC-32LE340M User Manual

LC-32LE240M/340M(1stEdition)
8 – 10
•MAIN Unit-8/11
A
C
B
D
E
F
G
I
H
12345678910111213141516171819
20 21 22
RXE_CLKP
RXE_D1N
RXE_D0N
RXE_D1P
RXE_D3N
RXE_D0P
RXE_CLKN
RXE_D2N
RXE_D3P
RXE_D2P
P3801
NA915WJ
1
GND
2
VCC
3
VCC
4
VCC
5
VCC
6
GND
7
GND
8
GND
9
GND
10
SELLVDS
11
NC(OS_EN)
12
NC/TCON_WP
13
NC/BIST
14
NC/SDA
15
NC/SCL
16
GND
17
RIN3+
18
RIN3-
19
GND
20
CLKN+
21
CLKN-
22
GND
23
RIN2+
24
RIN2-
25
GND
26
RIN1+
27
RIN1-
28
GND
29
RIN0+
30
RIN0-
31
GND
32
GND
@pinCo
@pinCo
PNL+12V
TL3806
TL3804
TL3805
C3801
0.1u
CZB
R3802
10K
D+3.3V
TCON_WP
HC2G66DP
1
2
3
4
GND
5
6
7
8
VCC
I2C_CLK
I2C_DAT
TO MAIN10(POWER)
TO MAIN5(CPU)

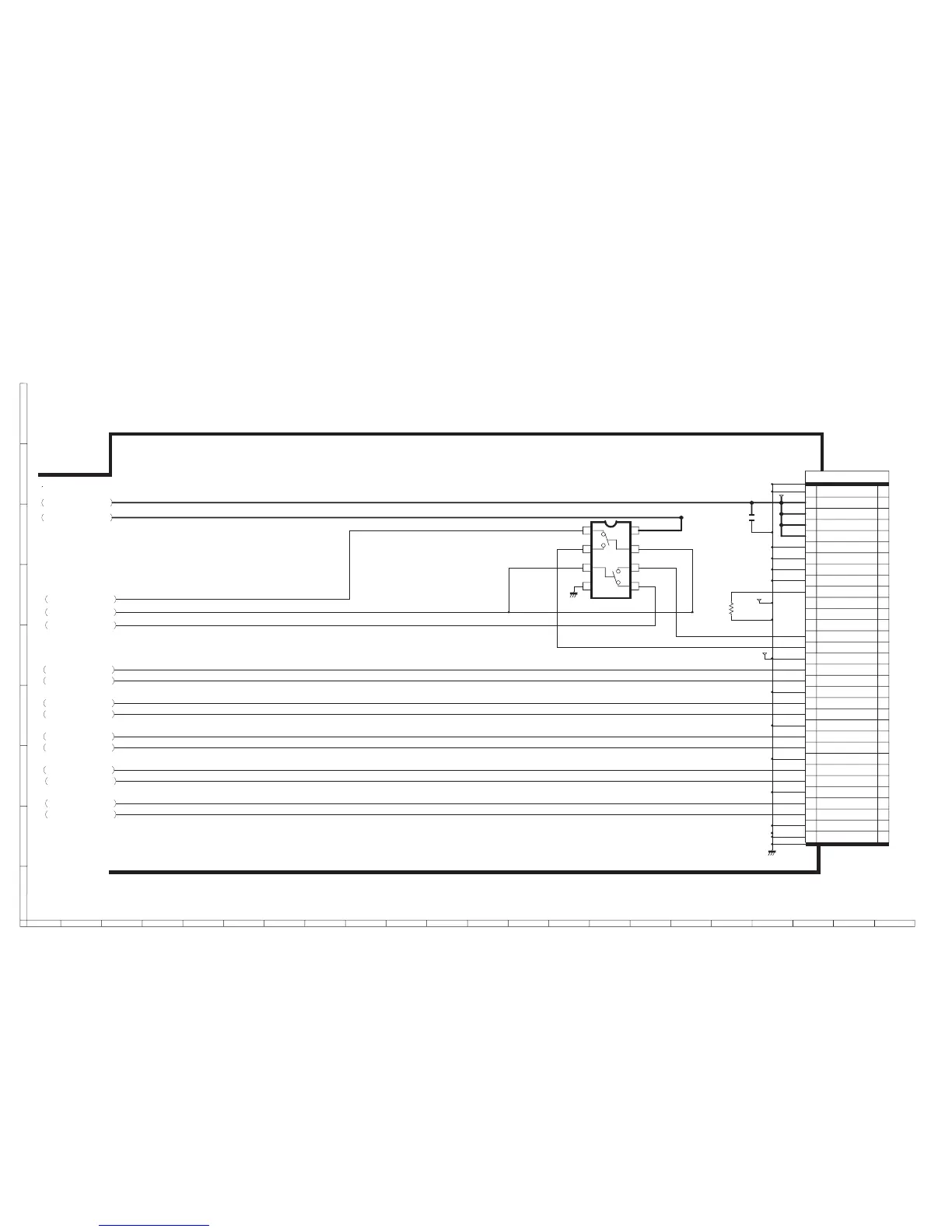

MAIN8 (PANEL)
*IC3801
