Sharp LC-32LE340M - Removing Main Units and Speaker Assembly

LC-32LE240M/340M(1stEdition)
3 – 3

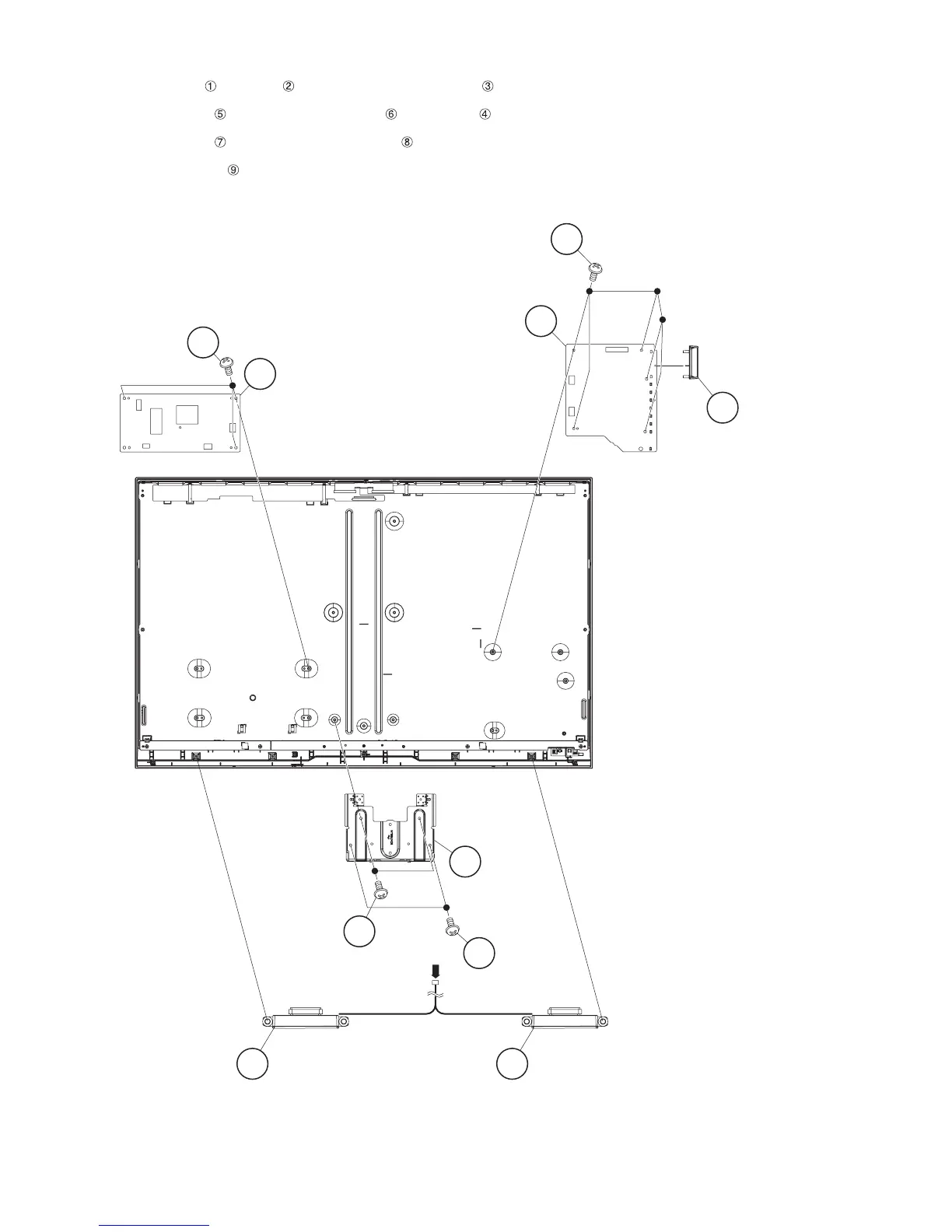

3. Removing of the Bottom Bracket, MAIN Unit, POWER Unit and Speaker-L/R
1. Remove the 1 screw , 2 screws and detach the Bottom Bracket .
2. Remove the 5 screws and detach the MAIN Unit , Side Cover .
3. Remove the 3 screws and detach the POWER Unit .
4. Detach the Speaker-L/R .
9Speaker-R 9Speaker-L
6MAIN Unit
3
2
1
Bottom
Bracket
4 Side Cover
8
7
POWER Unit
[SP]
5
