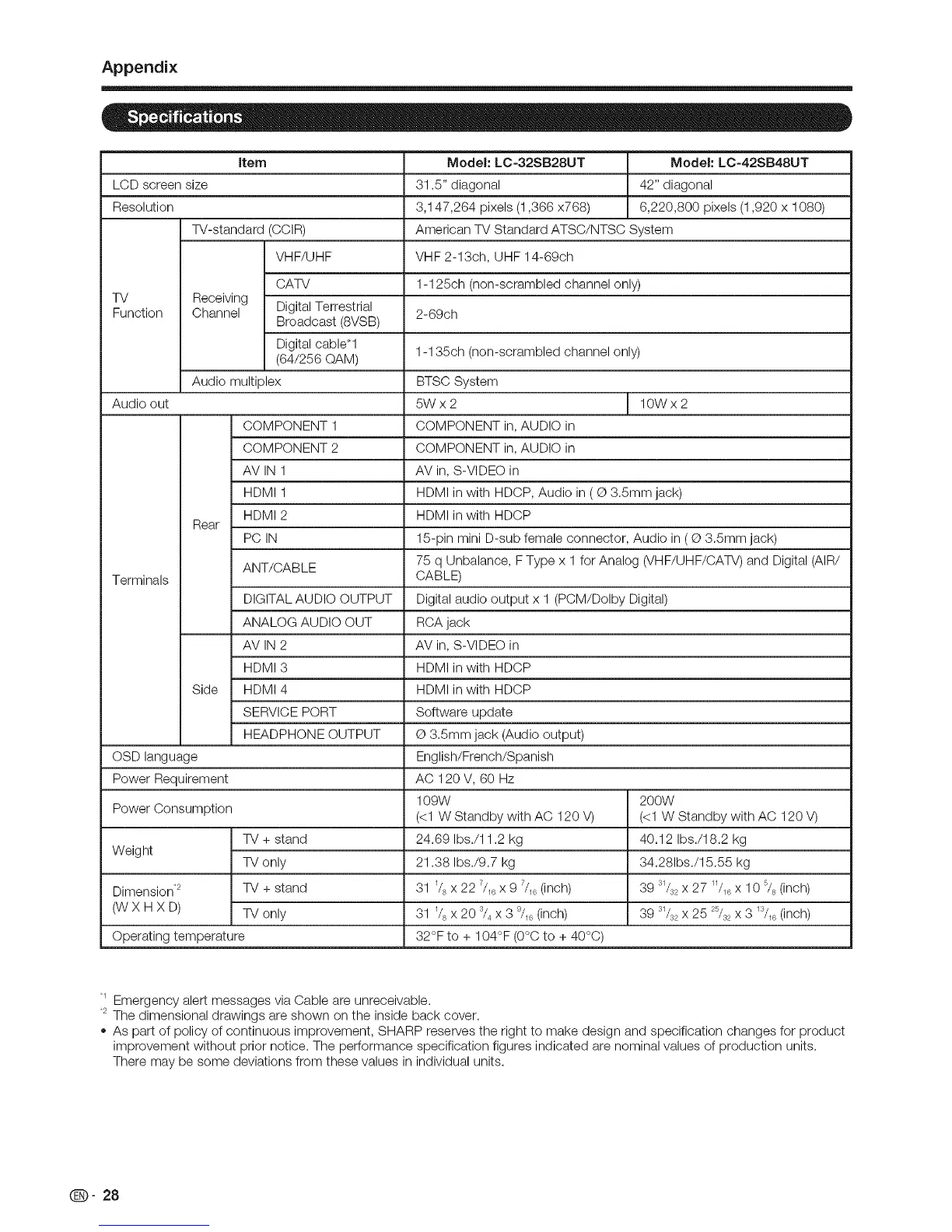

Appendix
Item Model: LC-32SB28UT Model: LC-42SB48UT
LCD screen size 31.5" diagonal 42" diagonal
Resolution 3,147,264 pixels (1,366 x768) 6,220,800 pixels (1,920 x 1080)
W-standard (CCIR) American TV Standard ATSC/NTSC System
VHF/UHF VHF 2-13ch, UHF 14-69ch
CATV 1-125ch (non-scrambled channel only)
TV Receiving
Function Channel Digital Terrestrial 2-69ch
Broadcast (8VSB)
Digital cable*l
(64/256 QAM) 1-135ch (non-scrambled channel only)
Audio multiplex BTSC System
Audio out 5W x 2 10W x 2
COMPONENT 1 COMPONENT in, AUDIO in
COMPONENT 2 COMPONENT in, AUDIO in
AV IN 1 AV in, S-VIDEO in
HDMI 1 HDMI in with HDCP, Audio in ( @3.5mm jack)
HDMI 2 HDMI in with HDCP
Rear
PC IN 15-pin mini D-sub female connector, Audio in ( @3.5mm jack)
75 q Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/
ANT/CABLE
Terminals CABLE)
DIGITAL AUDIO OUTPUT Digital audio output x 1 (PCM/Dolby Digital)
ANALOG AUDIO OUT RCA jack
AV IN 2 AV in, S-VIDEO in
HDMI 3 HDMI in with HDCP
Side HDMI 4 HDMI in with HDCP
SERVICE PORT Software update
HEADPHONE OUTPUT @3.5mm jack (Audio output)
OSD language English/French/Spanish
Power Requirement AC 120 V, 60 Hz
109W 200W
Power Consumption (<1 W Standby with AC 120 V) (<1 W Standby with AC 120 V)
TV + stand 24.69 Ibs./11.2 kg 40.12 Ibs./18.2 kg
Weight
TV only 21.38 Ibs./9.7 kg 34.281bs./15.55 kg
Dimension _2 TV + stand 31 _/sx 22 7/_ x 9 7/_6(inch) 39 s_/32x 27 _/_ x 10 5/s(inch)
(W X H X D) TV only 31 _/sx 20 s/4x 3 9/_6(inch) 39 9_/s9x 25 25/s2x 3 _/_6(inch)
Operating temperature 32°F to + 104°F (0°C to + 40°C)
Emergency alert messages via Cable are unreceivable.
2 The dimensional drawings are shown on the inside back cover.
• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product
improvement without prior notice. The performance specification figures indicated are nominal values of production units.
There may be some deviations from these values in individual units.
Q- 28
