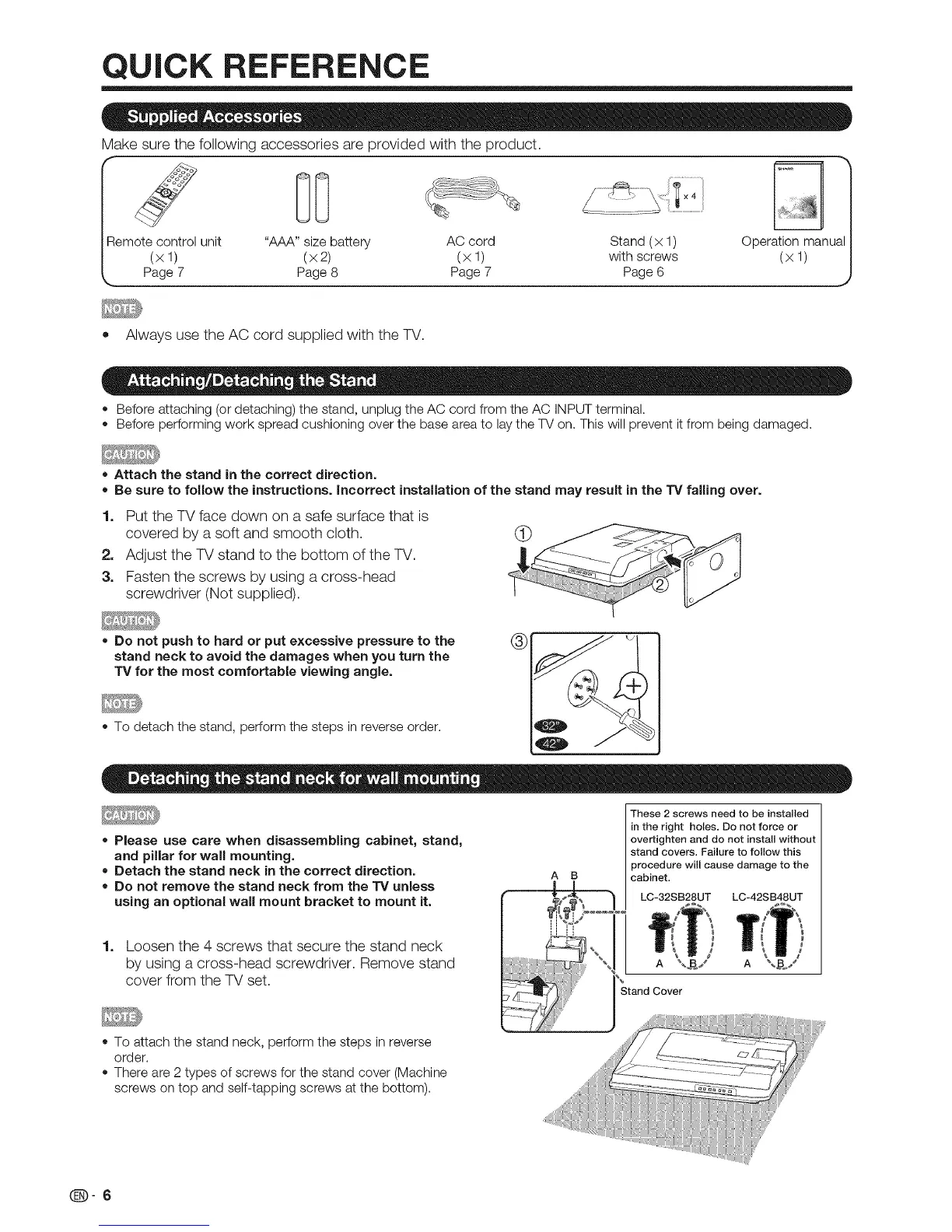

QUICK REFERENCE
Make sure the following accessories are provided with the product.
. .............
I Remote control unit "AAA" size battery AC cord Stand (x 1) Operation manual
| (x 1) (x 2) (x 1) with screws (x 1)
_,,___ Page 7 Page 8 Page 7 Page 6 _,
• Always use the AC cord supplied with the TV.
Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.
* Attach the stand inthe correct direction.
* Be sureto follow the instructions,incorrect installation of the stand may result inthe TV falling over.
1o Put the TV face down on a safe surface that is
covered by a soft and smooth cloth.
2, Adjust the TV stand to the bottom of the TV.
3, Fasten the screws by using a cross-head
screwdriver (Not supplied).
Do not push to hard or put excessive pressure to the
stand neck to avoid the damages when you turn the
TV for the most comfortable viewing angle.
To detach the stand, perform the steps in reverse order.
®
* Please use care when disassembling cabinet, stand,
A B
and pillar for wall mounting.
• Detach the stand neck in the correct direction.
Do not remove the stand neck from the TV unless
using an optional wall mount bracket to mount it.
These 2 screws need to be installed
in the right holes. Do not force or
overtighten and do not install without
stand covers. Failure to follow this
procedure wilt cause damage to the
cabinet.
LC-32SB28UT LC-42SB48UT
1. Loosen the 4 screws that secure the stand neck
by using a cross-head screwdriver. Remove stand
cover from the TV set.
To attach the stand neck, perform the steps in reverse
order.
There are 2 types of screws for the stand cover (Machine
screws on top and self-tapping screws at the bottom).
Q-6
To Next Page
