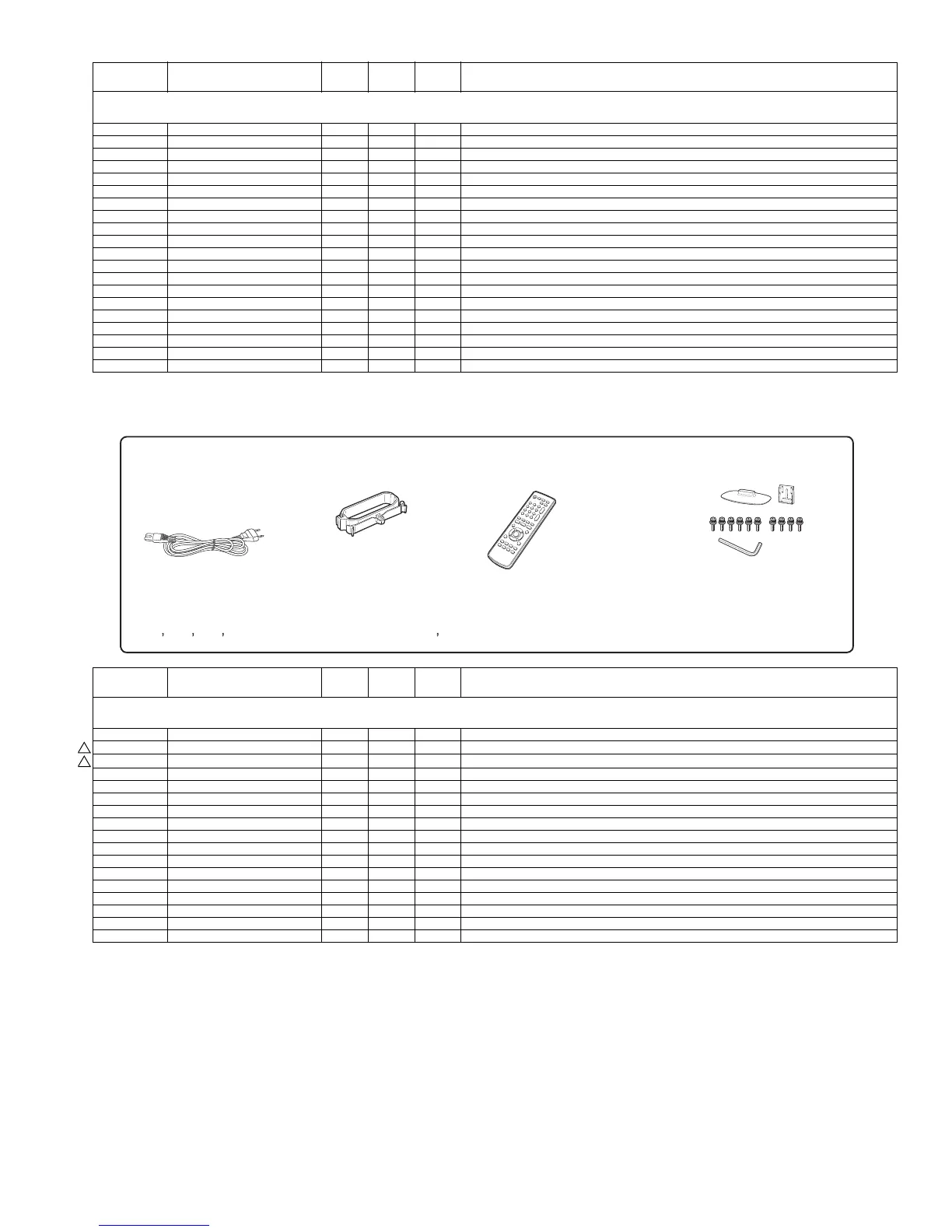

Sharp LC-37D44E Service Manual

LC-37D44E/S/RU-BK/GY
23
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[9] SUPPLIED ACCESSORIES
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[8] LCD MODULE ASSEMBLY
1 CCHSMA423WJ01 BP J Back Light Chassis Ass'y
2 CANGK4052TP01 AL J Bezel Ass'y, x2 (Left/Right)
3 CANGKB426WJ01 AZ J Bezel Ass'y (Bottom)
4 CANGKB426WJ02 BA J Bezel Ass'y (Top)
5 CHLDZA926WJ01 AP J Panel Chassis Ass'y (Bottom)
6 CHLDZA927WJ01 AP J Panel Chassis Ass'y (Top)
7 CHLDZA980WJ01 AL J Panel Chassis Ass'y (Left)
8 CHLDZA981WJ01 AL J Panel Chassis Ass'y (Right)
9 LHLDZA920WJKZ AN J Lamp Holder (R)
10 LHLDZA921WJKZ AL J Lamp Holder (L)
11 LX-BZ2312TPZZ AB J Screw, x8 (M3*3.2 Bezel)
12 LX-EZA028WJF9 AB J Screw, x6 (M3*6 Panel Chassis)
13 LX-HZA042WJF8 AB J Screw, x12 (LCD Panel)
14 PSHEPA585WJZZ AT J Diffusion Sheet, x2
15 PSLDK3004TPZZ AY J Diffusion Plate
16 QSOCFA003WJZZ AD J Lamp Socket, x12
17 RLMP-0664TPZZ AQ J Lamp Unit, x12
18 RUNTK3925TPZZ AP J GND-PWB
19 RUNTK3926TPZZ AP J GND-PWB
20 XHPS730P08KS0 AB J Screw, x4 (GND PWB)
[9] SUPPLIED ACCESSORIES
X1 LHLDWA173WJKZ AE J Cable Clamp
!
X2 QACCKA004WJPZ AM J AC Cord 2Pin (for Europe without U.K. and Ireland.)
!
X2 QACCBA054WJPZ AQ P AC Cord 3Pin (for U.K. and Ireland)
X3 RRMCGA591WJSA AN S Remote Control unit (LC-37D44E/S/RU-BK)
X3 RRMCGA591WJSB AN S Remote Control unit (LC-37D44E/S/RU-GY)
X4 TiNS-D792WJZZ AM N P Operation Manual (ENGLISH...) (LC-37D44E/K/S)
X5 TINS-D793WJZZ AN N P Operation Manual (SWEDISH...) (LC-37D44S)
X6 TiNS-D794WJZZ AP N P Operation Manual (POLISH...) (LC-37D44E)
X7 TINS-D795WJZZ AE N P Operation Manual (RUSSIAN) (LC-37D44RU)
X8 TGAN-A801WJZZ AB P Warranty Card (U.K and Ireland)
X9 TGAN-A802WJZZ AC P AQUOS Care Plan (U.K and Ireland)
X10 TGAN-A077WJZZ AE J Warranty Card (Russian)
X11 Not Available - - "AA" Size Battery
X12 CDAi-A443WJ02 BH N P Stand Ass'y (LC-37D44E/S/RU-BK)
X12 CDAI-A443WJ05 BL N P Stand Ass'y (LC-37D44E/S/RU-GY)
X12-1 Not Available - N - Tool for Stand
X13 TCAUZA355WJZZ AB N P EX Sheet
Remote control unit
AC cord
“AA” size battery
Cable clamp
Operation manual Warranty Card
Stand unit
Product shape varies
in some countries.
X1
X2
X3 X12
X12-1
X4
X11
EX Sheet
X13
X5 X6 X7
X8 X10
AQUOS Care Plan
X9
