Sharp LC-37D44E Service Manual

LC-37D44E/S/RU-BK/GY
2 – 5

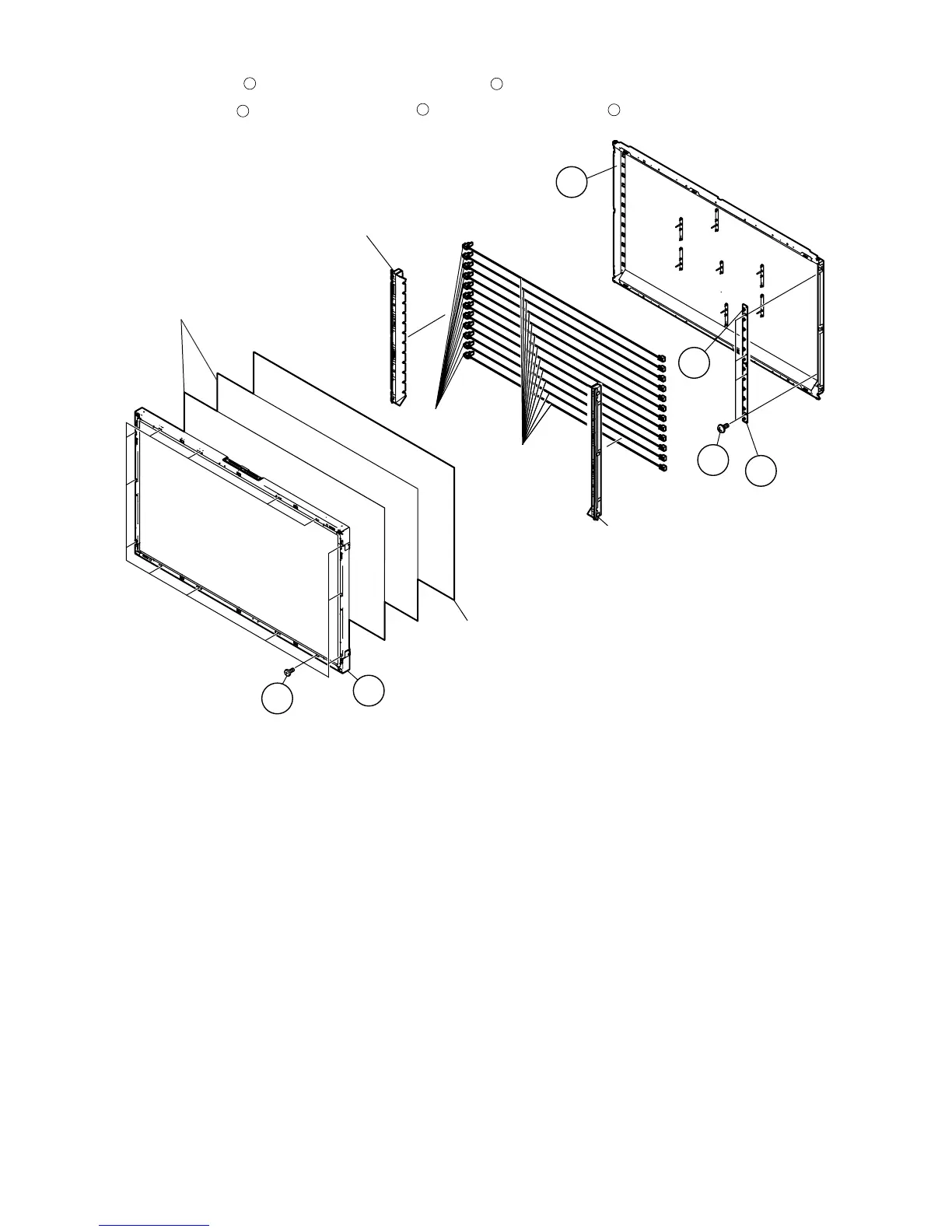

19.Remove the 14 lock screws and detach the LCD Panel Module Ass’y .
20.Remove the 4 lock screws and detach the 2 GND-PWB from Back Light Chassis Ass’y .
45
46
47
48
49
45
46
47
48
48
49
Diffusion Sheet
Diffusion Plate
LCD Panel Module Ass'y
Lamp Holder R
GND-PWB
GND-
PWB
Lamp Unit
Lamp Socket
Lamp Holder L
Back Light Chassis Ass'y
