LC-37D44E/S/RU-BK/GY
1 – 3

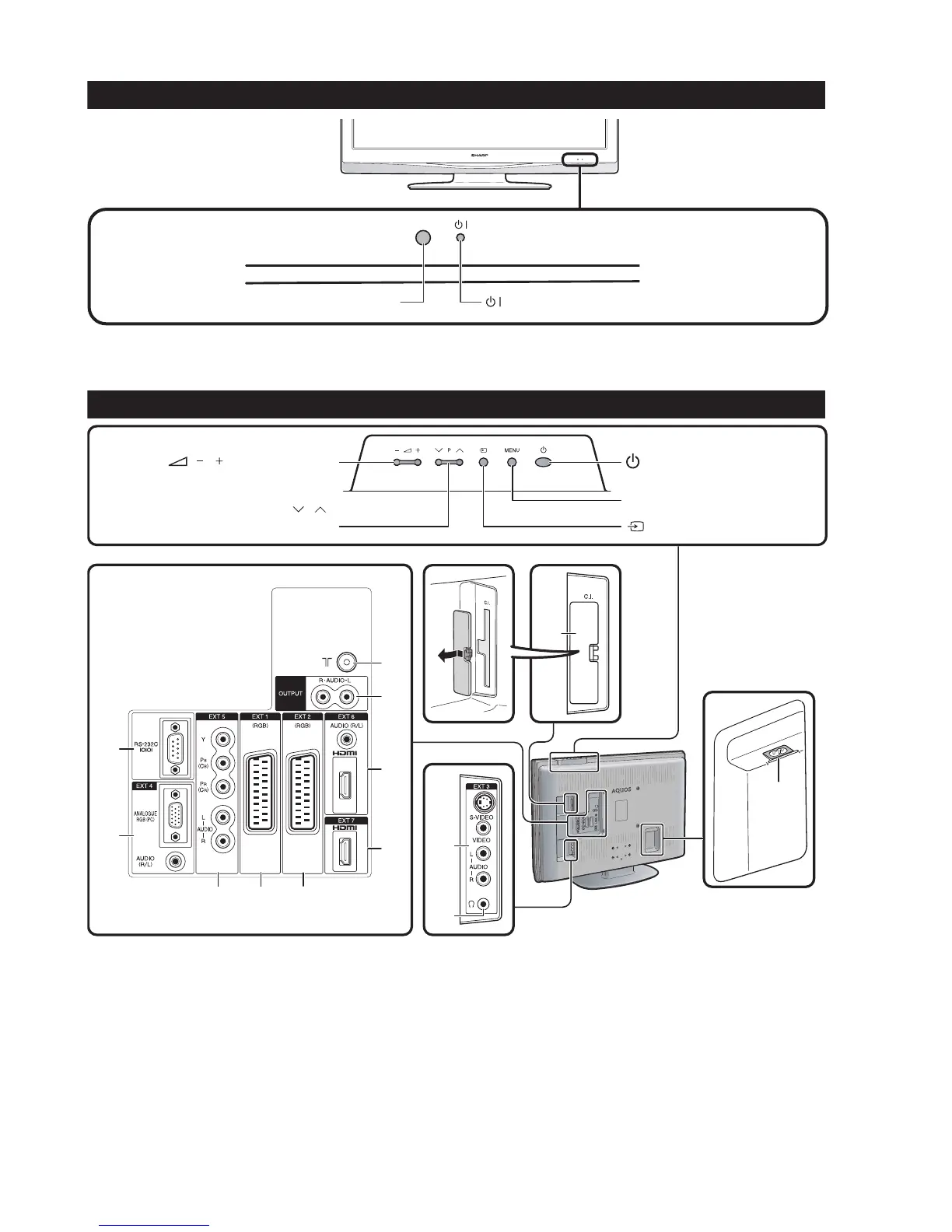

TV (Front view)
TV (Rear view)
10
1
2
6
7
8
9
3
4 5
13
11
12
NOTE
• Only if you use an active terrestrial antenna, select “On (5V)” under “Supply Voltage”.
WARNING:
Make sure that the volume is turned
down before using or connecting
earphones and headphones.
Listen to audio at moderate levels.
Excessive sound pressure from
earphones and headphones can
cause hearing loss.
Remote control sensor
(Power button)
(Input Source) button
( / ) (Volume buttons)
P (/)
(Programme [channel] buttons)
MENU button
1 RS-232C terminal
2 EXT 4 (ANALOGUE RGB/AUDIO)
terminals
3 EXT 5 (COMPONENT) terminals
4 EXT 1 (RGB) terminal
5 EXT 2 (RGB) terminal
6 Antenna input terminal
(DVB-T 5V=/80 mA)
7 OUTPUT (AUDIO) terminals
8 EXT 6 (HDMI/AUDIO) terminals
9 EXT 7 (HDMI) terminal
10 COMMON INTERFACE slot
11 EXT 3 terminals
12 Headphone jack
13 AC INPUT terminal
(Standby/On) indicator
