LC-42SB45U
12
CHAPTER 2. REMOVING OF MAJOR
PARTS
[1] REMOVING OF MAJOR PARTS

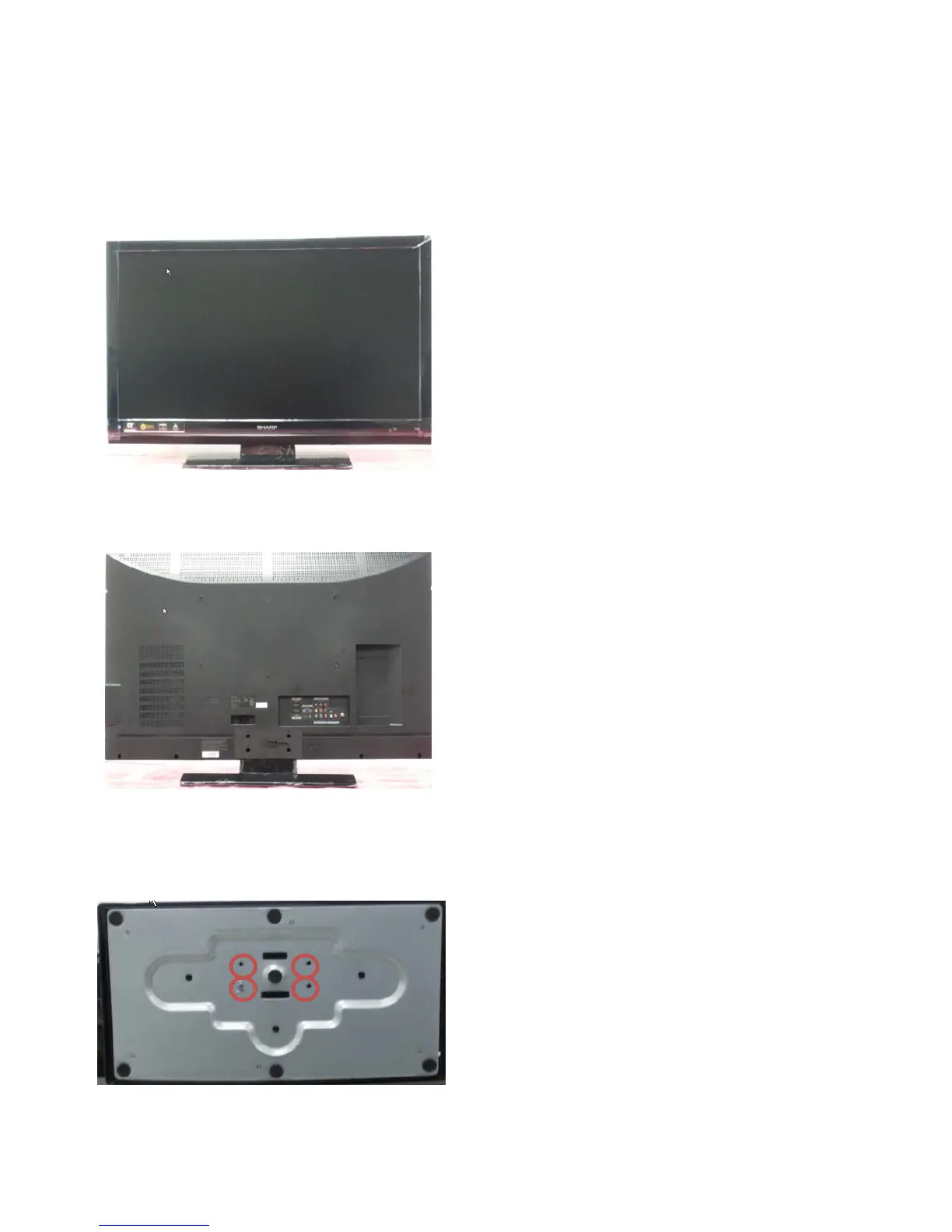

1．Assy/Panel removal
Note :Please put your mechine on soft material to avoid to scrape panel when disassembly
Front View
Fig.1
Back View
Fig.2
Step 1.Remove the base assy
A, Remove 4screws as fig 3 and put out the base.
Fig 3
B.Remove 4 screws as Fig 4 to detach the base stand.
To Next Page
