32
LC-45GD5U
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment DVI-I (digital)
XGA (1024 x 768)
60Hz
H,V SYNC
2 Auto adjustment Page 9/29
performance
Feed the 100% white 1/2 window pattern signal to DVI-I (digital) input.
Bring the cursor on [ËDVI DIGITAL ADJ] and press [ENTER].
[ËDVI DIGITAL ADJ FINISH] appears when finished.

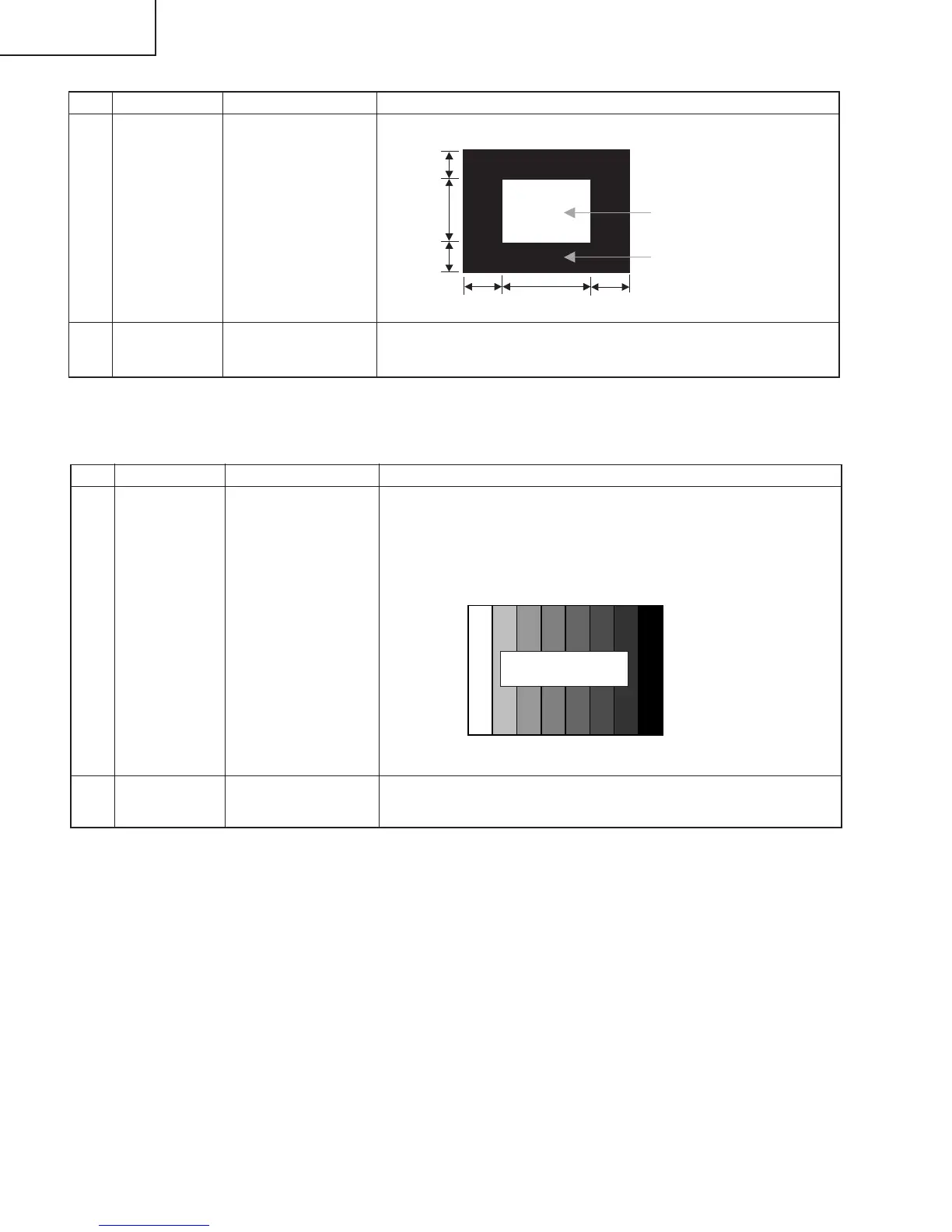

(7) DVI-I (digital) signal adjustment
100% White
0% Black
1/4
1/4
1/2
1/4
1/4
1/2
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment Recommended signal
generator:LT448
manufactured by
Leader Electronics
2 Auto adjustment Page 7/29
performance
•Generate 1080i/59, 94 (30sF) RGB digital output signals.
•Generate full color bar signals (100% saturation): 8 bars (black bar on the
right end), dynamic range of min. 16/max. 235.
•Send signals from the DVI terminal of the signal generator to HDMI input
via a DVI-HDMI conversion cable.
Bring the cursor on [ËHDMI ADJ] and press [ENTER].
[ËHDMI ADJ FINISH] appears when finished.
(8) HDMI signal adjustment
↑100% white ↑0% black
1080i
100% color bar signal
RGB digital
1080i/59, 94 (30sF)
RGB digital output
Colorsaturationlevel
100%
To Next Page
